Home > Products > LED Aluminum Tube Lights > DLC Approved Led T8 Tube Light Ballast Compatible 4ft 15W

DLC Approved Led T8 Tube Light Ballast Compatible 4ft 15W

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port shenzhen / hongkong
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	LM80 tested	Warranty(Years)	5
Input Voltage(V)	100-277vac	Lamp Power(W)	15
Lamp Luminous Flux(lm)	1500	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Pure White	Working Temperature(℃)	-25, +40
Working Lifetime(Hour)	50000	Lamp Body Material	PC
IP Rating	IP65	Certification	CE, SAA, UL
Place of Origin	China	Model Number	T8

Product Description

DLC ul cul approved led T8 tube ballast compatible 4ft 15W

Product Description

led T8 tube ballast compatible 4ft 15W advantages:

Product Features:

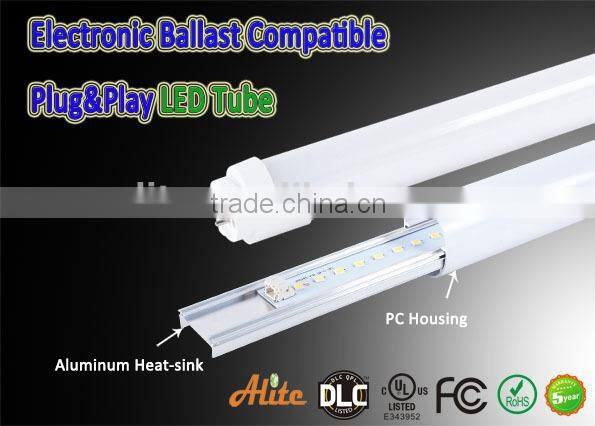

The Ballast Compatible Plug & Play LED tube using patented electrical circuit,can be compatible with Rapid Start, Instant Start ,dimming electronic ballast ; Can be Double-end Power and no rewire to directly replace conventional fluorescent; Due to double end Safety Switch , which prevent electrical shock during installation of LED tube into existing fluorescent fixtures, Compliant wit North America ,European and many countries' safety requirements.

Advantages:

1.Compatible with Rapid start, Instant start, dimming electronic ballasts etc., most of existing ballasts;

2.Direct replacement for traditional fluorescent tubes, no need to remove the starter & rewire;

3.Directly works well with line voltage 100-277VAC;

4.Work well with one piece or more tubes when driven by one ballast in a parallel circuit;

5.Approved by UL/cUL, FCC, RoHS etc;

6.5 years warranty;

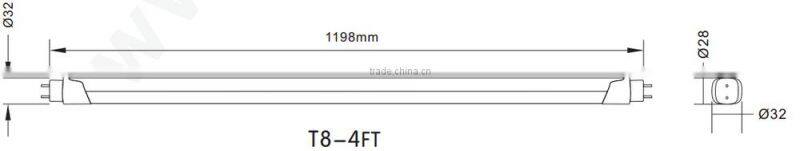

Specification of led T8 tube ballast compatible 4t 15W

product name	T8-4FT-15W-CPNA
Rated power	15W
input-voltage	100-277VAC
frequency	50-60HZ
power factor	>0.95
Color temp	3000-6500K
Lumens(typical)	1500LM
CRI	>82
SDCM	<5.0
heat sink	6063 Alunimum
operating temp	-25~+40
THD	<18%
cover	frosted
warranty	5years
socket	G13

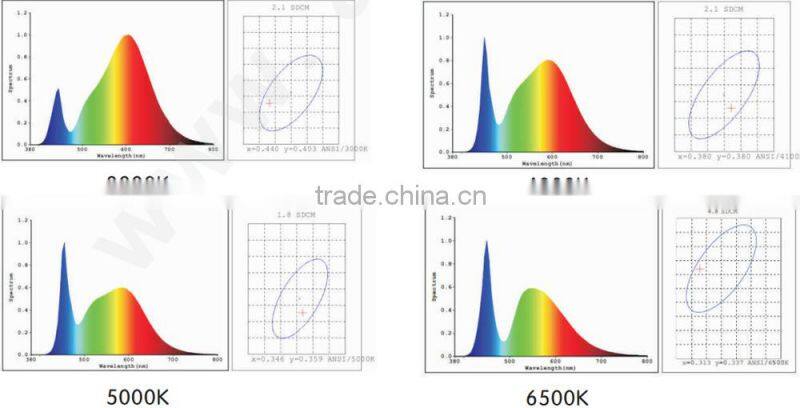

CCT and SDCM of led T8 tube ballast compatible 4ft 15W

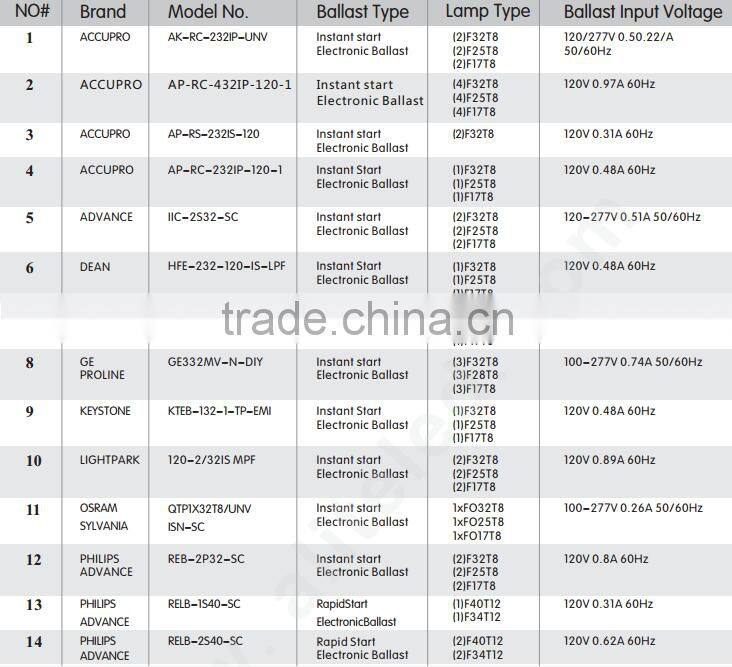

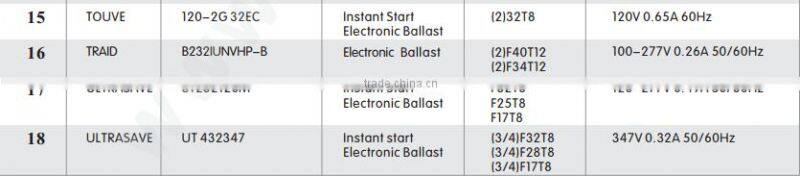

Typical compatible ballasts

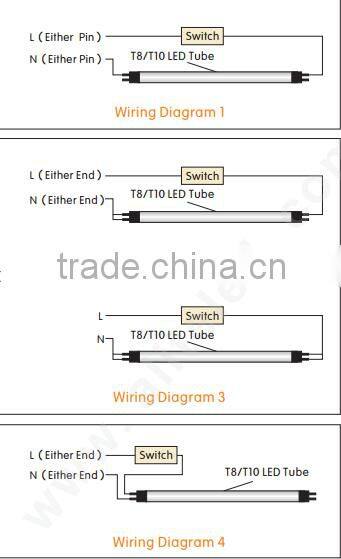

Wiring diagram of led T8 tube ballast compatible 4ft 15W

led T8 tube ballast compatible 4ft 15W Application

Home, hotel, private club, public place, traditional lights replace, all the indoor lighting use.

Warning:

DO NOT USE FOR SAFTY LAMP AND EMERGENCY LAMP

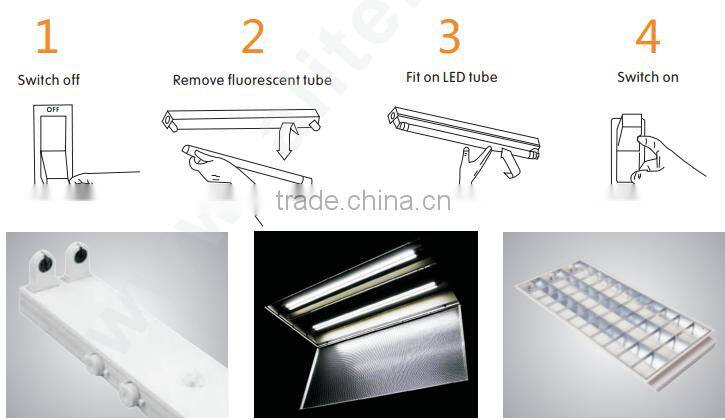

Installation

Packaging & Shipping

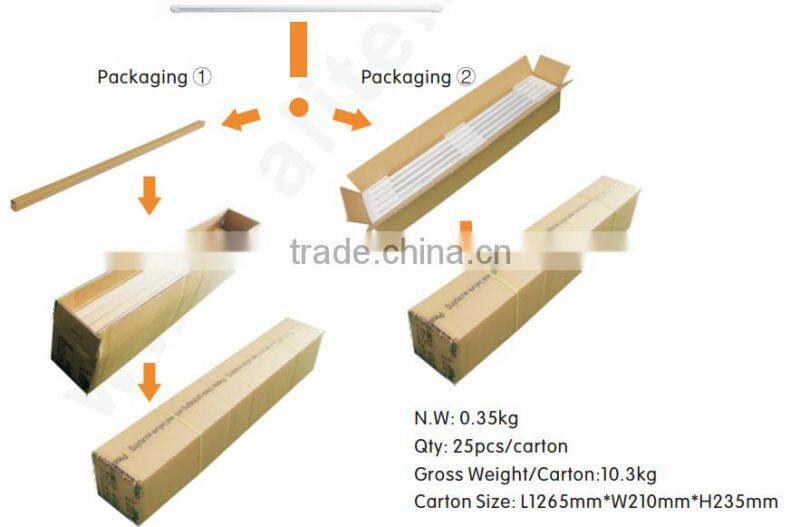

LED led T8 tube ballast compatible 4ft 15W package

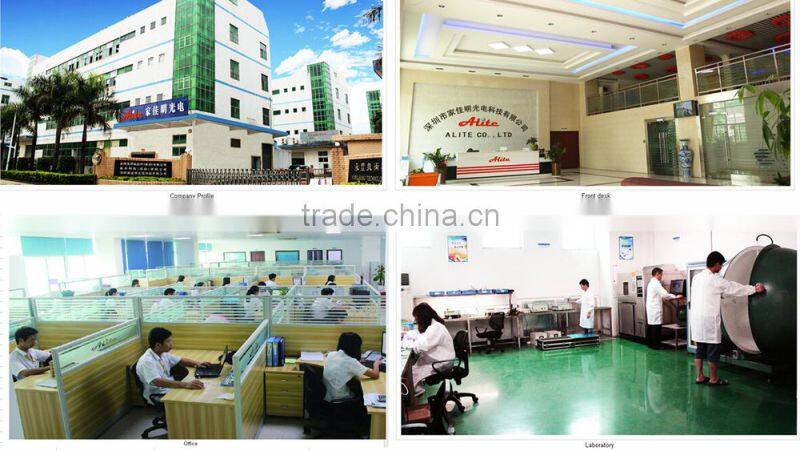

Aliteled Company profile

Shenzhen Alite Co.,Ltd is a professional manufacturer,which is specialized in the research, production and sales of led lights. We continuously provide excellent products, professional application solutions and service.

With an individual 4 floors building factory of total 5000 square meters, Alite has its own SMT Department, 4 sets of high-speed SMT machines and 2 sets of Reflow Soldering machines. And also own Hardware Department,9 sets of CNC machine and 2 sets of cutter machine. We have 5 sets of automatic assembly lines and 2 sets of multifunctional aging test machines. Which are assuring the great production capability and promptly delivery time.

We Insist on the concept of own independent research and sustainable development. We create a professional Research & Development Department to make high quality products, which follow the principle “Security, Stability,Prospective, Fashion”. Main products are LED Panel ,LED Tube, LED Spotlight, LED Bulb, LED PL lamps etc,with DLC,Energy Star,UL,CUL,PSE,SAA,ERP,FCC,CE,ROHS certifications.

Under the strict and responsible quality control department ,to follow the ISO9001:2008 rule, our products are in high quality ,widely exported to USA,Canada,Australia,Japan,Germany,Italy and over 200 overseas countries. Alite is not only a products factory but also an excellent LED lighting solution, ODM and OEM service supplier,who aim to build the long term and win-win cooperation!

LED lighting fair

Dear visitor, any question, please leave a massage to me, quikly answer will be provided to you!

Regards,

Amy
