Home > Products > Filling Machine --- Juice, Tea, Function Drink > PET Bottle 3-in-1 Hot Juice Filling Machine --- for Promotion

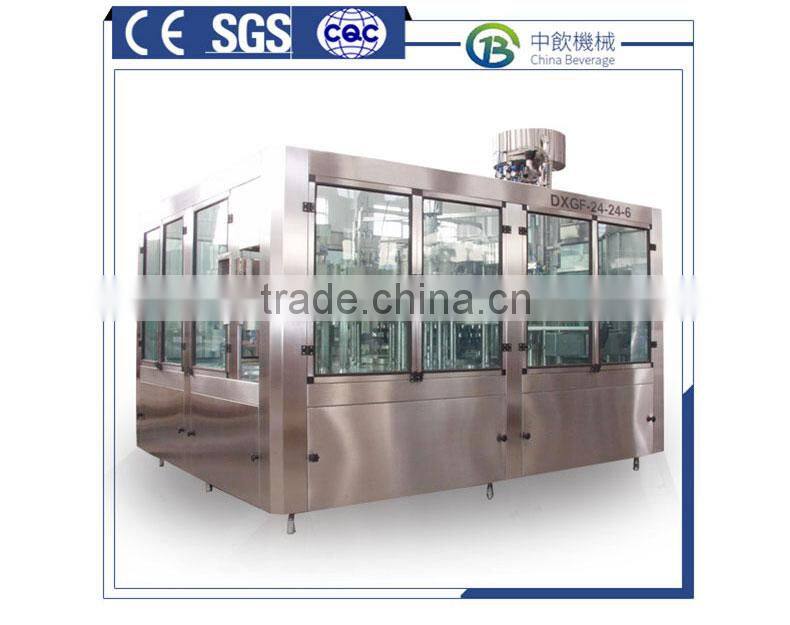

PET Bottle 3-in-1 Hot Juice Filling Machine --- for Promotion
US$ 15,000 - 95,000
/ Set
1 Set(Min. Order)
- Shanghai port for 3-in-1 hot juice filling machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Best Turn-Key Solution Automatic Fruit Juice Filling Machine
-
Best Turn-Key Solution Juice Filling Machine for Pet Water
-
Best Turn-Key Solution Automatic Juice Filling Machinery for Producing Drink
-
High Quality Automatic Liquid Filling Machine PET Bottle 0.25 to 2L
-
Zhongyin Cans Filling Line
-
Brewers Choice Carbonated Drinks 2016 Automatic Beverage Can Fillers Beer Filling&capping Line
Product Details
| Condition | New | Application | Food, Beverage, Medical, Other, Food, Beverage, Medical, Machinery & Hardware | |
| Packaging Type | Cans, Bottles, Barrel, Pouch | Packaging Material | Plastic, Paper, Metal, Glass, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380/220/410V | Power | 3 kw for main motor | |
| Place of Origin | Jiangsu, China | Brand Name | CHINA-BEVERAGE | |
| Model Number | 32-32-8 for 3-in-1 hot juice filling machine | Dimension(L*W*H) | 3430*2630*2970 mm | |
| Weight | 5500 kg for 3-in-1 hot juice filling machine | Certification | CE,ISO,BV,TUV | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
3-in-1 hot juice filling machine1. Capacity: 2500-25000 BPH
2. 3-in-1 hot juice filling machine
3. Material: 100% sus 304
PET Bottle 3-in-1 hot juice filling machine --- for promotion
Product Description
Basic information
1. It is used for juice, tea, energy drink and other hot filling liquid.

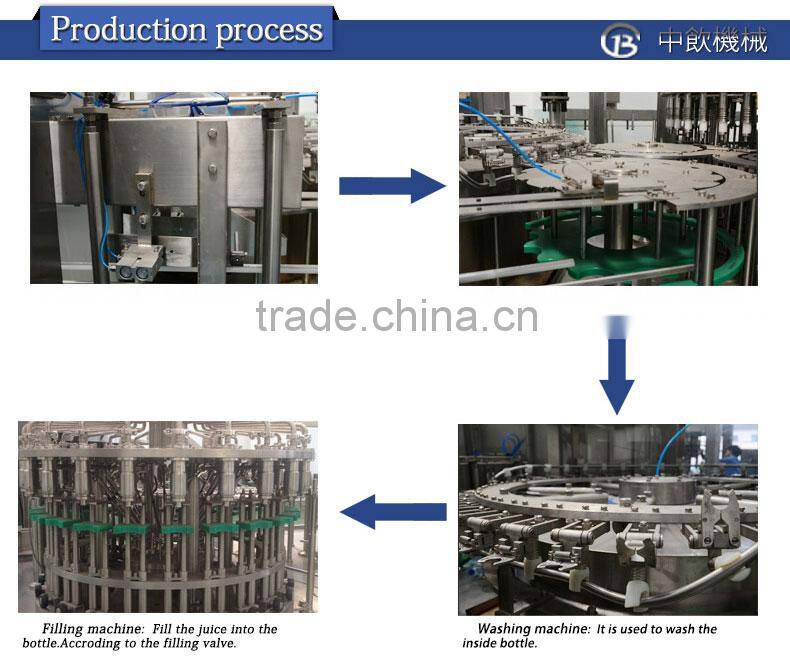

2. Washing/filling/capping 3 in 1 unit
3. Alarm system for over heat of liquid.
4. It will flow back to the tank when temperature can not reach the relevant temperature.
5. Capacity: 5000-24000 BPH for 500ml
Technical data
Model | 14-12-5 | 16-16-5 | 24-24-6 | 32-32-8 | 50-50-12 | 60-60-15 |
Capacity BPH/500ml | 5000 | 7000 | 10000 | 15000 | 18000 | 24000 |
Suitable bottle type mm | Diameter 50-96; Height: 165-310 | |||||
Air pressure | 0.7 Mpa | |||||
Gas consumption | 0.8 m3/min | |||||
Main motor power Kw | 1.5 | 2.2 | 2.2 | 3 | 5.5 | 7.5 |
Machine size mm | 2260*1610*2750 | 2850*2150*2750 | 3130*2400*2970 | 3430*2630*2970 | 5000*3770*2750 | 5300*3950*2970 |
Machine weight Kg | 2000 | 4200 | 5000 | 5500 | 7000 | 8500 |
PET Bottle 3-in-1 hot juice filling machine --- for promotion
PET Bottle 3-in-1 hot juice filling machine --- for promotion
