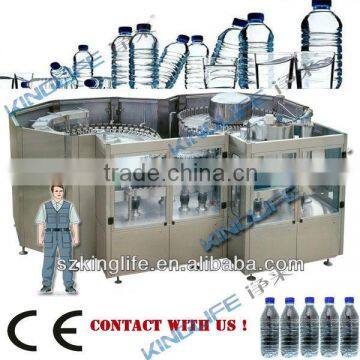

Monoblock machinery and equipment for mineral water plant
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Medical | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 380v | Power | 7.5~15KW | |
| Place of Origin | Guangdong, China | Brand Name | Kinglife | |
| Model Number | Normal Pressure Series | Dimension(L*W*H) | 6800*3900*2400mm | |
| Weight | 15000kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mineral /Pure/Beverage water fulling mahcine/ machinery and equipment for mineral water plant
Features:
1 Full mirror-polishing stainless steel structure for easy cleaning and hygiene
2 Built-in safeguard mechanism ensures the safety of operator and machine
3 Adopt world-famous components
4 Low noise, efficient, high accuracy and intelligent
5 Quiet, rotary cap installer will not damage caps. Photoelectric sensors sense missing caps thus eliminating uncapped bottle spillage
6 Magnetic powered cap placement ensures tightness yet prevents bottle damage
7 Fully automatic running with colorful touch-screen PLC control
Specification:
Product | Automatic Monoblock Rinsing Filling & Capping Machine | ||||
Model | XGF40-40-15 | XGF50-50-18 | XGF60-60-20 | XGF80-80-24 | |
Max Production Speed (depend on bottle design) *BPH=bottle per hour | 0.5L bottle | 14000BPH | 16000BPH | 20000BPH | 34000BPH |
1.5L bottle | 9000BPH | 10000BPH | 12000BPH | 20000BPH | |
Rinsers(PCS) | 40 | 50 | 60 | 80 | |
Fillers(PCS) | 40 | 50 | 60 | 80 | |
Cappers(PCS) | 15 | 18 | 20 | 24 | |
Max Pure Water Consumption (including pure water both for filling and rinsing) | 6.0 M3/H | 9.0 M3/H | 12.0 M3/H | 15.0 M3/H | |
Applicable Bottle Diameter | Φ50 ~ Φ100 mm | ||||
Applicable Bottle Height | 150 - 320 mm | ||||
Applicable Cap Type | Screw-up Cap | ||||
Gas Source Pressure | 0.3~0.7 Mpa | ||||
Gas Consumption | 1.0~2.0 m3/min | ||||
Input Power(KW) | AC380V / 50Hz | ||||
3.13 | 3.84 | 4.10 | 5.60 | ||
N.W.(KG) | 9000.0 | 11000.0 | 13000.0 | 15000.0 | |
Dimension | 5000×2800×2400 | 5900×3100×2400 | 6500×3500×2400 | 6800×3900×2400 | |
Packing Ways | In Wooden Case | ||||
Accessories | Including air conveyor, automatic cap loader, and lamp checker | ||||
Application Scope | Non-gas mineral or spring water / RO purified water / distilled water filling | ||||
Components:
Gas drinks / juice filling machine / water bottling machine / water filling machine / water bottling line / water filling line with production capacity ranging from 1500bph to 34000bph. Beside our high quality equipments, we also offer factory planning / design / consultance, and if needed, we can send our engineer team for installation or repair.
Before sales serbice: as we are keen on provide complete bottled water machine service , we can make design on bottle mould&plant layout sesign service , also ,if you have any special requirement ,we can update our machine on your basic .
After sales Service Terms: we provide one year limited warranty*1 and life long support service for all of our products.
During the warranty period, if any product purchased from our company malfunctions, we will provide necessary technical support, or even send engineers to solve the problem with the buyer providing proper accommodation, all the fees for transportation(the air tickets to you for economy class), insurance and medicines, and salary for our engineers*2 and 1 translater,the sallary based on USD60 per day.
For detail information ,please contact our sales manager -John Yi
1.can this machine fill juice and carbon beverage ?
Answer: no ,this is a none-gas beverage filling machine , if you need gas beverage filling please contact John for another offer .
2. what kind of bottle can be filling in this machine ?
Answer: normally ,PET/PP plastic bottle and volume under 2L , the shape of the bottle should be regular one , if you get glass or special bottle shape ,please contact with John for OEM service.
3.how many years guarranty can we offer and after service ?
Answer: we can give at least 3 year warranty . after service :if the machine happen to be broken ,we will need you explain us what is the problem ,we will solve it by sending free spare parts ,or sending our engineer oversea when it comes big problem.
4.Touch screen language and manuel language ?
Answer: no matter you are english language man , spanish ..ect... we can get translate the manuel with your requirest language and update the PLC and touch screen with your language , make it easy for your operation .
for more questions please contact with John Yi , we will get reply you at the first time we can !
