TAIWAN Photoelectricity Optic Eye Sensor
- Wuhan
- L/C Credit Card PayPal
You May Like
Product Details
| Place of Origin | Taiwan, China | Model Number | JCKJ006 | |
| Usage | Speed Sensor | Theory | Optical Sensor | |
| Output | Digital Sensor |
Product Description

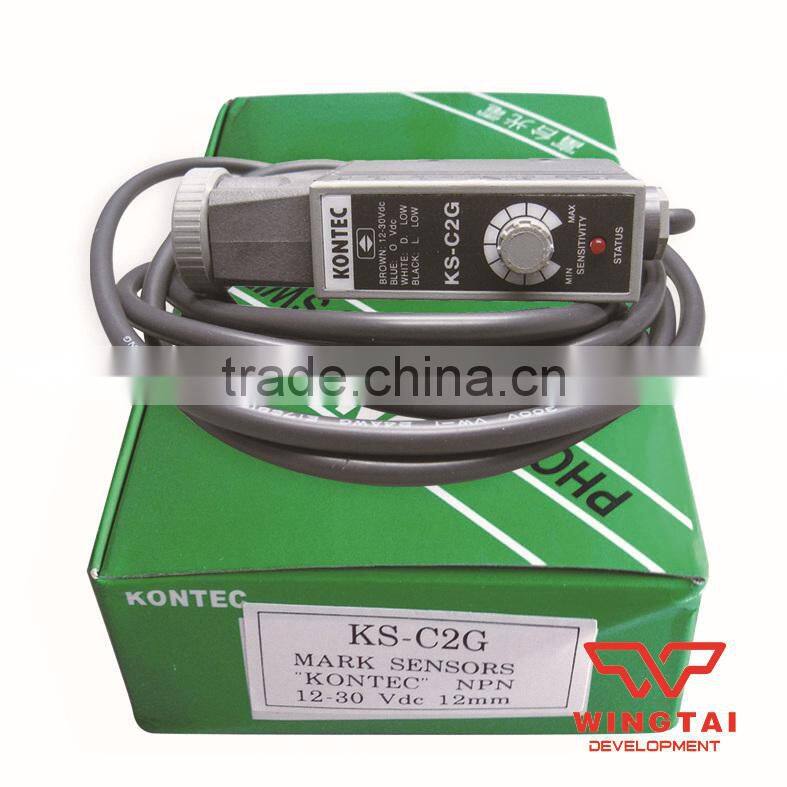

TAIWAN Photoelectricity Eye Sensor
A photoelectric sensor, or photo eye, is a device used to detect the distance, absence, or presence of an object by using a light transmitter, often infrared, and a photoelectric receiver. They are used extensively in industrial manufacturing. Taiwan Kontec Photoelectric sensor adopts the coaxial reflective type; emission sources used special Poly-type LED light; and several different light sources for option. Widely used for all kinds of vertical automatic packaging machines, Horizontal packaging machines, all kinds of bag making machines, cutting machine, slitting machine, and printing machines. As a color-coded identification sign, it can precisely control bags’ length and auto-correction.
Main Feature:
1. Outputting white and green light for option.
2. Coaxial reflective type optical design
3. Small light spot, precise detection.
4. Output short circuit protection design.
5. Power supply: DC 12-30V.
Specifications:
| KS-C2W | KS-C2G | KS-C2R | KS-C2R/G | KS-C2W/G |
Light source | White | Green | Red | Red/green | White/green |
Detection | coaxial reflective type | ||||
Detection distance | 10mm±2mm | ||||
Cast bare point | 1.0mm | ||||
Supply voltage | DC12-30V | ||||
Power consumption | 40mA or less | ||||
Response time | Less 1mS | ||||
Output form | NPN type lights moving / dark dynamic dual output | ||||
Protection function | Supply voltage reverse polarity protection, short-circuit protection | ||||
Operation instruction | red LED, bright Activity directions | ||||
Operating ambient | temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux | ||||
Lead | four-core cable (brown, yellow, white, blue) standard length 2m | ||||
Dimensions | 95(L)×45(H)×15(W)mm | ||||
