Tunnel Car Wash Equipment GT-R800 12Brushes

Tunnel Car Wash Equipment GT-R800 12Brushes Tunnel Car Washing Machine Tunnel Car Wash Machine GT-R800 12Brushes Wheel Washing Automatic Dryer Polish

Hangzhou Dingchuan Import&Export Co., Ltd-Shuifu Tunnel Car Wash Machine Export Office. WhatsApp/Mobile: +86-13738082939, Tel.: +86-571-82136157, Skype: wikimachine Contact: Mr. Wiki Wong

Fully-automatic Tunnel Conveyor Car Wash System

Model: GT-R800

Brand: Shuifu

Machine Operation Video:  https://youtu.be/i03p4FnlzTw

Price: FOBNingbo 49,000USD/Set.

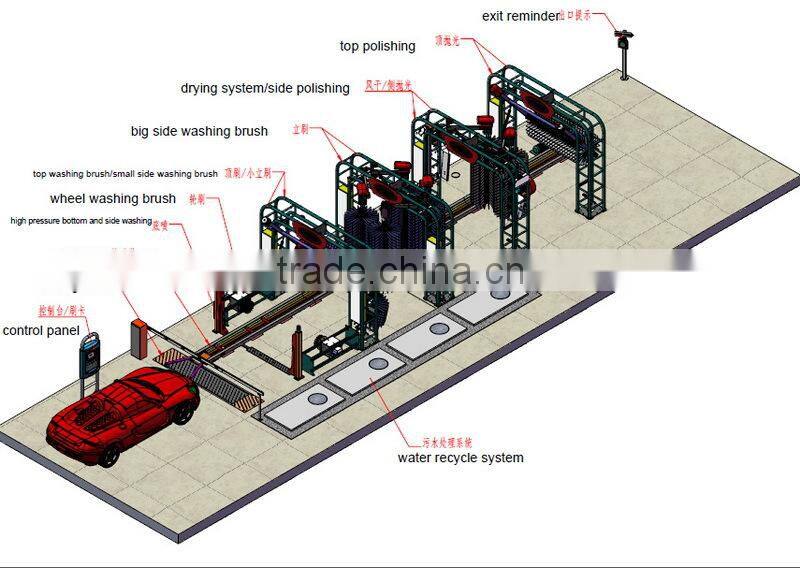

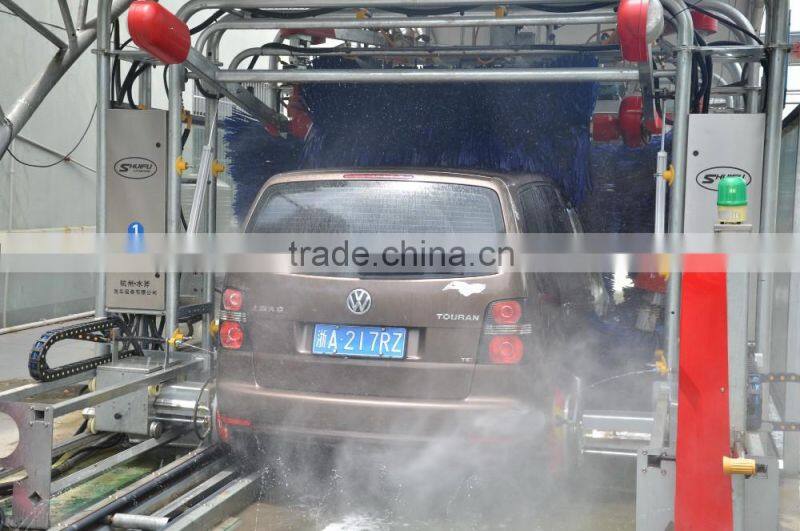

Machine washing process: start-high pressure bottom and side washing-wheel brushes washing+high pressure rinse-car body brush washing+water spray+shampoo spray-wax spray-automatic drying-polishing-end

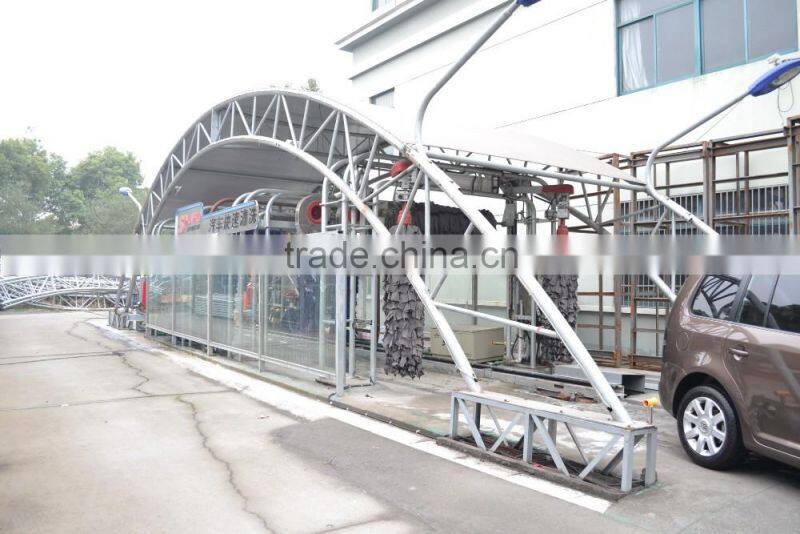

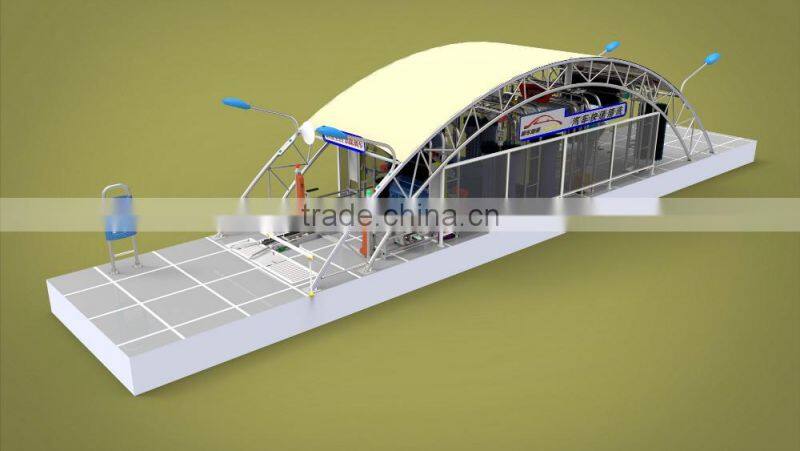

GT-R800 Tunnel Car Wash Machine layout: beautiful arch design, Required installation place Size L*W*H=30*4.5*4.2m. Car washing speed: 60cars/hour.

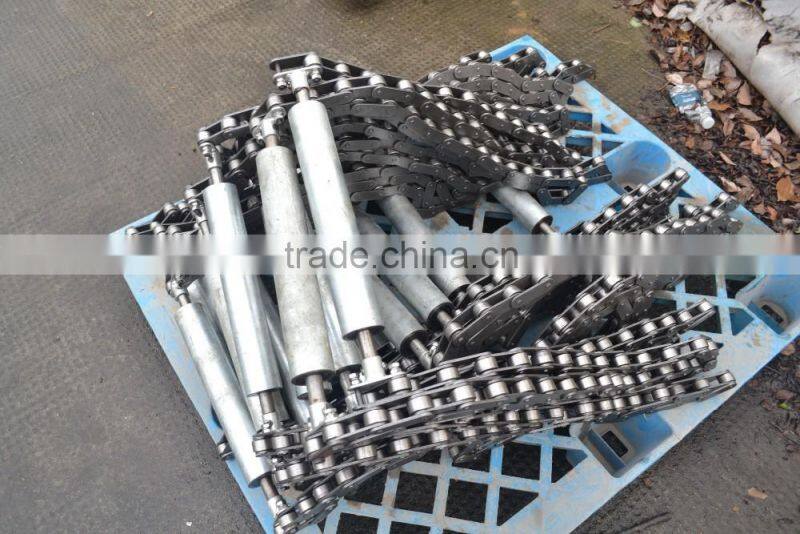

High quality conveyor with high quality chain and automatic collision avoidance function.

Machine Features

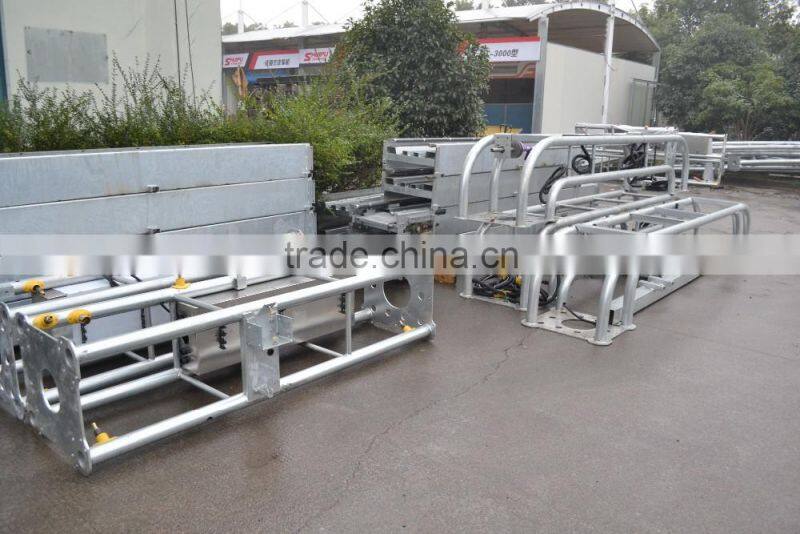

1. Independent steel frame structure-If there were problem about one of structures, this group structure doesn’t affect the functions of the rest three steel structures.

The buyers just replace one component to repair the machine if there were damage about any component.

2. Antirust process: hot galvanizing-Machine frame uses high quality section bar steel tube and galvanized pipe with features high strength and high performance. The steel surface is treated with sand blast, hot galvanizing and epoxy coating. The life span of machine frame is above 10years.

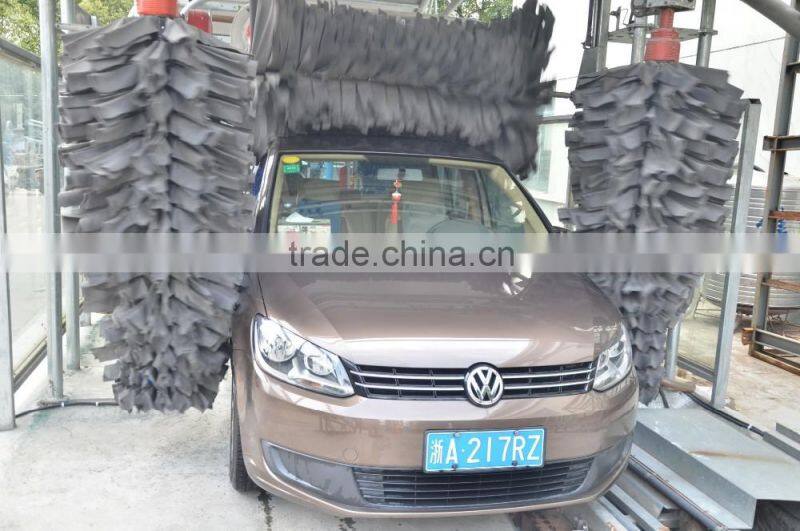

3. High quality brush-Imported brush can wash 400000Cars. Brush bar is made by high quality alloy section bar with features high strength, no distort and no deformation.

 4. High pressure spray nozzle and high pressure prewashing-Spray nozzle is made by forged alloy, no rust and good performance under high pressure. The angle of spray nozzle is adjustable according to the car. 90KGS high pressure water can clean mud and sand on the surface of the car to prevent brushes scratching car paint.

 5. PLC-Delta brand PLC can adopt bad operating environment, strong anti-interference ability, high reliability and high system stability.

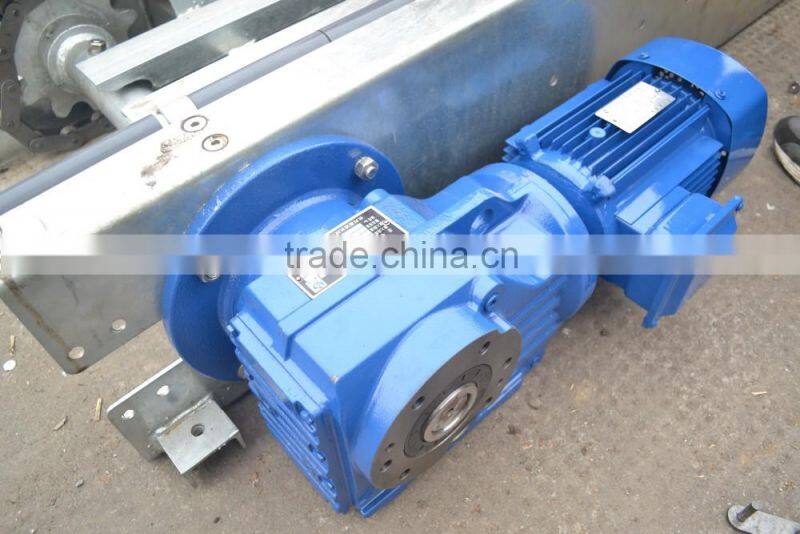

6. Motor-IP76 high waterproof motor, low noise, low failure rate and long life span.

7. Pneumatic Components-AIRTAC brand pneumatic components make sure that air circuit is in good condition.

8. Induction System-Photoelectric sensor and approach switch uses Japan Omron brand with features of high precision, fast response and non-contact.

9. Protection System-Relay, AC contactor uses Schneider brand. The machine is equipped with earth leakage protection.

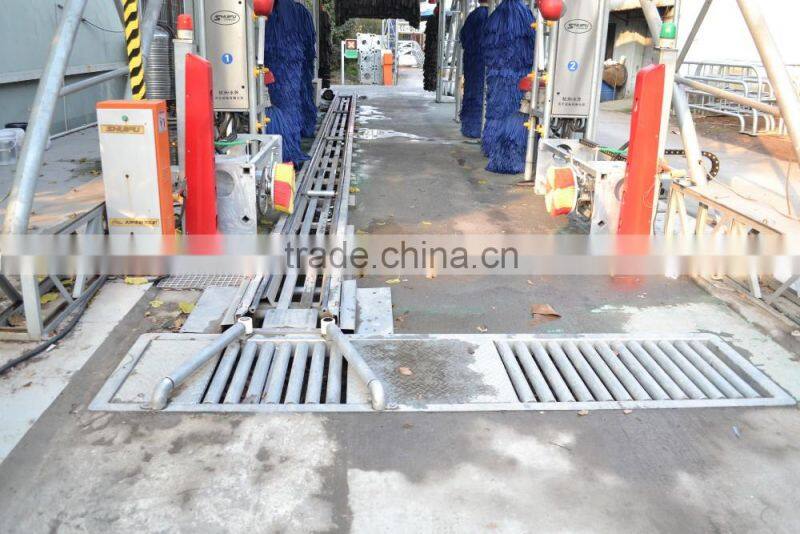

High Pressure Prewashing for chassis and car sides to clean sands and dirt on vehicle surface so that brushes don't scratch car painting.

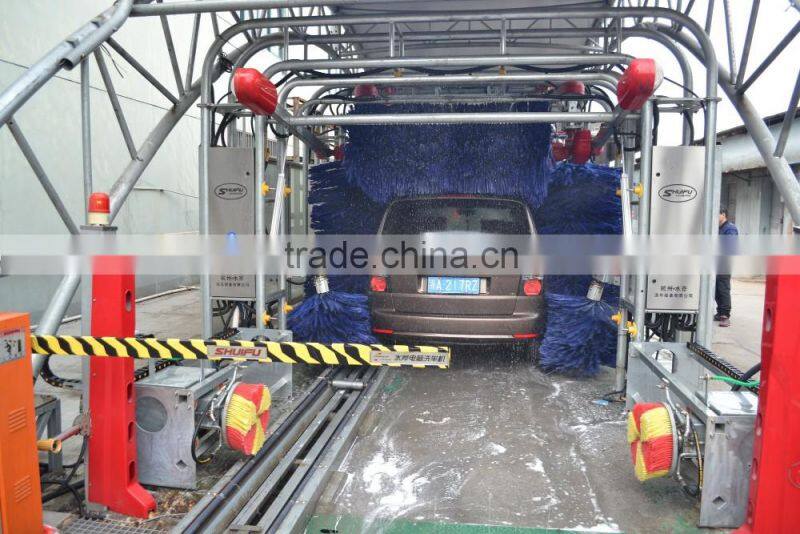

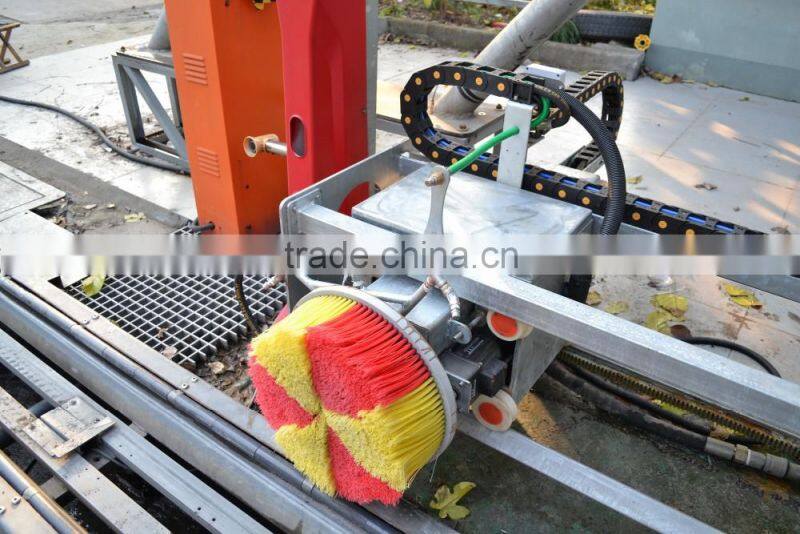

Wheel Brush washing with High Presure rinse for cleaning car wheels.

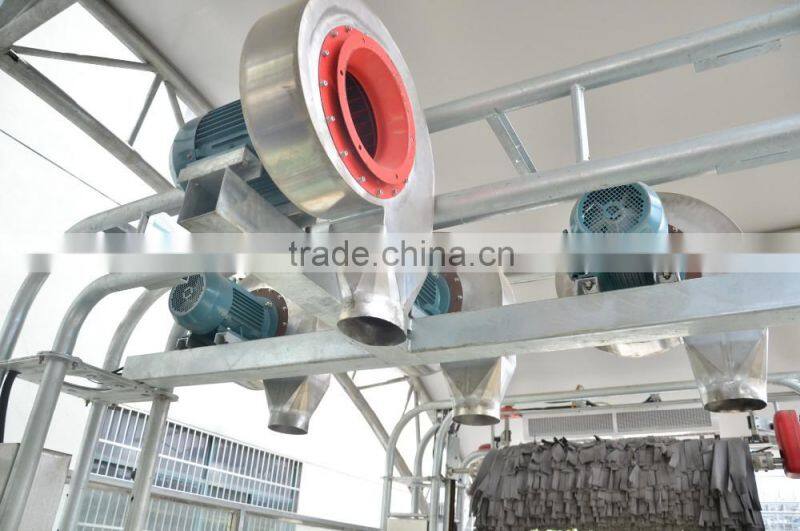

4Pieces blowers (5.5KW/blower, total 22KW) fixed drying system+polishing brushes combined drying car, 100% drying water.

1set machine in 1*40HQ Container,Small Parts Packing: Solid plywood box with steel frame inside

WhatsApp/Mobile: +86-13738082939, Tel.: +86-571-82136157, Skype: wikimachine. Please contact Mr. Wiki Wong for more information and best price. Thanks very much!
