Vertical Rubber Injection Molding Machine High Quality Factory
Negotiable
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Ningbo
- T/T
You May Like
-
Vertical Rubber Injection Molding Machine High Quality Hot Sale
-
rubber injection press machine/rubber machine
-
Rubber Machine
-
Hydraulic Rubber Injection Molder Press Machine high quality hot sale
-
High quality of the automobile glass rubber sealing strip vertical injection molding machine
-
Rubber Injection Molding Machine
Product Details
| Condition | New | Style | Vertical | |
| Brand Name | TW | Model Number | TWL-300T | |
| Place of Origin | Zhejiang, China | Plastic Type | Thermoplastic | |
| Automatic | Yes | Injection Weight | 3000CC | |
| Clamping Force | 300T | Opening Stroke | 500mm | |
| Power(W) | 40kw | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Vertical Rubber Injection Molding Machine High Quality Factory
Machine Characteristics:
1. Stationary four cylinders balancing vertical injection structure, hyperstatic injection force.
2. Optimized shot feeding rod greatly reduces the rubber leakage and is convenient and fast for maintenance and rubberreplacement.
3. “Innovative shot feeding tube constant temperature system plus ultrashort nozzle make very few remaining materials and minimum pressure loss ”.
4. Specification under 500T adopts the international popular and advanced FIFO first-in first-out injection way 5. Totally-enclosed safety shield and grating, higher equipment operation safety grade.
6. Hot plate heating zone control makes temperature more even.
7. Bigger table board design.
8. More automatic functions may be selected.
Applicable Products
Various rubber products
Specification
| Type | TWL-200T | TWL-300T | TWL-400T | TWL-500T |
| Clapping force(TON) | 200 | 300 | 400 | 500 |
| Stroke(MM) | 500 | 500 | 600 | 600 |
| Working Plate Size(MM) | 600×600 | 700×700 | 700×800 | 800×850 |
| Dimeter of cyhnder(MM) | 355 | 450 | 500 | 560 |
| Max plate spacie(MM) | 550 | 550 | 700 | 700 |
| Min Mould Height(MM) | 60 | 60 | 100 | 100 |
| Crane travel(MM) | 200 | 200 | 250 | 250 |
| Joe trabel(MM) | 200 | 200 | 250 | 250 |
| injection unit | ||||
| Volume injection(CC) | 2000 | 3000 | 4000 | 5000 |
| Injection pressure(Mpa) | 220 | 220 | 205 | 205 |
| Screw diametre(MM) | 45 | 45 | 55 | 55 |
| Nozzle aperture(MM) | 6 | 6 | 7 | 8 |
| OTHERS | ||||
| System pressure (Mpa) | 21 | 21 | 21 | 21 |
| Horse powet(HP) | 15 | 20 | 25 | 30 |
| Heater power(KW) | 19 | 22 | 27 | 31 |
| Total power(KW) | 36 | 40 | 52 | 58 |
| Gross weight(KG) | 7200 | 9300 | 11700 | 14700 |
| Machine size(MM) | 2700×1200×3600 | 3100×1300×4000 | 3300×1400×4500 | 4000×1600×4500 |
Standard Unit
Efficient specific pressure and flow hydraulic system
Upper machinery lifting mold
Lower in and out mold unit
Two-level demoulding device
Totally-enclosed safety shield and grating
Plasticizing and injection independent temperature control system
Hot plate heating zone control
Siemens controller
Optional Device
Variable pump system
Cold runner device
3RT/4RT multilayer demoulding device
Middle mold in-and-out device
Claw device
Mold vacuum system
Quick mold change device
Remote control
Print function
May preset mold heating function
May increase injection volume
Key Configuration Of Machine
Name | Brand | Description |
| Machine body casting | FCD50 ductile cast iron | High tensile strength after aging passivation |
| Stand column | Zhanwang(medium carbon steel) | Hardness is up to HRC55--58 |
| PLC | Simens,special for injection molding machine | Independent programming,covenient operation |
| Touch panel | Panelmaster(Taiwan) | Clear and intuitive, convenient and fast, converient operation |
| Cartridge heater | Hindley(Taiwan) | Three-stage winding,nichrome wire, non-rusty |
| Oil seal | Japanese NOK and Sakagmi | Wear-resting, durable and oil tight |
| Electromagnetic valve | Northman(Taiwan) | May control fast switching action with long service life |
| Main electric elements | Scheider(Germany) | May stabilize machine performance |
| Temperature controlled meter | Omron(Japan) | Adopt PID additions and corrections for uniform temperature distribution with an error value of ±3ºC |
| Pressure sensor | TRAFAG imported from Denmark | Accurate transmission pressure with zero deflection, easy to use |
| Heating control system | Scheider(Germany) | May make temperature distribution uniform with an error value of±3 |
| Motor | Datong(Taiwan) | Large torsion type, quiet and silent. |
| Oil pump | Yongling(Taiwan) | Integrated oil circuit design system |
| Shot system(including screw) | Zhongyang(Taiwan) | Special for injection machine |
| Vulcanizing timer | ANV(Taiwan) | four digital display |
| Vacuum pump | Busch(Germany) | Fast vacuum pumping, up to 760mm mercury column in 5 minutes |
| Proximity switch | Yangming(Taiwan) | Reliable and stable quality |

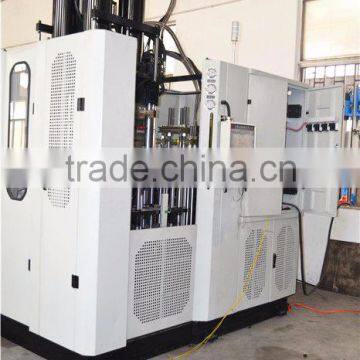

Vertical Rubber Injection Molding Machine
The Parts All Our Factory Produce
If you interested our products, please conatct Tammy Yan, I will give you a good plan!
Skype:timmy081593
Wechat:YQY932570502
Whatsapp:+8618329021230
