220T Servo Motor PET Plastic Injection Molding Machine
Negotiable
/ Set
1 Set(Min. Order)
- Ningbo Shanghai
- T/T
You May Like
-
500T Plastic Injection Molding Machine
-
220T Servo Motor PC Plastic Injection Molding Machine
-
High Speed Servo Motor Plastic Injection Molding Machine
-
90T Plastic Injection Molding Machine
-
220T Servo Motor Plastic Injection Molding Machine
-
220T Servo Motor High Speed Cream Bottle Plastic Injection Molding Machine
Product Details
| Condition | New | Type | Tube Head Injection | |
| Style | Horizontal | Brand Name | YOUCAN | |
| Model Number | YC220 | Place of Origin | Zhejiang, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 347-520g | Clamping Force | 2200kn | |
| Opening Stroke | 480mm | Power(W) | 18.5kw/22kw | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

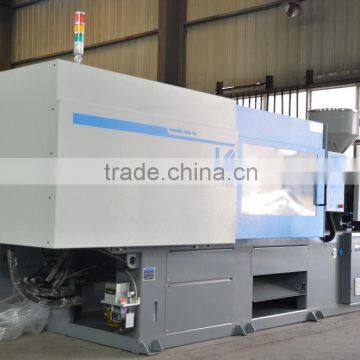

220T Servo Motor PET Plastic Injection Molding Machine
Name: Spring WhatsApp: +86 13567193083
Our factory is located in Ningbo, China.
Our machine uses the first class brands parts as follows:
Servo Motor: Phase;
Gear Pump: Erckerle;
Computer: Techmation or KEBA;
Valves: Yuken or Rexroth;
Contactor: SSR Scheneider;
Lubrication System: Hegu;
Controller: Innovance.
Model: YC220
| Injection Unite | A | B | C | |
| Shot Volume | CM3 | 381 | 470 | 569 |
| Shot Weight | Gram | 347 | 428 | 520 |
| Oz | 12.1 | 15 | 18.1 | |
| Screw Diameter | mm | 45 | 50 | 55 |
| Injection Pressure | MPa | 217 | 176 | 145 |
| Screw L/D Ratio | 22:1 | 20:1 | 18:1 | |
| Screw Stroke | mm | 240 | ||
| Screw Speed | r/min | 0~200 | ||
| Clamping Unit | ||||
| Clamping Force | KN | 2200 | ||
| Opening Stroke | mm | 480 | ||
| Platen Size | mm*mm | 745x745 | ||
| Space Between Tie Bars | mm*mm | 510x510 | ||
| Mold Thickness(Min-Max) | mm | 200~560 | ||
| Max. Daylight | mm | 1040 | ||
| Hydraulic Ejection Stroke | mm | 150 | ||
| Hydraulic Ejection Force | KN | 67 | ||
| Power Unite | ||||
| Hydraulic System Pressure | MPa | 17.5 | ||
| Pump Motor | KW | 18.5/22 | ||
| Heating Capacity | KW | 13.1 | ||
| Number of temp control zones | 4+Nozzle | |||
| General | ||||
| Dry-cycle Time | Sec | 4.5 | ||
| Oil Tank Capacity | Liter | 310 | ||
| Machine Dimensions | M*M*M | 5.4x1.3x2.1 | ||
| Machine Weight | KG | 6800 | ||
