Electric Oil Pressure Sensor
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | HT | |
| Model Number | BP157 |
Product Description
Specifications
Special for air compressor.High cost-Performance ratio
Description
The cost-Performance ratio is high, utilize newest technology, assemble high performance circuit. Small profile, have strong capability of dampproof and anti-electromagnetic interference. Mainly apply in fields: air compressor, vacuum equipment, oil pressure equipment.
Features
Wide measurement range,
Multiple thread
Protection: IP65
Marking :ExiaIICT6;
CE,CMC certification
Application
air compressor, vacuum equipment,
oil pressure equipment
Specification
Measurement Range | 0~0.1...~5MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%(typical) ±0.5%(Max.) |
Long stability | ±0.1%F.S/year(typical) ±0.2%F.S/year(Max.) |
Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range | -20°C~80°C |
Storage Temperature Range | -40°C~120°C |
Power supply | 12~36VDC,5VDC |
Output signal | 4~20mA 0.5~4.5VDC,1~5V |
Pressure port | M20×1.5,G1/4 or customize |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ,100VDC |

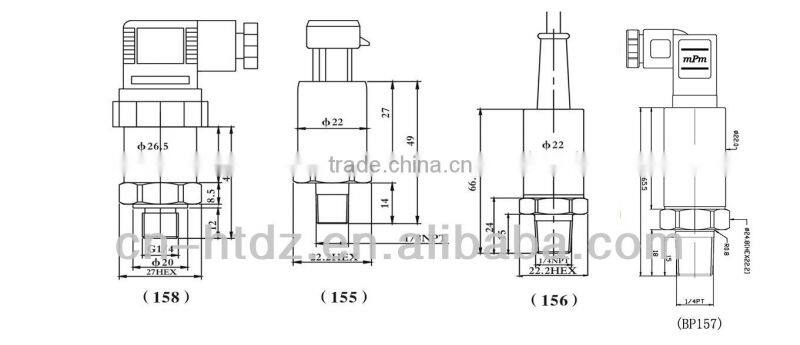

Dimension

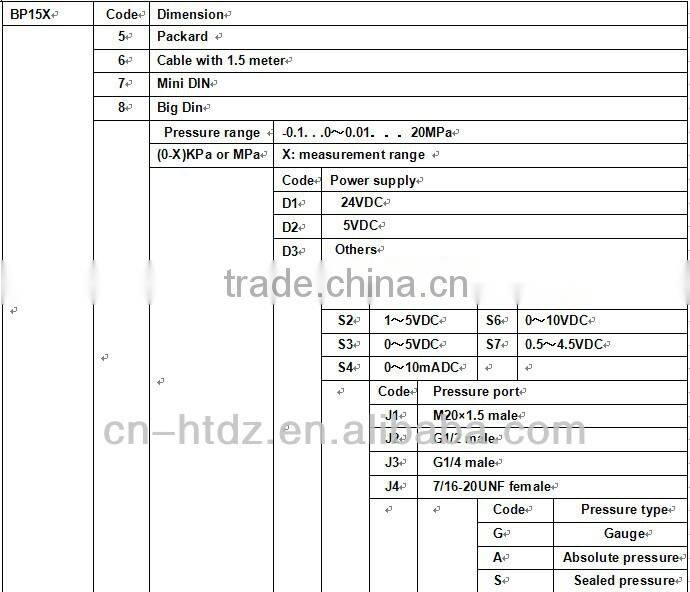

Ordering Information
