Digital Night Vision Monocular Jumbo

WTB25x100 Table of Specification

for Large Diameter Coin Binoculars

Series large diameter viewing binoculars are good assistant in long range observation activity, such as frontier defense, forest and grassland fire proofing, shipping, fishery. They are also suitable for sightseeing in scenic spots and viewing on high buildings and balcony.

Table of Specification for Large Diameter Coin Binoculars

DTW25×100

/Material of the Host:/Extra-hard Aluminium Alloy

/Tightness:/Water proof

/Magnification:25x

/Optical coating:/Broad band coating or blue coating

/Field of view: 2°30′

/Objective diameter: 100mm

/Eyepiece diopter range:-0.75  diopter

/Exit pupil diameter: 4mm

/Exit pupil distance: 14mm

/Resolution:≤2.4″

/Weight:62 KGS

(mm)/Dimension of main body(L x W x H):640×125×300

/Height of complete device:1.5m

/Viewing time:/Time setting: 1minute to infinity

/Used coins:(diameter:18~31mm,thickness: 1.2~3.0mm)

Different metal coins can be set. Diameter:18mm~31mm, thickness:1.2mm~3.0mm

/Battery:4.5V/Azimuth angle:360°

/Elevation angle:90°

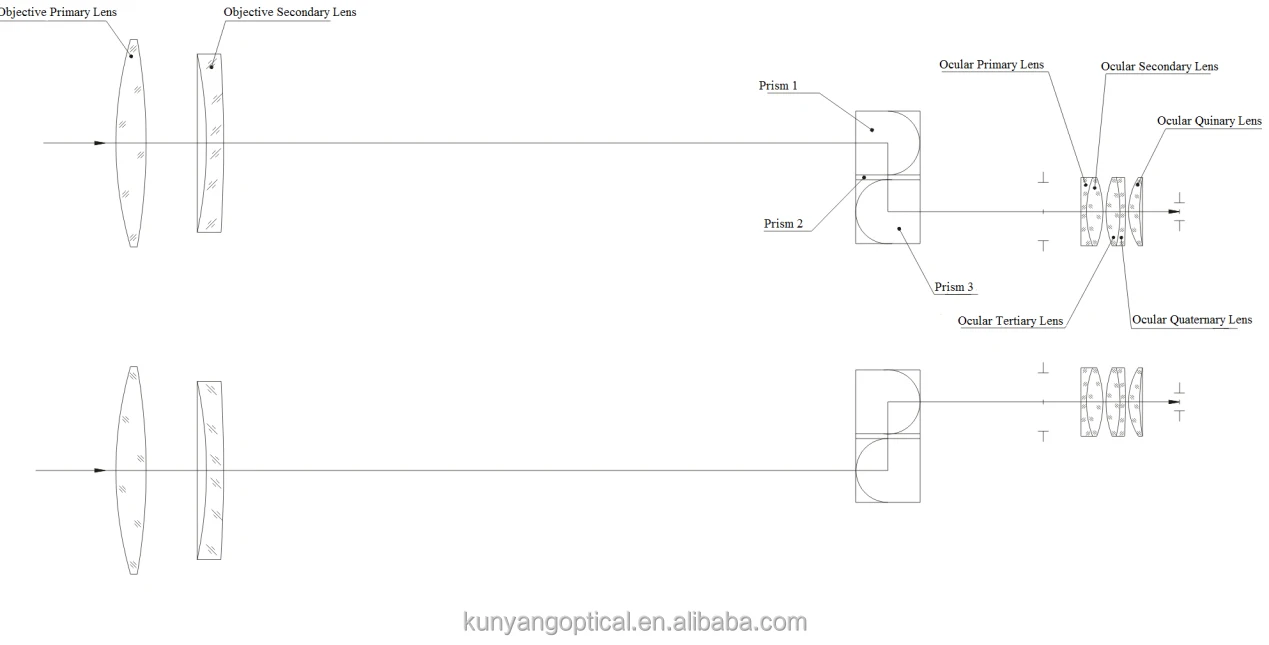

Optical Configuration:

II. ASSEMBLY

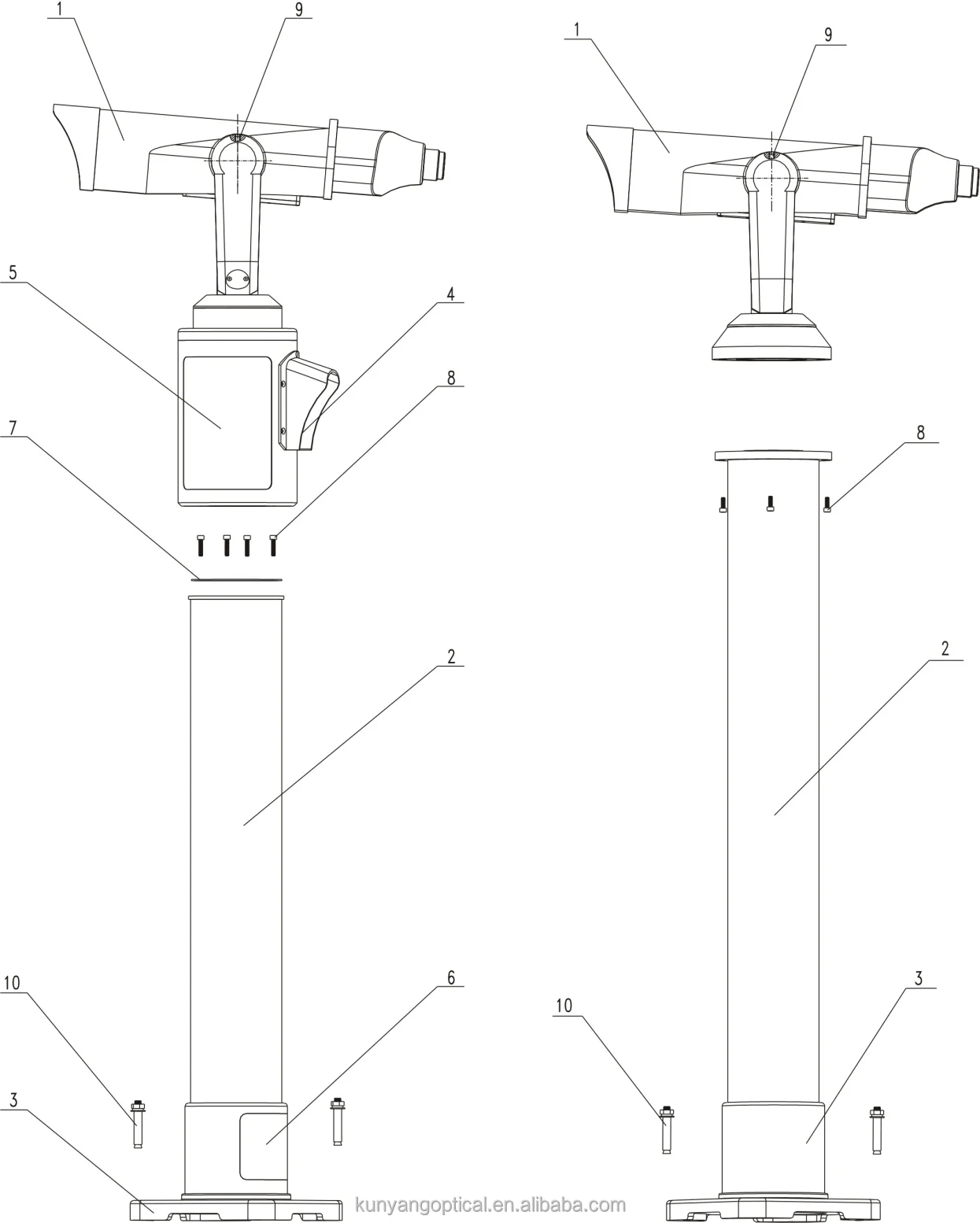

1. The configuration of theCO25100ASeries Telescopes are shown in Figure 1, which includes: (a) coin operated model and (b) non-coin operated model.

1.Telescope 2.Stalk 3.Base 4.Coin Chute 5.Power Source Lock 6.Base Lock

7.Obturating Ring 8.Allen Screw 9. Lock Nut 10.Set Screw

Figure 1

III. HOW TO USE

41x100 45 degree Giant Binoculars   for asronomy telescopes

1. Enquiries will be replied the first time around .

2. Fast sample arrangement.

3. Sample Charges will be returned back at certain rate according to your order quantity.

4. OEM and Logo available

5. Delivery on time

6. A variety of payment, such as Western Union, Paypal, L/C, T/T etc.

7. Any one will be kindly treated as our friend no matter you are a small or a new customer.

8. Help you on products recommendations and market positioning for your reference

9. Packages tracking and Products’ arrival reminding .

10. The corresponding compensation can be provided for products’quality problems.

    Kunyang Zhicheng Optical Co., Ltd. ( former Kunyang Optical Instrument Factory ) , founded in 1993 , is located in the cradle of the world's optical products -Kunming, Yunnan Province . We engaged in high-end telescopes , binoculars and spotting scope research and development production and sales of professional manufacturers.Our company has more than 50 employees, 5 professional design engineers, the company’s area is about 1,500 square meters. Company primarily focused on the early well-known clients such as : manufacturing and exporting BOSMA, BUSHNELL, MEADE BRESSER and other products.At present, the company has 100% of the products exported to Europe and Japan ,we received the unanimous endorsement of foreign partners in a relatively short period of time with excellent product quality and honesty pragmatic cooperation ,and gradually won reputation and location in the world of traditional optical industry .
     As a supplier of international brands , in addition to our constant innovation and effort, the company 's partners are some of the world's leading optical companies , they continue to provide us with a lot of product recommendations ,market feedback and quality endorsement in the process of cooperation over the years, which not only makes our products become perfect , but also provides us a strong quality foundation for occupying the market leading position at home and abroad today. Meanwhile, we use modern network platform and logistics system, through the network direct sales and agents around the direct way , try to increase productivity, reduce costs, compress in the  middle of the process from factory to the hands of cunsumers to a minimum, which can guarantee domestic consumers to buy our high-quality products at the lowest price, and get the valued and cost-effective products by not  having to make the most of the high rents and overwhelm luxurious shopping mall advertising pay .
     As a famous internationally domestic OEM supplier and pioneer telescope brands , we may obscure in the domestic telescope market today, but we believe accumulation brought gorgeous tomorrow.
    Kunyang Zhicheng optics must provides you with the most cost-effective international     products and excellent service , please join hands with us to create the future !
