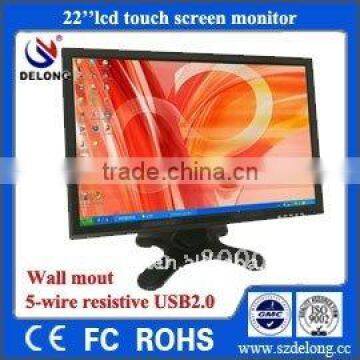

22inch CCTV Lcd Monitor With AV/DVI/VGA/5-wire Resistive

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shenzhen or HK
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Desktop
Screen Size	Other, 22"	Response Time	6ms
Brightness	400cd/m	Interface Type	DVI, Other, DVI, AV
Contrast Ratio	550:1	Resolution	1680 x 1050
Widescreen	Yes	Panel Type	TFT
Pixel Pitch	0.107(H) x0.372(V)mm	Brand Name	Delong
Model Number	DL220A	Place of Origin	Guangdong, China

Product Description

Specifications

22inch CCTV lcd monitor with VGA/AV/DVI
Resolution:1680x1050
5 wire resistive touch panel
Support WIN 7 system

High definition 22 inch cctv lcd monitor for car/pc/pos/industrial

Features:

22" CCTV display & security display & surveillance display with VGA/AV/DVI Input

High color restore with camera
Standard VGA/RGB input (USB) can match with PC, GPS and security systems
Built-in speaker/amplifier and earphone jack (optional)
Can support almost all kinds of resolution

factory direct price

CCTV lcd monitor main specification

Parameters	LCD Panel	22" wide panel
	Touch panel	5-wire resistive touch USB2.0
	Working Voltage:	DC 11.5V-13V
	Working Temperature:	0°C~60°C
	Storage temperature	-20~60°C
	Input configuration:	DVI/VGA/AV(optional)
	Screen size:	22 inch(16:10 diagonal)
	overall dimmension of panel	493.7(W)320.1(H)16.5(D)mm
	Surface treatment	Hard coating(3H), anti-glare (Haze 25%)
	Active area	473.76(H)*296.1(V)mm
	Resolution:	1680(H)×1050(V) pixel
	Pixel pitch	0.282(H)*0.282(v)
	Color configuration	RGB vertical stripe
	input color singal	8 bit LVDS
	Display colors	16.7M(6 bit with Hi-FRC)
	Backlight	4 CCFL
	Brightness:	300cd/ m2
	Contrast:	1000:1
	response time touch panel(ms)	7ms
	Visual angle	up/down 85-85Deg /---left/right 85-89Deg
Functions	Full Touch Function Touch Panel with PC
	The highest resolution is to 1920*1200
	Stand Optional
	VGA Port -VGA
	Operation System is Win 9X, 2000,ME,CE/UNIX
Accessories	1pcs Remote Controller
	1pcs Stand Shelf
	1pcs VGA Cable
	1pcs Instruction Manual
	1pcs AC/DC Power
	Some Screw for Fixing the Shelf.
	1pcs touch pen
	1pcs touch driver
