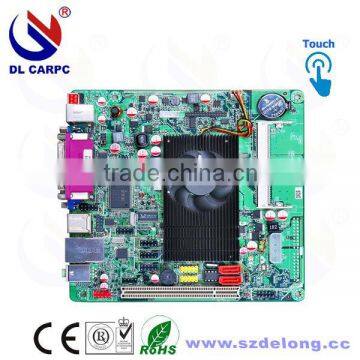

Hot Sale Intel Atom Dual Core CPU D525 MINI ITX Mainboard Intel Atom Mainboard

Specifications

Hot Sale Intel Atom Dual Core CPU D525 MINI ITX Mainboard Intel Atom Mainboard

Introduction:

INTEL D510 - D525 + NM10 series chipset,

Support INTEL EBGA437 533 external clock ATOM D510 - D525

Support: dual channel DDR3 memory.

Plate load: Intel GMA 3150 graphics core.

Support: a PCI.

Provide: 2 COM port, and 2 IDE interface, 2 SATA interface,

support: ALC662 channel output, a Realtek 8103 c, 10/100/1000 m Ethernet controlle

Specification

MINI-ITX Embeded Motherboard Specification

-ITX

Layout Diagram

Jumper

Connectors

Headers

Hardware Installation

Jumper Setting

(1) Clear CMOS (2-pin): JBAT

(2) Serial-ATAII Port connector: SATA1/SATA2

(3) Large 4-Pin Power Connector: PWR1
The connectors are 4-pin connector that supports extra 12V / 5V power to your
system.

Headers

(1) Line-Out, MIC-In Header (9-pin): FP_AUDIO1 Header
This header connects to Front Panel Line-out, MIC-In connector with cable.

(2) CD AUDIO-In Headers (4-pin): CDIN1
CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.

(3) Serial Port Connectors (9-Pin female): COM1

(4) USB Port Headers (9-pin): USB3

(5) USB Port Headers (4-pin): USB2

(6) Front Panel Header: FP1

(7)FAN Speed Headers (3-pin): CPUFAN1, SYSFAN1
Pin1: GND
Pin2: +12V fan power
Pin3: Fan Speed

(8) GPIO Header (10-pin): GPIO_CON
