CZ-YD-107 Piezoelectric Accelerometer
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Cezhen | |
| Model Number | CZ-YD-107 | Usage | Vibration Sensor | |
| Theory | Capacitance Sensor | Output | Analog Sensor |
Product Description

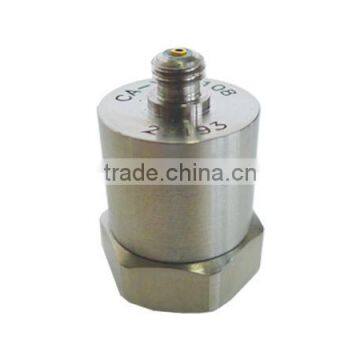

CZ-YD-107 Piezoelectric Accelerometer
Features:
1) General Vibration & Shock
2) Plane shear structure
3) Passive, positive piezoelectric effect
4) Good performance, impact resistance
Specifications:
Axial Sensitivity | ~50pC/g |
Transverse Sensitivity | ≤5 % |
Frequency Response 5% | 1 ~5000 Hz |
Mounting Resonance Frequency | 25,000 Hz |
Temperature Response | Refer to the temp. curve |
Polarity | Positive |
Insulation Resistance | >109 Ω |
Capacitance | ~1200 Pf |
Operating Temp. Range | -40~+150 ℃ |
Range | 800g |
Thermal Transient Sensitivity | 4mg/℃(0.3Hz) |
Magnetic Sensitivity | 2g/T |
Base Strain Sensitivity | 0.2mg/με |
Weight | 28g |
Case Material | Stainless steel |
Mounting Method | M5 |
Sensing Element | PZT-5 |
Structural Design | Shear |
Output | Top L5 |
Accessories: | |
Sensor Certificate | Calibration parameter, frequency response curve |
M5,M5/M8 bolt, Protection cap | Respective one |
L5/L5 STYV-1(2m) | one |
