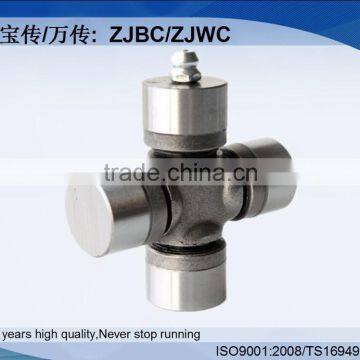

20 years High Quality Universal joint GUD-81 Universal Joint Cross for American Vehicle

1.Raw material :20Cr/20CrMnTi(structural alloy steel):

   for spider:20Cr / 20CrMnTi;

   for bushing:20Cr/GCr15;

   for needle roller:GCr15.

   for cross assembly: 20CrMnTi

2.chemical component:

 chanical property:

ction of u-joint assembly

1).safety factor of static torsion strength:≥2.0

2).torsional fatigue life: ≥1.5x10⁵  cycle index.

3).wearing life: ≥60h .

5.heat treatment:

spider:

1).surface hardness:58-64HRC

2).inner hardness:25-45HRC  or 38-48HRC(20CrMnTi)

6.bearing cap:

1).surface hardness:58-64HRC

2).the depth of effective hardened layer:0.3~0.7mm.

3).metallography structure:M+A’1-5 level.

1.rust proof: preservative oil and grease treated.

2.internal packing:plastic bag +neutral white box.

3.outer packing:carton+iron tray/wooden cases.

Part: Ningbo/Shanghai

1.Design Services

 Our design team has experience in Universal joint relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services

  raw materials → Cutting → Forging→Rough machining→Shot blasting→Heat treatment

  →Testing→Fashioning→Cleaning→Assembly→Packing→Shipping

3.Samples Procedure

 We could develop the sample according to your requirement and amend the sample constantly to meet your need.As for the conventional product, we could offer sample for free.

4.Research & Development

  We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control

  Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6.Certification

  Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

7.Packaging

  Packaging must be solid . Each product in unit box.Multiple products in carton box. All the goods in standard export wooden case. If you have your special requirement,like Logo printed , mark, color box...pls tell us!

8.After sale

   Any product have quality problem which caused by us, could be exchange for free!

9.Delivery

- Utilizing your own freight-forwarder

- FOB to a port in China

- CIF to a port near you

Whether you have your own freight-forwarder or you would like us to organize shipment; whether you require delivery FOB to a port in China or CIF to a port near you, we are happy to quote and supply whichever way you choose.

Please feel free to discuss all options with us.

Universal Joint, Cross Assembly.

We are factories specialized in manufacturing Universal Joint, Cross Assembly with nearly 20 years. Our manual production quantity is more than 500,000 sets. ISO9001 & TS16949 are our quality certifications.

Our Universal Joint, Cross Assembly is widely used in TOYOTA,NISSAN,MAZDA,MITSUBISHI,DAIHATSU,HINO,ISUZU,SUZUKI,KOMATSUI,HONAD,SUBARU,MERCEDES BENZ,VOLVO,SCANIA,DAF,CAT,HYUNDAI
cars, trucks and agricultural vehicle, construction machinery, paper making machinery, metallurgical equipment, axle etc. Both for OEM and Aftermarket.
If you are interested, pls do not hestitate to contact us,it is our pleasure to serve for you.
