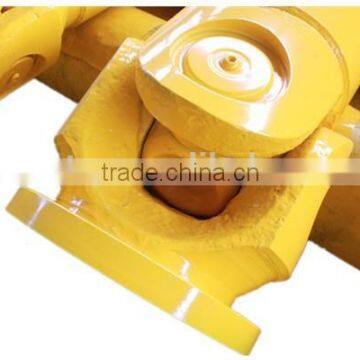

Universal Coupling Drawing SWC-390BH Cardan Shaft

universal coupling drawing

Zhejiang Baochuan Transmission Machinery Co., Ltd. is located in the beautiful West Lake is Xiaoshan, is apart from the Xiaoshan International Airport and 20 kilometers away from the Hangzhou Railway Station, Xiaoshan expressway exit of the 1 km, the traffic is very convenient.

Zhejiang Baochuan Transmission Machinery Co., Ltd. is a professional engaged in design, manufacturing, sales in one of the large-scale joint-stock enterprises, specializing in the production of SWC, SWP and SWL type cross shaft universal coupling and various types of automobile, agricultural machinery, engineering machinery transmission shaft. Universal joint, drive shaft and other types of art, the product has the advantages of reasonable design, large transmission torque, high transmission efficiency, low noise, long service life, wide application range, etc...SWC, SWP and SWL type cross shaft universal coupling used in rolling mill main drive and auxiliary transmission, also suitable for hoisting machinery, mining machinery, engineering machinery, petroleum machinery, vehicle, ship propulsion system, papermaking machinery, especially for metallurgical industry technical modification and renewal of mechanical product provide strong support. The drive shaft can be used for a variety of passenger cars, trucks, agricultural machinery, engineering machinery, products to meet different customer needs for the purpose.

The company has first-class production equipment, forging, heat treatment center to center and machining center. Production equipment of various types of CNC lathe, machining center, milling machine, boring machine, broaching machine, slotting machine and the dynamic balancing machines, meet light, medium, heavy and large parts, product demand, thus forming the specialization, serialization of the production pattern, the equipment investment is in the leading position in the same industry.

universal coupling drawing

1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging→Rough machining→Shot blasting→Heat treatment
→Testing→Fashioning→Cleaning→Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
6.Certification
Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.
7.Packaging
Packaging must be solid . All the goods in standard export wooden case. If you have your special requirement,like Logo printed , mark, color box...pls tell us!
8.After sale
Any product have quality problem which caused by us, we will help you solve!
9.Delivery
- Utilizing your own freight-forwarder
- FOB to a port in China
- CIF to a port near you
Whether you have your own freight-forwarder or you would like us to organize shipment; whether you require delivery FOB to a port in China or CIF to a port near you, we are happy to quote and supply whichever way you choose.
Please feel free to discuss all options with us.
