acrylic double board desktop cnc milling machine
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | JNCNC | |
| Model Number | desktop cnc milling machine | Voltage | AC110V/220V/380V,50HZ/60HZ, AC220V,50HZ | |
| Power(W) | 1.5KW(Spindle Power) | Dimension(L*W*H) | 360 x 360 x 80mm | |
| Weight | 120KG | Certification | CE,FDA | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.800-1000w spindle power are available2.Simple operation and installation
3.DSP operating system
4.OEM is available
5.CE
Acrylic PVC Desktop CNC Milling Machine
1. Brief introduction:
Mini smart cnc router with multi-functions, it can cut and engrave non-metal materials and also can configure water tank to cut and engrave metal materials.

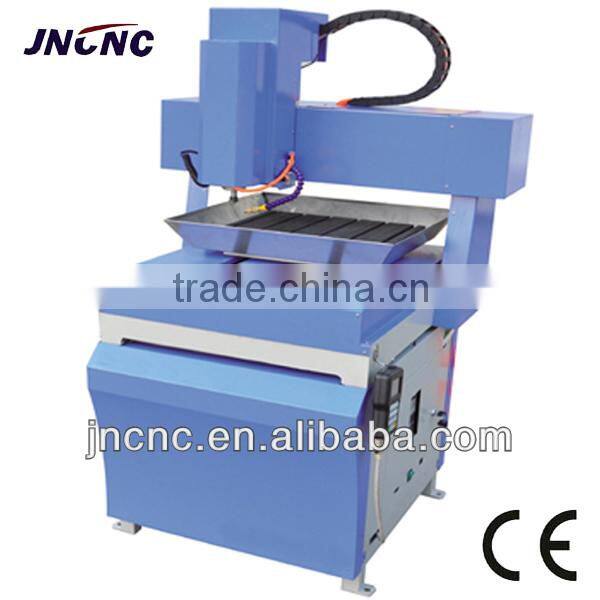

2. Desktop cnc milling machine picture:
3. Parameters:
Model Name | CNC-R3636 |
Working Area(X*Y*Z) | 360*360*80mm |
Spindle Power | 1.5KW |
Lathe Bed | cast |
Lathe Table | PVC |
XYZ guide rail | Round Rail |
XYZ transmission | Ball Screw |
Spindle | changzhou |
Inverter | 1.5kw |
Driver | chuangwei |
Operation Software | NC studio |
Typeset Software | Artcut (English) |
Processing accuracy | <0.05mm/300mm |
Reposition Accuracy | 0.02mm |
Max Moving Speed | 6000mm/min |
Max Engraving Speed | 4000mm/min |
Tool Diameter | φ3.175mm, φ4mm, φ6mm |
Working Voltage | AC110V/220V, 50HZ/60HZ |
Optional Equipment | 2.2 Spindle Power |
Square rail transmission | |
Water Tank | |
Dust collection system | |
DSP handle | |
Dust collecting system |
4.Feature:
1) Simple operation and installation
2) More steady and strong equiped with aluminum alloy frame materials
3) Can be controlled by computer or DSP handle
4) Emergency stop button enhance security

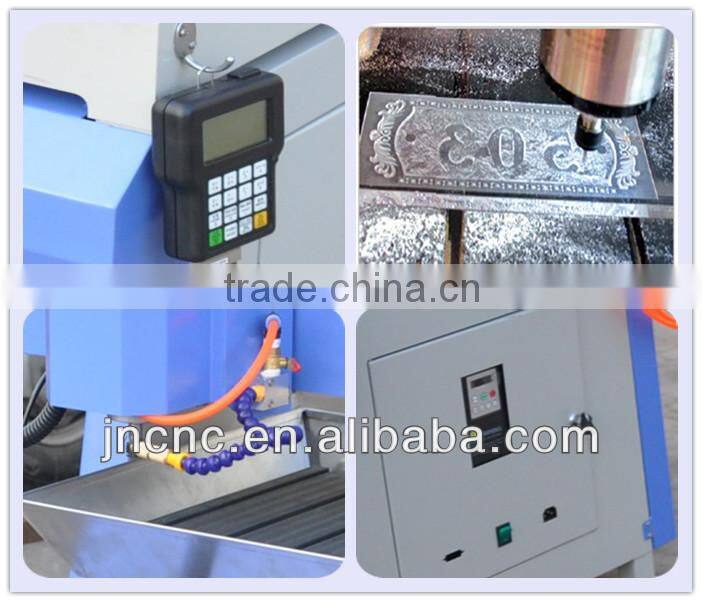

5. Main parts pictures:

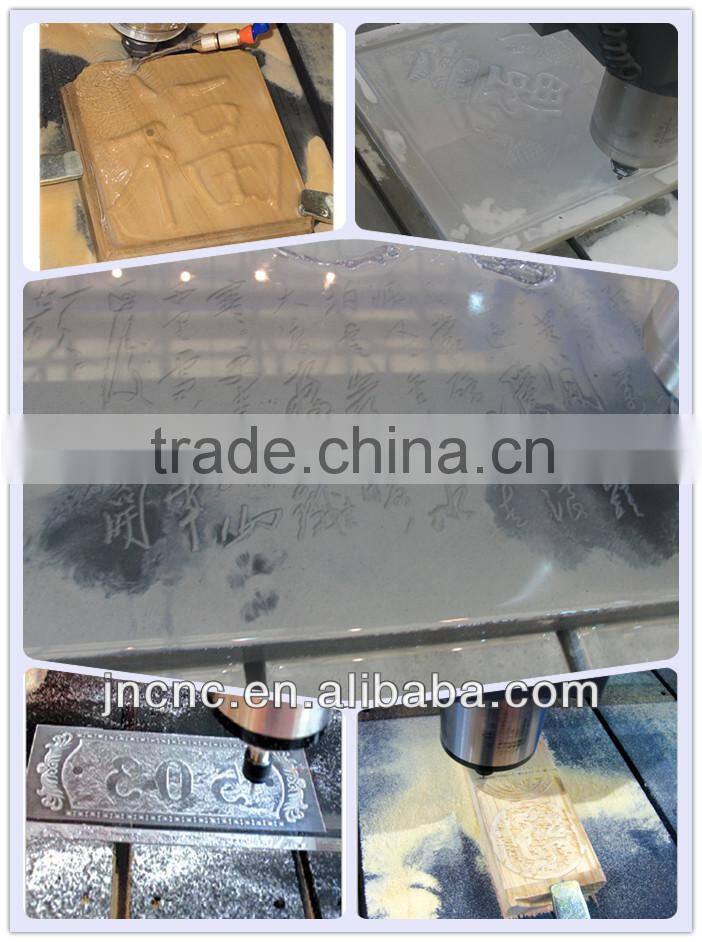

6. Samples pictures:

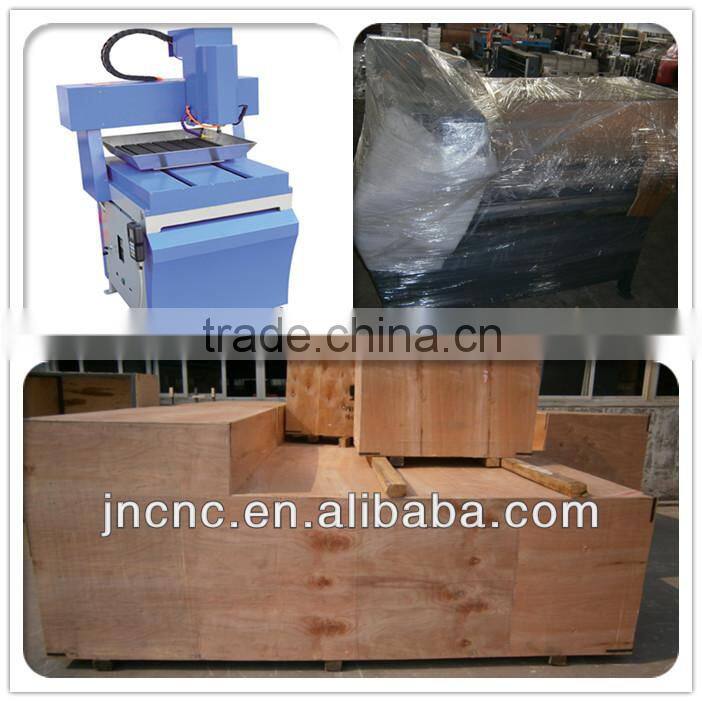

7. Packing pictures:
8.Factory show:
9 . Before and after service:
1) One year warranty for machine, free maintenance service within this period.
2) 24 hours online answer via skype, email.
3) Free training in our factory.
