CE Approved Mini CNC Router 6090
- Qingdao/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | JNCNC | |
| Model Number | cnc router 6090 | Voltage | 110V/220V | |
| Power(W) | 1.5KW | Dimension(L*W*H) | 600*900*100mm | |
| Weight | 260KG | Certification | CE, FDA | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. NC studio or DSP control system2. Ball screw or rack gear
3. Round rail or square rail
4. Optional water tank
5. CE/FDA
CE Approved Mini CNC Router 6090
1. Brief Introduction:
Mini smart cnc router with multi-functions, it can cut and engrave non-metal materials and also can configure water tank to cut and engrave metal materials.

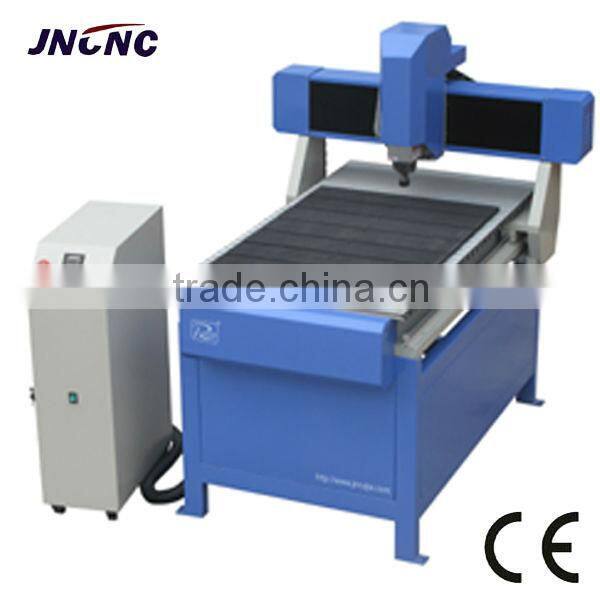

2. CNC Router 6090 Picture:
3. Parameters:
Model Name | CNC-R6090 |
Working Area(X*Y*Z) | 600*900*100mm |
Spindle Power | 1.5KW |
Lathe Bed | cast |
Lathe Table | PVC |
XYZ guide rail | Round Rail |
XYZ transmission | Ball Screw |
Spindle | changzhou |
Inverter | 1.5kw |
Driver | chuangwei |
Operation Software | NC studio |
Typeset Software | Artcut (English) |
Processing accuracy | <0.05mm/300mm |
Reposition Accuracy | 0.02mm |
Max Moving Speed | 6000mm/min |
Max Engraving Speed | 4000mm/min |
Tool Diameter | φ3.175mm, φ4mm, φ6mm |
Working Voltage | AC110V/220V, 50HZ/60HZ |
Optional Equipment | 2.2 Spindle Power |
Square rail transmission | |
Water Tank | |
Vacuum Table with air pump | |
DSP handle | |
Dust collecting system |
4. Pictures of Main Parts:
5.Features:
1) Internal cast lathe bed, solid and stable, without distortion.
2) Imported ball screws ensures stable and smooth movement of the machine.
3) Water-cooling brushless spindle, low noise, vigorous cutting strength
4) Subdivision driver ensures fast speed and high accuracy.
5) Dust-proof and water-proof design ensures the maintenance more easily.
6. Sample Picture:

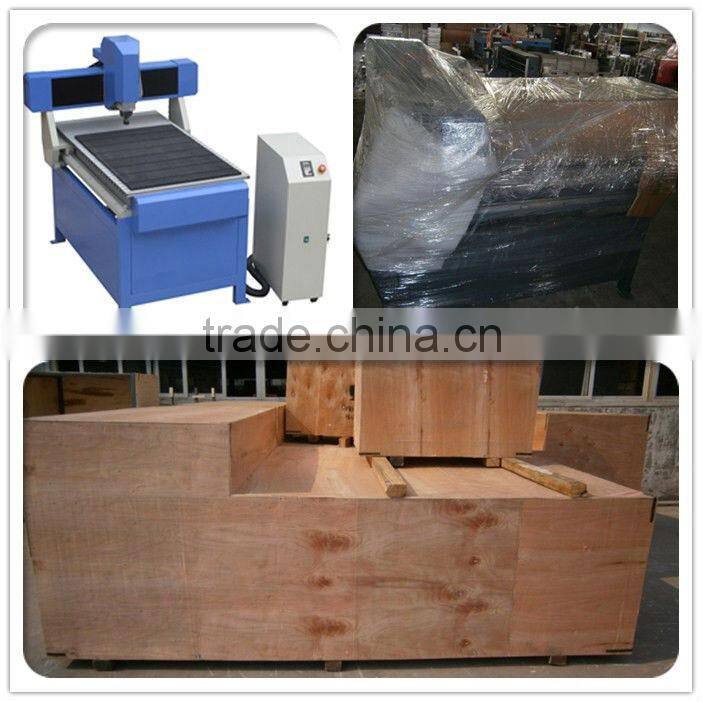

6.Packaging Show:
7.Factory Show:
8.Warranty and After Sales Service:
1) One year warranty for machine, maintenance free service within this period.
2) 24 hours online answer via skype, email.
3) Free training in our factory
