Home > Products > CNC Router > 1325 Vacuum Table CNC Woodworking Machine
1325 Vacuum Table CNC Woodworking Machine
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | JNCNC | |
| Model Number | cnc woodworking machine | Voltage | AC110V/220V/380V,50HZ/60HZ | |
| Power(W) | 2.2KW(Spindle Power) | Dimension(L*W*H) | 1300*2500*190mm | |
| Weight | 1250KG | Certification | CE,FDA | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.4-6 zones vacuum table is available2.DSP handle operating system
3.Suitable for wood door and furniture making
4.CE/FDA
1325 Vacuum Table CNC Woodworking Machine
1. Brief introduction:
This is a cnc woodworking machine with vacuum table and widely used in woden furnitures,wood
doors,,advertisementing billboard, letter mold forming,relief engraving and cutting.

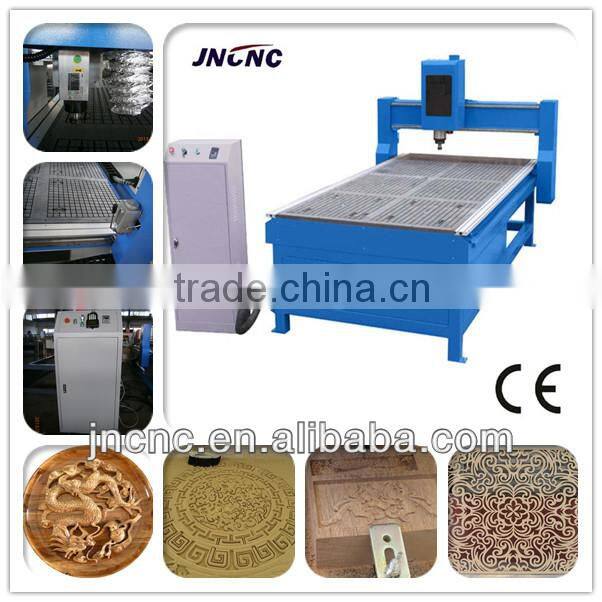

2. CNC woodworking machine picture:
3. Parameters:
Model Name | CNC-R1325 |
Working Area | 1300*2500*190mm |
Spindle Power | 2.2KW(water cooling) |
Lathe Bed | cast or welded |
Lathe Table | plastic sheet |
XYZ guide rail | Square Rail |
XY transmission | Rack Gears |
Z transmission | Ball Screw |
Spindle | Changzhou |
Inverter | Rituo or other brands |
Driver | Leadshine882 |
Working Dictate | G Code |
Operation Software | DSP handle(option: NCstudio) |
Typeset Software | Artcut (English) |
Working Dictate | G Code |
Processing accuracy | <0.05mm/300mm |
Max Engraving Speed | 20,000mm/min |
Spindle rotational speed | 6000-24000rpm |
Tool Diameter | Φ3.175mm,Φ6mm,Φ12.7mm |
Working Voltage | AC220V/50Hz,380V/60Hz |
Dust collecting system | Dust exhaust pump(3.0kw) |
Vcauum absorption system | air pump(5.5kw tongyou) |
Optional equipment
| Vacuum table-bakelite sheet |
Mist sprayer and flume | |
Air cooling Italy HSD spindle | |
Rotary device with Dia 80mm/100mm/200mm |
4. Features:
1) Imported linear square guide rail ensures high accuracy and maximum work load-bearing.
2) Function of continuous working at stop point by power failure.
3) Vaccum table , it is a professional wood door making and furniture making machine.

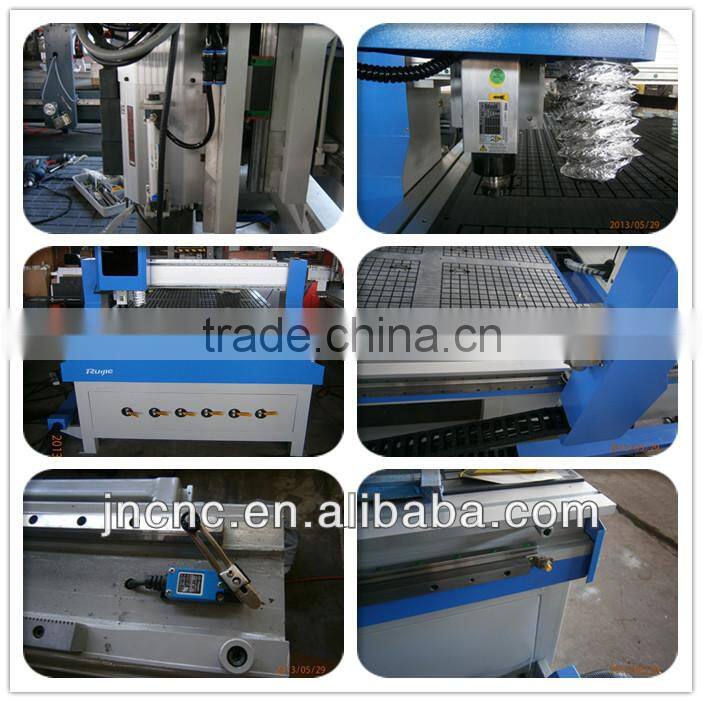

5. Main parts picture:
1) DSP handle control
2) Optional Italy HSD air cooling spindle
3) Vacuum table
6. Samples pictures:

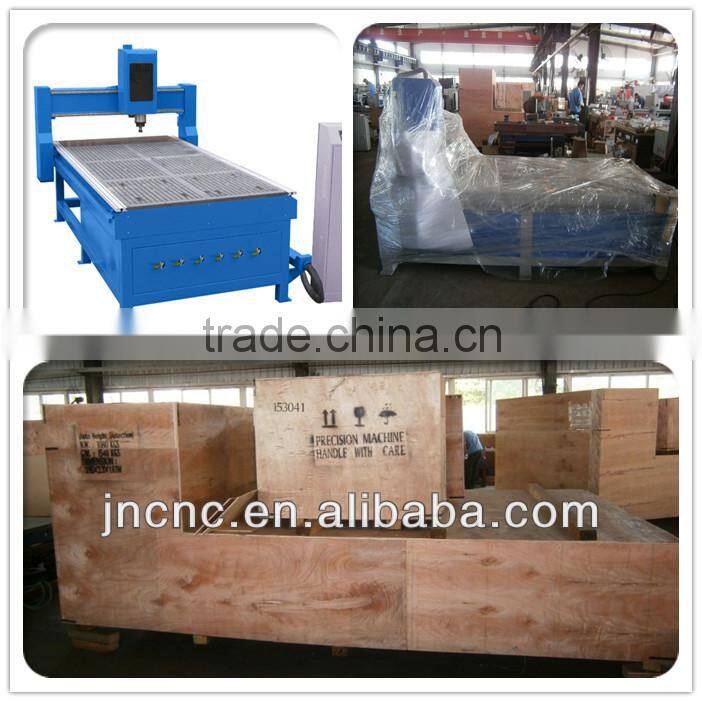

7. Packing details:

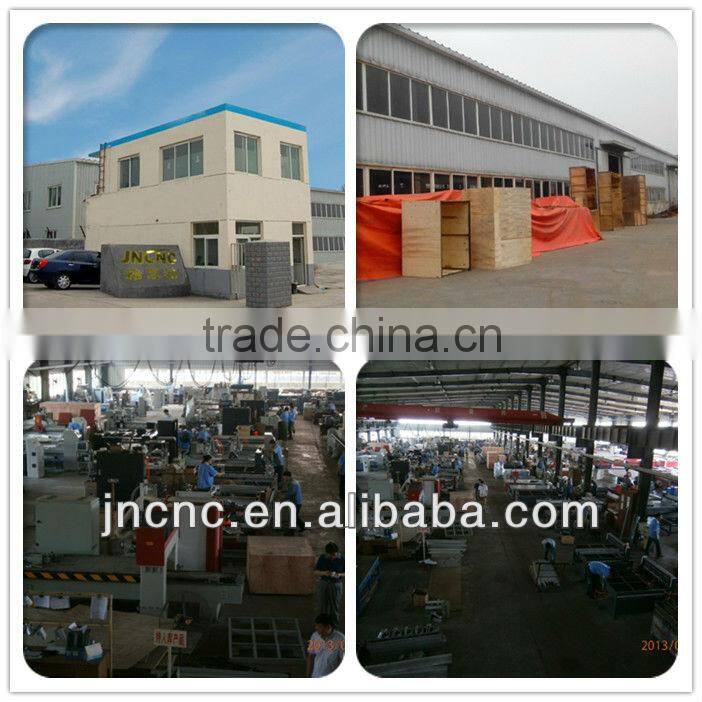

8.Factory show:
