Home > Products > Rotary Drilling Rig > HF856A Crawler Type Economic Rotary Drilling Rig
HF856A Crawler Type Economic Rotary Drilling Rig
- Qingdao Shanghai Tianjin
- T/T
You May Like
Product Details
| Condition | New | Efficiency | High Efficiency | |
| Place of Origin | Henan, China | Brand Name | HANFA rotary drilling rig | |
| Model Number | HF856A rotary drilling rig | Weight | 38000kg | |
| Dimension(L*W*H) | 18050mm*3200mm*7297mm | Certification | CE Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

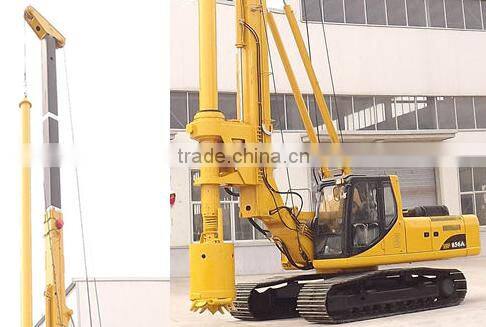

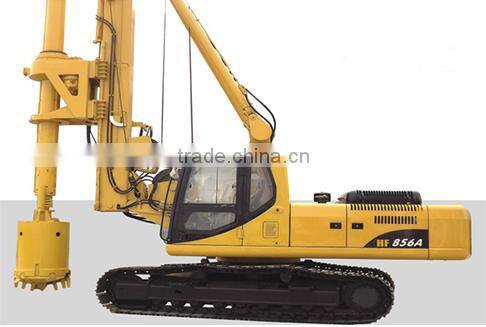

HF856A crawler type economic rotary drilling rig
Application:
1.Adopting telescopic mast structrre which owns simple structure.
2.The shape axle bed structure is used to fax boom and link arm(+-shape).
3.Triangular structure between link arm and amplitude cylinder increases the machine stability.
Technology date:
Parameter Type | HF856A | |
Drilling diameter | 600-1000mm | |
Max drilling depth | 56mm | |

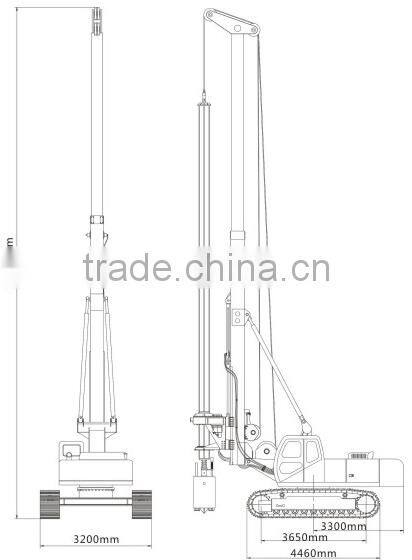

Overall measurement | Working dimentions | 18050mm×3200mm×7297mm |

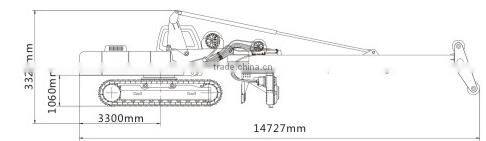

Transport dimentions | 14727mm×3200mm×3325mm | |
Machine Weight | 38000kg | |
Engine | Model | B5.9-C Cummins(USA) |
Rated power | 112kw | |
Type | Turbocharged direct-injection | |
Rotary drive | Max.torque | 80kn·m |
Rotation speed | 1-22rpm | |
Crowd cylinder | Max.push | 150kn |
Max.pull | 100kn | |
Max.stroke | 2000mm | |
Main winch | Max.line pull | 120kn |
Max.line speed | 70m/min | |
Rope diameter | 24mm | |
Auxiliary winch | Max.line pull | 60kn |
Max.line speed | 50m/min | |
Rope diameter | 18mm | |
Mast inclination | Free adjustment farwards/back wards | 0-93° |
Free adjustment left/right | ±3° | |
Electronic Management System | Long distance monitor system | Available |
Drilling record system | Available | |
On car printer | Available | |
Chassis | Chassis modality | Customizable |
Max travel speed | 2.0km/h | |
Min ground clearance | 500mm | |
Track width | 800mm | |
Hydraulic system pressure | 300bar | |
Same series for your choice:
Model | Drilling diameter | Max drilling depth | Rotary drive torque, rotation speed | Engin type/rated power |
HF850A | 600-1600mm | 46m | 80kn·m,1-22rpm | B5.9-C Cummins/ 112KW |
HF128A | 600-1500mm | 42m | 50/102kn·m, 38/20rpm | B5.9-C Cummins/ 113KW |
HF168A | 600-1800mm | 44/56m | 80/165kn·m, 24/12rpm | B5.9-C Cummins/ 133KW |
HF525 | 1400mm | 25m | 50kn·m,1-20rpm | B5.9-C Cummins/ 86KW |
HF530 | 0-1200mm | 30m | 50/60kn·m,1-22rmp | B5.9-C Cummins/ 86KW,112KW |
HF630A | 300-1200mm | 30m | 55kn·m,0-22rpm | B5.9-C Cummins/ 86KW |
HF320A | 300-1200mm | 20m | 30kn·m,0-22rpm | B5.9-C Cummins/ 86KW |
Certificates:
About us:
Hanfa Group

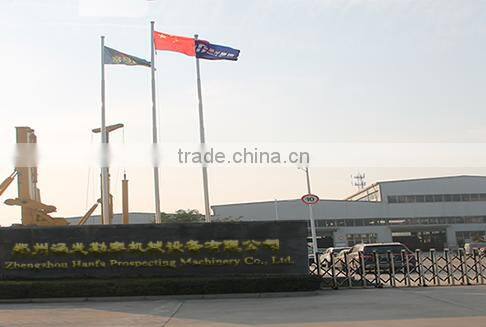

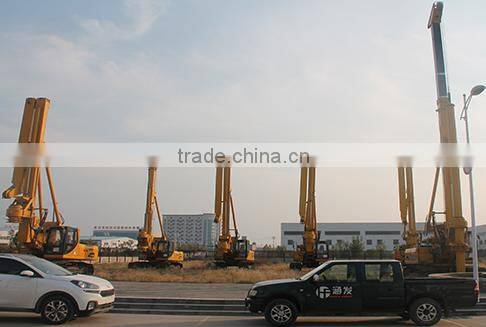

Factory Show
The Exhibition In South Africa
Customer Visit

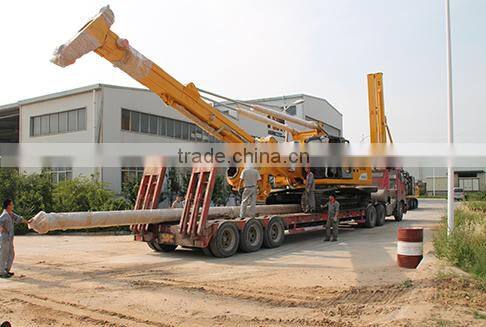

Exported To Columbia
Sales manager:Vincent Guo
Office tel:+0086-371-55019599
After sales: +0086-371-67990387
Accessories:+0086-371-55019184
Email Address:admin@
Hanfa Website:
Contact Us
- Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
- Contact nameVincent Guo Chat Now
- Phone86-0371-67990397
- AddressYulan Street, High-tech Zone, Zhengzhou City, Henan Province, China., Zhengzhou, Henan
