SSI positon sensor pressure transmitter

FOB Price

USD $300 - $1,000 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Hong Kong
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Germany	Brand Name	Germanjet
Model Number	19P Series	Usage	Position Sensor
Theory	Other, Magnetostrictive	Output	Digital Sensor

Product Description

Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

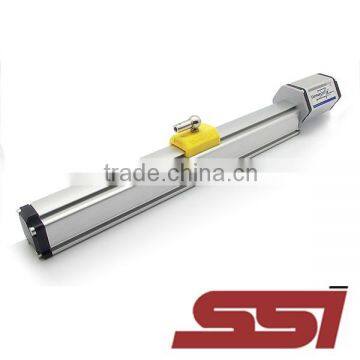

P model - Aluminium Profile

P model is designed for machine equipment. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment.

Order Code	192
Output	SSI
Measurement Type	Linear displacement
Data Format	Binary or Grey
Data Length	8 - 32 bits
Data Speed	Cable Length : <3 <50 <100 <200 <400 m
	Baud rate : 1000 <400 <300 <200 <100 kBd
Update Time	Measuring Length : 300 750 1000 2000 5000 mm
	Measurement/sec : 3.7 3.0 2.3 1.2 0.5 kHz
Resolution	Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm
Repeatability	< +/-0.001% of full scale (minimum +/-2.5μm)
Non-Linearity	< +/-0.01% of full scale (minimum +/-40μm)
Update Time	0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm
	2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Power Consumption	100mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Connector Type	D60 Male
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP67 (with connector)
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6
