Most portable metal detector,HF-MPI mineral water detector

Specifications

Most portable metal detector,HF-MPI mineral water detector

Compare with traditional electric prospecting instrument:

Main application
     Use natural electric field and resistivity parameter produced by different of the geologic structure. It is widely using in prospecting metal minerals, non-metal minerals, underground water prospecting etc. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Only one person will finish indoor and outdoor work
      Do not need manual power supply,small cubage,light weight,carry about,high efficiency and exact address. It get over the default that traditional equipments have such as need many people to work together, heavy weight, complicated operation, low working efficiency and long lines.

Press one button to finish all the survey operations
      Machine is automatic control by micro PC. Easy operation. A press one button to finish all the operation. It does not need especial knowledge. When the survey is finished, press the button to display the curve and you can analyze at the same time.

High anti-jamming capability
You can get the good curve in the noise road and high electric jamming area for signal via frequency selector and digital processing.

Get survey parameter through Multiple-frequency, Multi-aspect and multi-measurement.
      It can survey in different position, do fixed point survey, solve same special geophysical problem and gather multi-measurement parameter through different kinds of survey method.

Widely application and flexible using
     using for locator underground water, minerals and solve engineering geophysical problem and geophysical disaster. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Main functions and features
1. Automatic noise reduction; super anti-jamming.
2. 3 frequencies or 30 frequencies measuring at one time.

3. Operating functions are all on the LDC screen, easy operation.
4. Auto-measuring, auto-stocked data. It doesn’t need to record the measured data and the data won't be lost when power off.
5. It can storage 20 curve measuring data of3 frequency and 30 frequency.
6. Curve and data are displayed on LCD screen. Curve and data also can print by micro printer or PC printer.
7. Power supply rechargeable battery.
8. Electrode test and power monitor
9. Whole weight.2KG, size: 24CM×13CM×16CM

2. Specifications

Product Configuration

·5 inch LCD screen, support 240*128 dot matrix

·Intelligent controller, 22MHz frequency

·High sensitivity, high impedance, differential input probe

·Tri-band beneficiation technology

·50Hz/60Hz filtration technology, eliminate frequency interference

·Save up to 10 groups of measurement data, each measurement data

contains up to 16 data

·Simple time display and temperature display

·Support for external serial printer (special type)

·Built-in battery 12V/1.2AH

·Support two kinds of chargers: AC-DC 12V charger and DC 12V dedicated

car charger

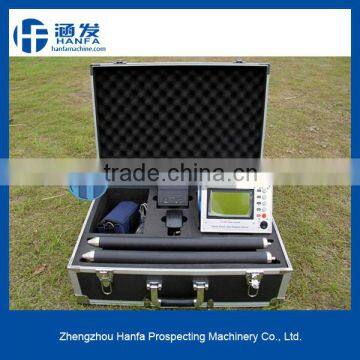

HF-MPI Mine Locator Accessories

HF-MPI Mine Locator (including charger) 1 unit

Special printer (including charger) 1 unit

Measuring electrode 1 pair

10m cable 2 pieces

Conversion cable 1 piece

Print paper 2 volumes

Instrument strap 1 piece

Operation Manual 1

Accessories 1 set

Product parameters

1,Frequency: (Hz C/S)

Three-frequency measurement: Each measuring point measures the following

three frequency data: 25,67,170

Multi-frequency measurements: A measuring point for fixed-point

measurement, measuring the following 30 frequency data:

20,30,40,50,60,70,80,90,100,110,120,130,140,150,170,190,210,230,250,300,350,400,460,500,700,900,1100,1300,1500,2000

Each frequency range allows the election: Center frequency ±1%

2,Measurement parameters: Magneto telluric different frequencies electric

field component

ΔV⊥s,ΔV,s (mV)

3,Measuring range: 1 uV-250mV, instrument automatically converted range

4,Input impedance: >10MΩ

5, Power: 12V/1.2AH battery

6,Work environment: Temperature (-10°C—+45°C), relative humidity: ≤85%
