Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

D model - Sensing Rod Detached

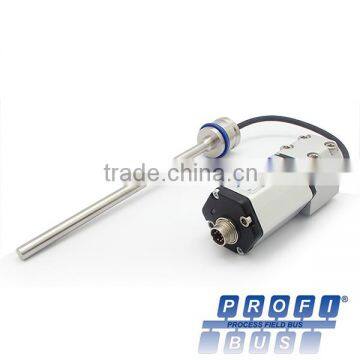

D model is design for hydraulic cylinder with limited head space or clevis rod ends hydraulic cylinder. Sensing rod is made by stainless steel which installed inside the hydraulic cylinder. It is connected to the electronic module installed at the outside of the cylinder by a robust cable.

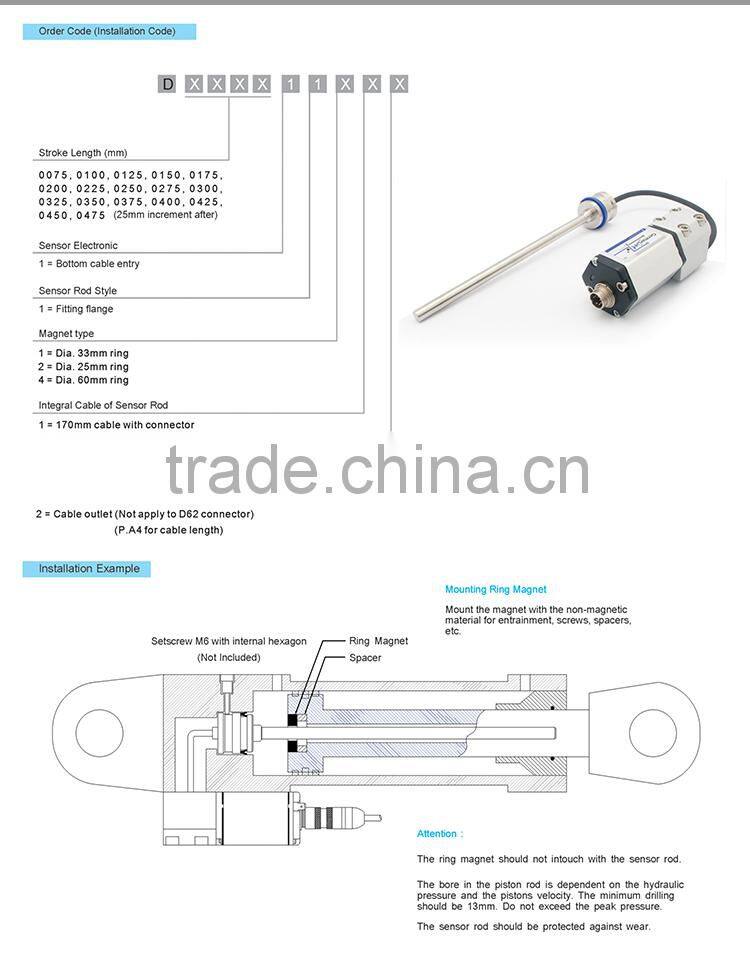

Order Code	195
Output	Profibus
Measurement Type	Linear displacement
Data Protocol	Profibus-DP (EN-50 170)
Output Signal	Profibus-DP System according ISO 74498
Baud Rate	Max 12Mbit/s
Resolution	Position: 5μm/ other values selectable via GSD file
Resolution	Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm
Repeatability	< +/-0.001% of full scale (minimum +/-2.5μm)
Non-Linearity	< +/-0.01% of full scale (minimum +/-40μm)
Update Time	0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm
	2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Power Consumption	100mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Connector Type	D60 Male
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP67 (with connector)
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6

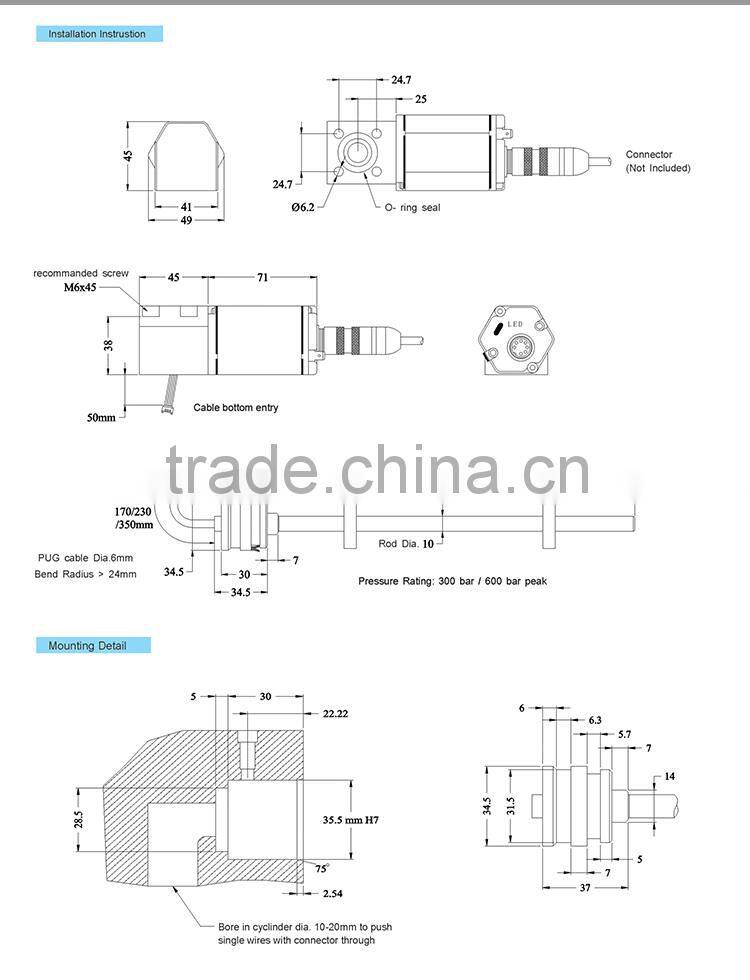

Installation
