Profibus Output Magnetostrictive Linear Positon Sensor
US$ 300 - 1,000
/ Piece
1 Piece(Min. Order)
- Hong Kong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Profibus Output Magnetostrictive Linear Positon Sensor
-
CANBus Output Magnetostrictive Linear Positon Sensor
-
Profibus Magnetostrictive Linear Positon Sensor
-
Analog Flexible Magnetostrictive Linear Position Sensor
-
SSI Flexible Magnetostrictive Linear Position Sensor
-
Profibus Flexible Magnetostrictive Linear Positon Sensor
Product Details
| Place of Origin | Germany | Brand Name | Germanjet | |
| Model Number | 19H Series | Usage | Position Sensor | |
| Theory | Other, Magnetostrictive | Output | Digital Sensor |
Product Description
Product Description
Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor
H model - Hydraulic Rod
H model is designed for hydraulic cylinder. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily; Hydraulic fluid doesn't need to be withdrawn when doing sensor calibration or replacement. This design greatly reduces the down time and improves efficiency.

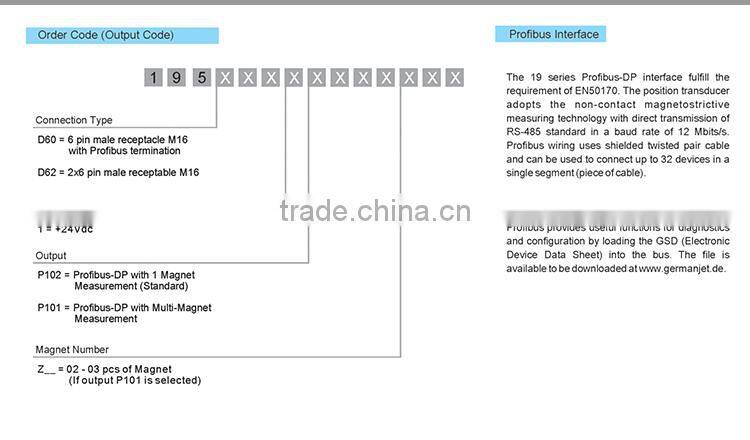

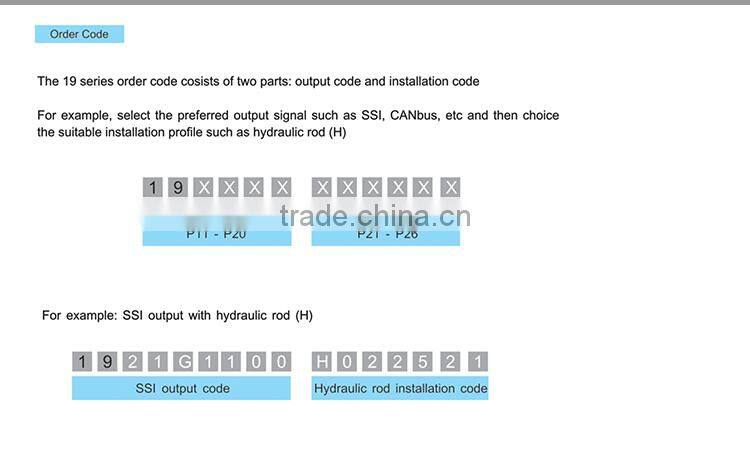

| Order Code | 195 |
| Output | Profibus |
| Measurement Type | Linear displacement |
| Data Protocol | Profibus-DP (EN-50 170) |
| Output Signal | Profibus-DP System according ISO 74498 |
Baud Rate | Max 12Mbit/s |
| Resolution | Position: 5μm/ other values selectable via GSD file |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |

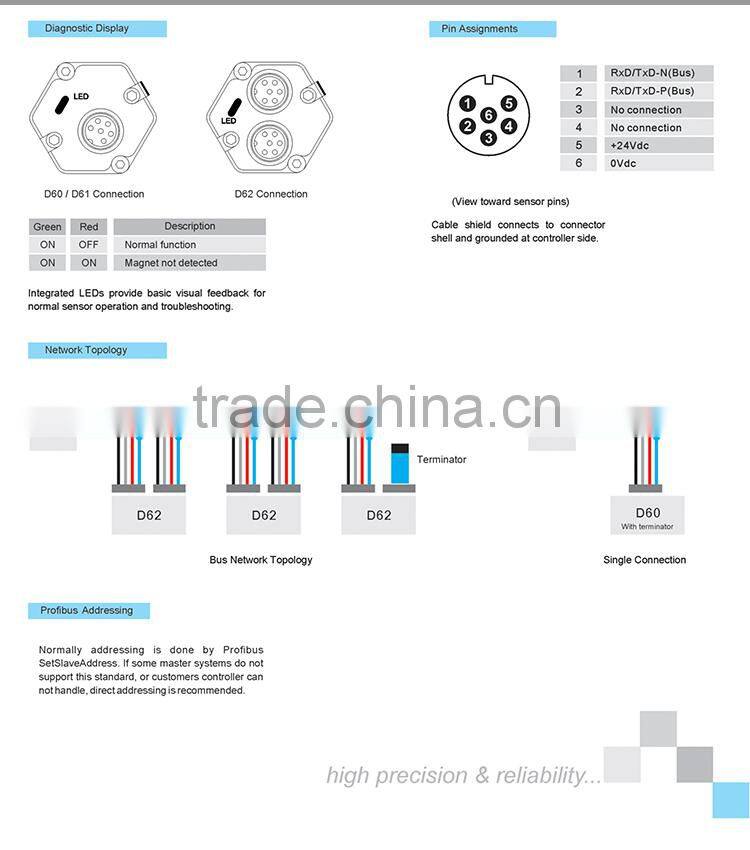

| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |

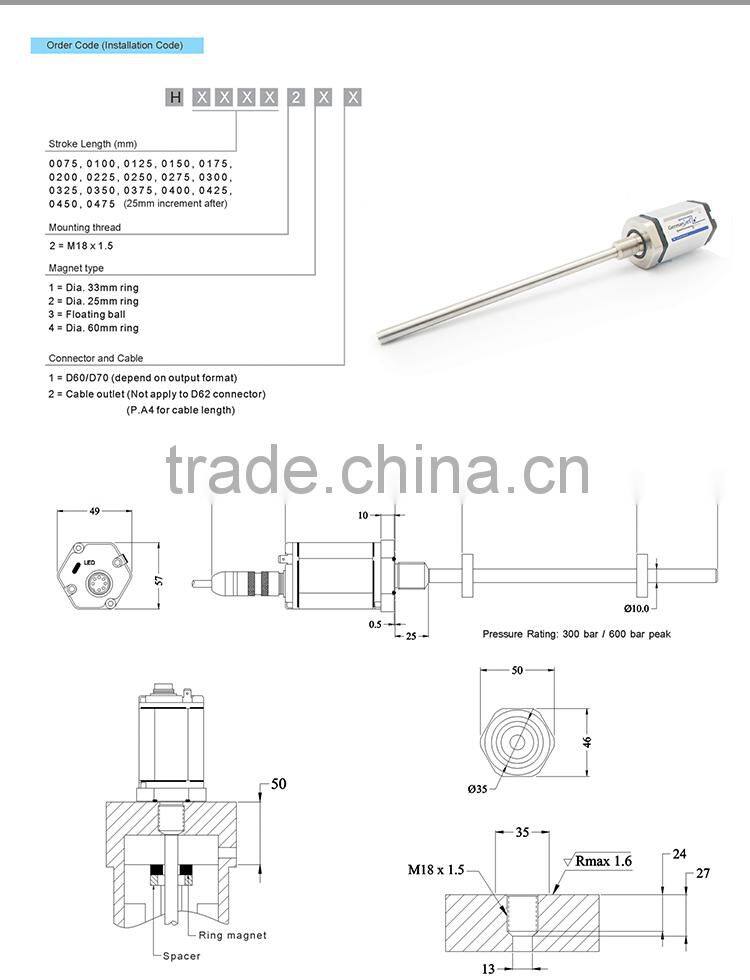

Installation
