PENGPU 220HP bulldozer PD220Y-1
- Shanghai
- L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | PENGPU | |
| Model Number | PD220Y-1 | Condition | New | |
| Moving Type | Crawler Bulldozer | Machine Weight | 24500kg | |
| Dimension(Long * Breadth * High) | 5750*3725*3575mm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

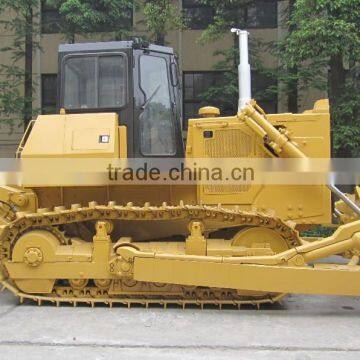

PENGPU 220HP Bulldozer PD220Y-1
Parameters
NO | DESCRIPTION | UNIT | SPECIFICATON | |||
1 | MODEL | / | PD220Y-1 | |||
2 | Engine | Model | / | Chongqing Cummins NT855-C280S10 | ||
Type | / | Straight vertical, four-stroke, water cooling, direct injection type. Turbocharger. | ||||
Number of cylinder-bore*stroke | mm | 6-139.7*152.4 | ||||
Displacement | l | 14 | ||||
Fly wheel/rated revolution | kW/r/min | 162/1800 | ||||
Min. fuel consumption | g/kw.h | ≤235 | ||||
3 | Start method | Type | / | Electric starting motor | ||
Starting motor | V/kW | 24V/11kW | ||||
Voltage/power | ||||||
Battery | / | 24V(12V*2)-195Ah | ||||
4 | Lubrication system | Lubrication type | / | Forced lubrication. | ||
Cooling type | / | Water cooling | ||||
7 | Air filter type | / | Dry type, precleaned cyclone air cleaner. | |||
8 | Transmission system | Hydraulic torque converter | / | 3-element, single stage, single phase | ||
Transmission
| / | Hand operated, hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump. | ||||
Bevel gear | / | Helical bevel gear, splash lubrication. | ||||
Steering clutch | / | Wet, multiple disc, spring loaded, hand-operated with booster and hydraulic released. | ||||
Steering brake | / | Wet, band brake, operated with hydraulic booster. | ||||
Final drive | / | Spur gear, double reduction, splash lubrication. | ||||
9 | Travel Speed | Forward | 1st | km/h | 0-3.6 | |
2nd | km/h | 0-6.5 | ||||
3rd | km/h | 0-11.2 | ||||
Reverse | 1st | km/h | 0-4.3 | |||
2nd | km/h | 0-7.7 | ||||
3rd | km/h | 0-13.2 | ||||
10 | Under carriage | Suspension system | / | Equalizer bar | ||
Track tension | / | Hydraulic-adjusted | ||||
Sprocket | pics | Segmented | ||||
Number of track rollers (each side) | pics | 6 (4 single, 2 double) | ||||
Number of carrier rollers (each side) | pics | 2 | ||||
11 | Track | Type | / | Sealed single grouser | ||
Track pitch | mm | 216 | ||||
Number of track shoes | pics | 38 | ||||
Track gauge | mm | 2000 | ||||
Length of track on ground | mm | 2730 | ||||
Track width | mm | 560 | ||||
Ground pressure | MPa | 0.078 | ||||
Ground clearance | mm | 405 | ||||
12 | Hydraulic system of work equipment | Pump type | / | CBT3160 gear pump | ||
Rated delivery | L/min | 257 | ||||
Control valve | / | Hand-operated, servo valve. | ||||
Working pressure | MPa | 13.7 | ||||
Fuel tank | L | 110 | ||||
Blade Max. lift above the ground | mm | 1210 | ||||
Blade Max. drop below the ground | mm | 540 | ||||
Max. lift speed | m/s | 0.35 | ||||
Max. tilt | mm | 735 | ||||
Pitch adjustment | 0 | 55 | ||||
13 | blade | type | / | Straight tilt blade | ||
Dimension | mm | 3725*1315 | ||||
Blade capacity | m3 | 6.44 | ||||
15 | Mix. Turning radius | m | 3.3 | |||
16 | Ground ability | 0 | 30 | |||
17 | Dimension without ripper | mm | 5750*3725*3575 | |||
Dimension with ripper | mm | 7530*3725*3575 | ||||
18 | Operating weight without ripper | kg | 24500 | |||
Operating weight with ripper | kg | 26800 | ||||
Detail Pictures
Packaging&Shipping
Certificate
Cooperative Factories
Any questions, please feel free to contact me.
