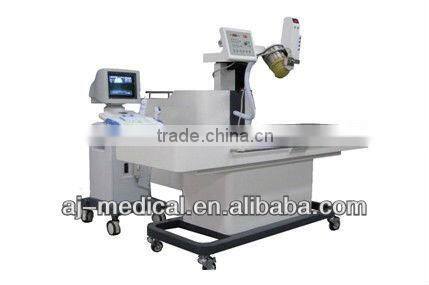

Extracorporeal Shock Wave Lithotripter ESWL-BI With Ultrasound Scanner Localization

Specifications

Extracorporeal Shock Wave Lithotripter

With Ultrasound Scanner Localization

(Electromagnetic Shock Source)

ESWL-BI

FEATURE

Excellent positioning system

The original creation of the advanced digital tracking localization system makes the complex ultrasound localization easy and quick.

The only thing the patient should do is to lie down comfortably,and the localization and launch system can move back and forth ,left and right ,up and down,parallelly,or along an arc,thus making the motion more agile and localization more swift.

Distance parallel institutions to rely on micro-computer digital direct-reading system can quickly locate stone

 Electromagnetic shock wave

1.Low noise,long life ,no electrode,low cost,wide use,easier maintenance.

2.The Electromagnetism Panel is using current model of vacuum

3.Lithotripsy treatment of long-term stability

4.Independent water supply system

Excellent mechanical properties

1.Positioning system uses high-precision ball guide to maintain the long-term stability of mechanical properties

2.Solid surface of the machine frame through the spray treatment, beautiful, excellent anti-rust properties to ensure the durability

Integrated structure of high-quality machine

1.The shell is made of ABS engineering plastic which makes the whole instrument firm ,light,waterproof and easy to move .

2.The therapy room only occupies 20m² or more and doesn’t need any shield.

3.Compact,highly integrated device equipped with a removable round of treatment beds.

The keyboard control box

The drawer style keyboard control box with light and IC digital control system ensure the correctness of the operation in the dark.

Extracorporeal shock wave lithotripter

1.Optimized electromagnetic shock wave generation for omni-bearing treatment

2.Overhead mechanical arm

3.Patent ultrasound focalization technique with numerical control

4.Up-to-date shell design

Better human design

Simplify mechanical focalization with ultrasound measurement

More Intuitive operation

Higher success rate ensured by real-time calculi observation

Computer Administer System (Optional)

The computer administer system can save the pictures before and after therapy, write down case history, and consequently make it easier to deal with the case history and to trace callbacks.

SPECIFICATIONS

1. Shock source: Electromagnetic
(1) Reflector:
Second focal point and the generator surface ≥135mm

Realize the high efficient lithotripsy with low voltage.
(2) Lens

Discharge the electrode, it’s easy to wear off and should be replaced before each therapy of a new patient.
(3) Focal point:
X axis: diameter
Y axis: ≤±7mm
Z axis: ≤±80mm
(4) Shock wave
Pulse width: 1μs
Wave front: 0.5μs
(5) Operating voltage: 14-18KV
Shock energy: 98-144.5J±

The travel range of the reflector:
Back and fore:240±2mm
Right and left:240±2mm
Up and down:240±2mm   parallelly:100mm

2. Integrative Main Frame and Drawer Style Console
(1) Electrical source: 220V
Continuance: ≤1A
Pulse: ≤3A
(2) Small volume
Area required of the therapy room: ≥12sq.m.
(3) Ultrasound diagnosing device can be emplaced next to the ultrasound
localization system, thus realizing two usages in one machine.

(4) the biggest advantage of electromagnetic shockwave device is its long service life, which is over 100 thousand (10⁵)times.

3. Integrative Main Frame and Drawer Style Console

(1) Small volume
Area required of the therapy room: ≥12sq.m.
(2) Ultrasound diagnosing device can be emplaced next to the ultrasound
localization system, thus realizing two usages in one machine.

MAIN ACCESSORIES

1. Electromagnetism Panel, Lens

the biggest advantage of electromagnetic shockwave device is its long service life, which is over 100 thousand (10⁵)times.

1. Water Pocket

Water pocket is made of emulsoid product. It must be washed up by fresh water and hung in cool-shade place for drying. Be sure not to let it have a chance to touch orgunise—solvent petrol etc.

3. H.V.Capacitor0.5µF

H.V.charge range : 14-18KV

H.V. power storage range: 18-50J

4. Discharge Tube

5. Electrode: Sharp touch with the same tip of two electrode as the pattern of electrode as the pattern of electrode discharge, discharge times≥2000 . electrodes gap in no more than 3mm , the deviation of diameter direction of both touching tip is no more than 1 mm.
