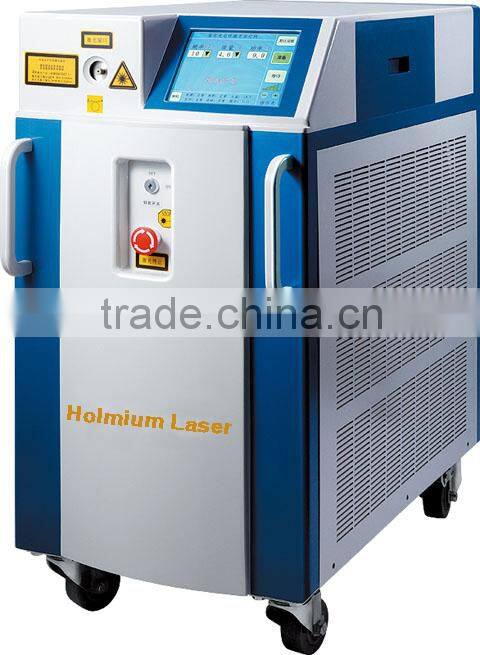

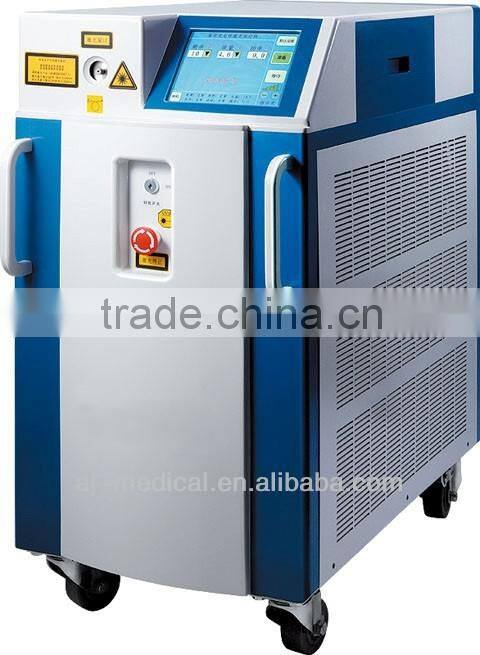

HOL-40W Medical Surgery Instruments Holmium Laser Surgery Equipment

Specifications

holmium laser lithotripsy equipment/ laser surgery equipment

1.Model: 40W
2.Output power: 2.5-40W
3.Pulse energy: 0.5-4.0J
4.Repetition rate: 5-20Hz

Holmium Laser / Ho Yag Laser HOL-40W

Specification

The wavelength of Holmium Laser is 2.1 μm, at the peak of water absorption. The laser energy can be highly absorbed by water in tissue and calculus. Through small evaporation explosion in stones and parenchyma vaporization, it could be used to shatter stones or conduct tissue incision. As the penetration depth of holmium laser in tissue is less than 0.4mm, there will not be a mistaken incision and perforation or other complications in operation, which assures the operation safety. Holmium laser could be widely used in urinary surgery, dermatology, gynecology, gastroenterology, general surgery, ENT etc.

Applications

Urinary surgery

Urinary urolithiasis

Incision of ureteral and urethrostenosis

Resection of bladder tumor

ENT

Plastic Surgery

Gynecological Surgery

Dermatology

Gastroenterology,

General surgery

Technical Parameters

Model: 40W

Output power: 2.5-40W

Pulse energy: 0.5-4.0J

Repetition rate: 5-20Hz

Wave length: 2100nm

Aiming beam: 532nm Green, Optional 635nm Red

Optical fiber: 550micron reusable, Optional 800micron and 1000micron & 365micron

Cooling system: Built-in water cooling system

Dimensions:89×45×90cm

Weight: 130KG

Standard Accessories

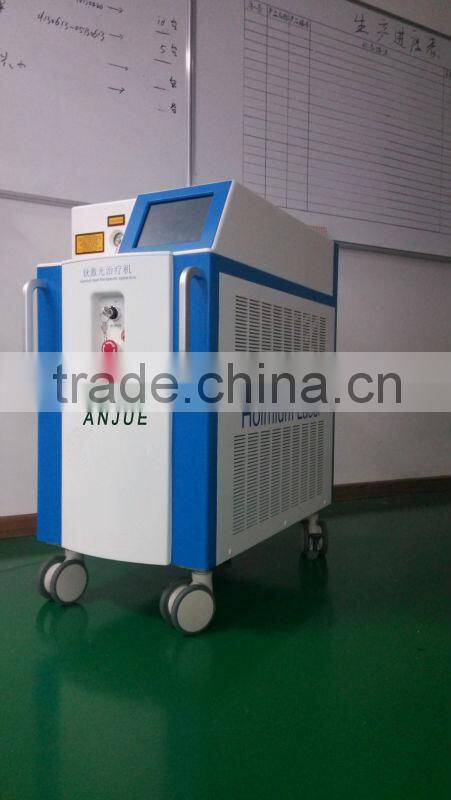

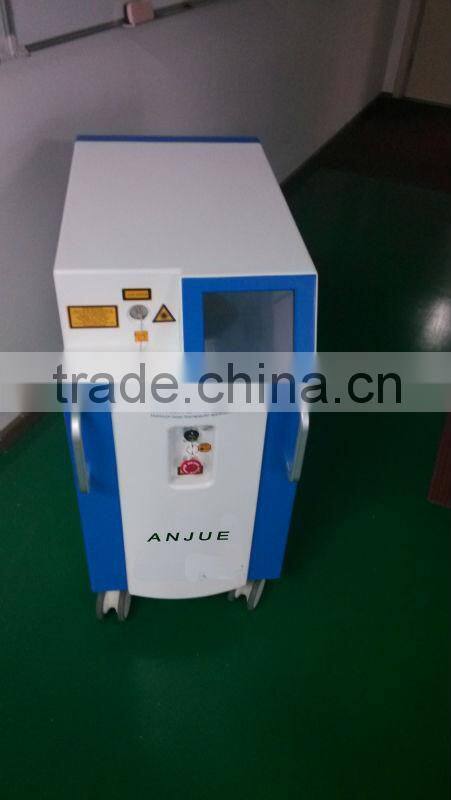

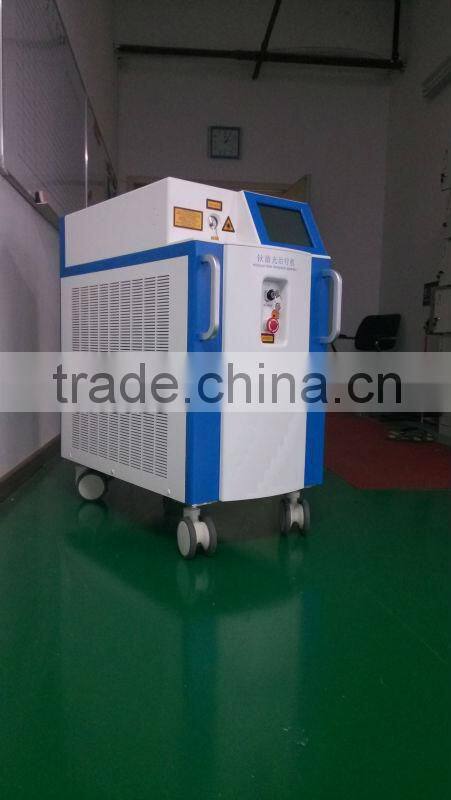

1 unit Main Unit

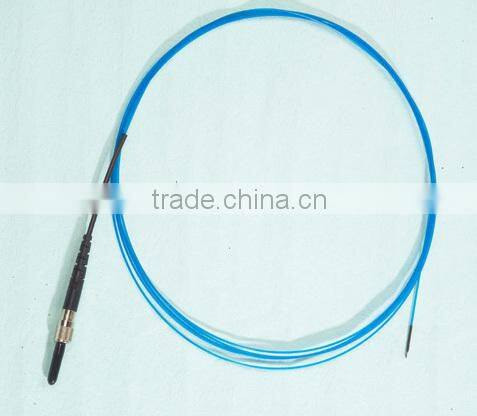

2 pcs Optical Fiber

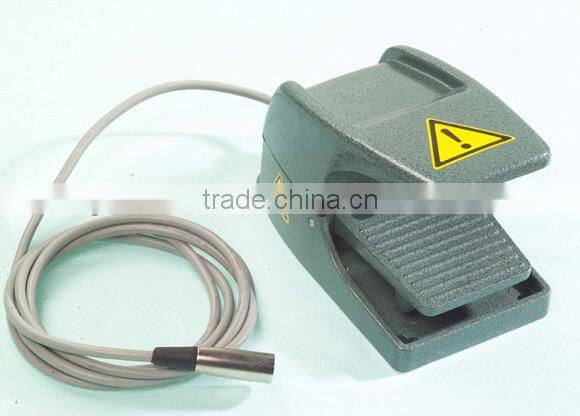

1 pcs Foot Switch

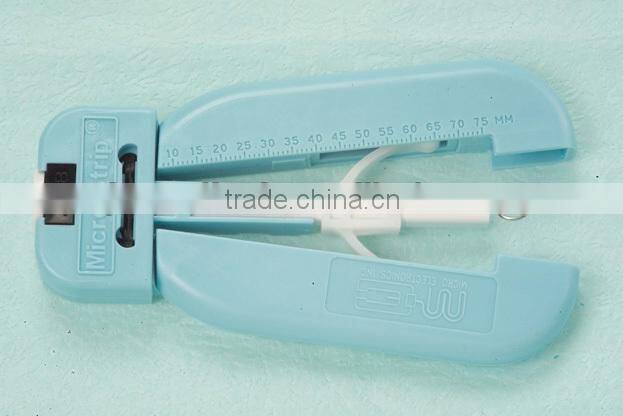

1 pcs Fiber Stripper

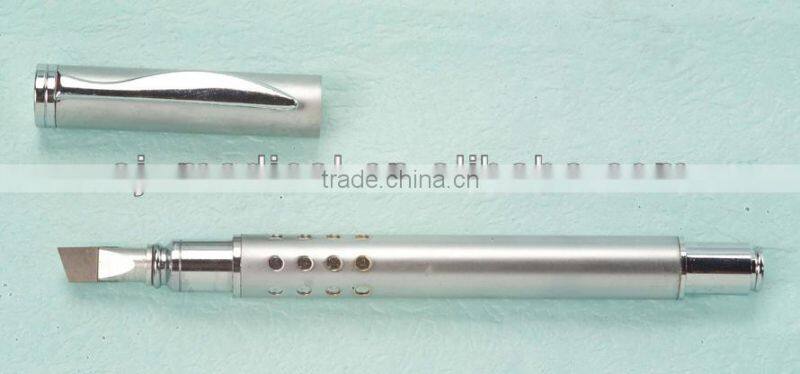

1 pcs Fiber Cutter

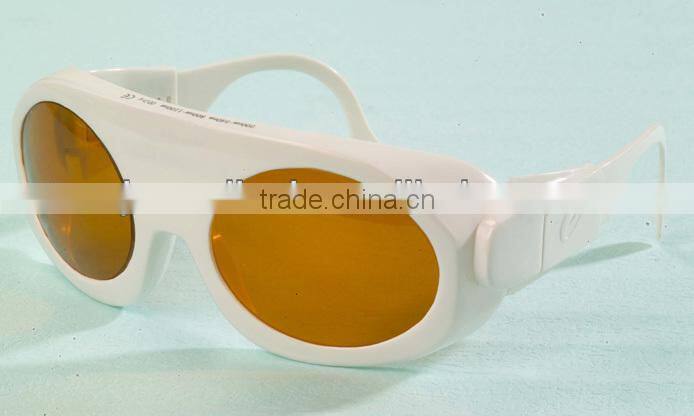

1 pcs Goggles

  Calculus Removal                                      BPH Resection                          Ureteral Transitional Tumor Cells

                       Ho Yag Laser Advantages Compared to ESWL,PL(Pneumatic Lithotripsy):
