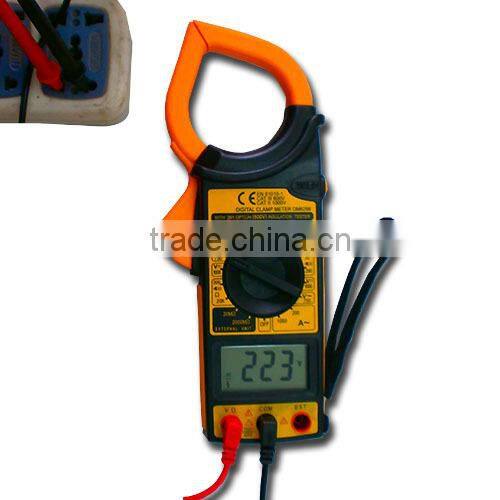

voltage tester AC and DC digital clamp meter

Place of Origin	Fujian, China		Brand Name	Eoutil
Model Number	DM6266		Display Type	Analog and Digital
Measuring Current Range	200-1000A		Measuring Voltage Range	DCV: 200-1000V
Measuring Resistance Range	200-20K-20M-2000MΩ

Specifications

1.Good quality and low price
2.LCD display.
3.AC current function and AC/DC voltage measurement
4.CE approved.

1.General Specification
This meter is completely portable. LCD,3 1/2 digits clamp meter with insulation test function (with option 500V insulation tester unit). Designed for use by electricians, technicians, serviceman and hobbyists who required an instrument that is accurate, reliable and always ready for use. It is powered by a standard 9V battery, providing 150-200 operating hours, depending upon the type of battery and usage. It has rugged structure design, good feeling held in operator's hand and convenient use.



DM6266 series clamp meter function table



AC Current: 0.1A to 1000A

Insulation Test: 100K Ω to 2000M Ω (with option 500V insulation tester unit)

AC voltage:  1V to 750V

DC voltage:  1V to 1000V

Resistance: 100m Ω  to 20K Ω

Continuity test: 30 ±20 Ω with audio tone



2.Electrical Specifications
The following specifications assume a 1-year calibration cycle and an operating temperature of 18°C to 28°C (64°F to 82°F), at relative humidity up to 80% unless otherwise noted.



AC Voltage (Average sensing, calibrated to rms of sine wave)

Ragnge	Resolution	Accuracy(50Hz-500Hz)
750V	1V	±(1.2% of reading + 5 digits)

Input impedance:  ≥9MΩ

Overload Protection: 750V AC/DC on all ranges



AC Current ( Average sensing, calibrated to rms of sine wave )

Range	Resolution	Accuracy(50Hz-60Hz)
200A	100mA	±(2.5% of reading + 10 digits)
1000A	1A	±(2% of reading + 5 digits) for 800A and below
		The reading is only for Reference for more than 800A

Jaw Opening: 2.7cm



Insulation test (with option 500V insulation tester unit)

Ragnge	Resolution	Accuracy(50Hz-500Hz)
20MΩ	10KΩ	±(2% of reading + 2 digits)
2000MΩ	1MΩ	±(4% of reading + 2 digits) for 500MΩ and below
		±(5% of reading + 2 digits) for others

 Overload Protection: 250V DC/rms AC on all ranges.

DC Voltage

Ragnge	Resolution	Accuracy(50Hz-500Hz)
1000V	1V	±(1.0% of reading + 2digits)

Input impedance: 9MΩ

Overload Protection: 1000V DC/peak ACon all ranges



Temperature

Ragnge	Resolution	Accuracy
		0°C-400°C	400°C-750°C
0°C-750°C	1°C	±1% of rdg ±3d	±2% of rdg ±1d





Environment

Normal Operation: 18°C-28°C (64°F to 82°F)
Usable Condition: 0°C-50°C (32°F-122°F)
Storage: -20°C -+60°C (30°F-140°F)
         Battery removed and <80% R.H.
Relative Humidity: max. 80%



Function Characteristics
Measurement method: Dual slope integration technical
Reading rate: 3 reading/Sec.
Polarity: Automatic, indicated minus, assumed plus
Overload indication: Blanking of all digits except MSD, decimal point and sign appropriate
Power requirements: 9V battery (NEDA 1604, 6F22)
Battery life: Up to 200 hours typical with Alkaline.

                           Up to 150 hours typical with Zinc carbon.
Battery indication: Display indicates when approx. 20% of battery life remains.
Display: LCD 3 1/2 digits (1999 count) 0.5" high
Data Hold: All function and ranges with this feature.

Dimension: 9"Lx2.7"Wx1.5"H (230x70x37cm)
Weight: 360g including battery approx.



Accessories
Operator's manual
Test leads
9V battery
Carrying case

Holster
