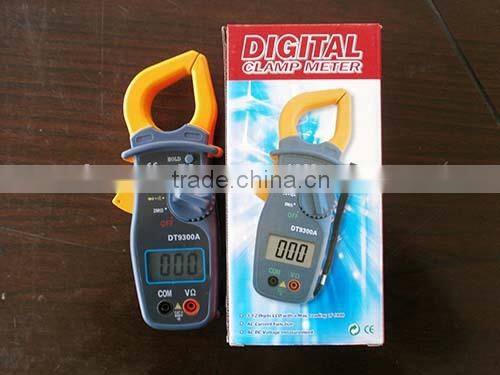

voltage tester AC DC clamp meter price

Place of Origin	Fujian, China		Brand Name	Eoutil
Model Number	DT9300A		Display Type	Analog and Digital
Measuring Current Range	200-1000A		Measuring Voltage Range	DCV: 200-1000V
Measuring Resistance Range	200-20K-20M-2000MΩ

Specifications

1.Good quality and low price
2.LCD display.
3.AC current function and AC/DC voltage measurement
4.CE approved.

1.General Specification

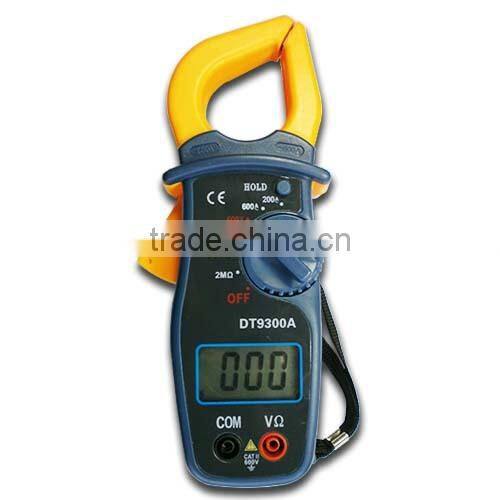

This meter is completely portable. LCD,3 1/2 digits clamp meter with insulation test function (with option 500V insulation tester unit). Designed for use by electricians, technicians, serviceman and hobbyists who required an instrument that is accurate, reliable and always ready for use. It is powered by a standard 9V battery, providing 150-200 operating hours, depending upon the type of battery and usage. It has rugged structure design, good feeling held in operator's hand and convenient use.

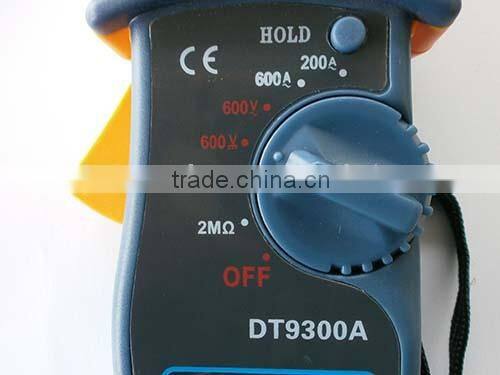

DT9300 series clamp meter function table



RANGE		DT9300A	DT9300C
ACA A	200	√	√
	600	√	√
ACV V	600	√	√
DCV V	600	√	√
RESISTANCE Ω	2M	√
Temperature			√
Diode		√	√
Continuity Test		√	√
Data Hold		√	√





2.Electrical Specifications
The following specifications assume a 1-year calibration cycle and an operating temperature of 18°C to 28°C (64°F to 82°F), at relative humidity up to 80% unless otherwise noted.



AC Voltage (Average sensing, calibrated to rms of sine wave)

Ragnge	Resolution	Accuracy(50Hz-500Hz)
600V	1V	±(1% of reading + 4 digits)

Input impedance:  ≥9MΩ

Overload Protection: 600V AC/DC on all ranges



AC Current ( Average sensing, calibrated to rms of sine wave )

Ragnge	Resolution	Accuracy(50Hz-500Hz)
200A	100mA	±(2% of reading + 5 digits)
600A	1A

Jaw Opening: 2.7cm



I Resistance

Ragnge	Resolution	Accuracy(50Hz-500Hz)
2MΩ	1KΩ	±(1% of reading + 3 digits)

Overload Protection: 250V DC/rms AC on all ranges.



DC Voltage

Ragnge	Resolution	Accuracy(50Hz-500Hz)
600V	1V	±(0.8% of reading + 1 digits)

Input impedance: ≥9MΩ

Overload Protection: 600V DC/peak ACon all ranges



Temperature

Ragnge	Resolution	Accuracy
		0°C-400°C	400°C-750°C
0°C-750°C	1°C	±1% of rdg ±3d	±2% of rdg ±1d





Environment

Normal Operation: 18°C-28°C (64°F to 82°F)
Usable Condition: 0°C-50°C (32°F-122°F)
Storage: -20°C -+60°C (30°F-140°F)
         Battery removed and <80% R.H.
Relative Humidity: max. 80%



Function Characteristics
Measurement method: Dual slope integration technical
Reading rate: 3 reading/Sec.
Polarity: Automatic, indicated minus, assumed plus
Overload indication: Blanking of all digits except MSD, decimal point and sign appropriate
Power requirements: 9V battery (NEDA 1604, 6F22)
Battery life: Up to 200 hours typical with Alkaline.
Battery indication: Display indicates when approx. 20% of battery life remains.

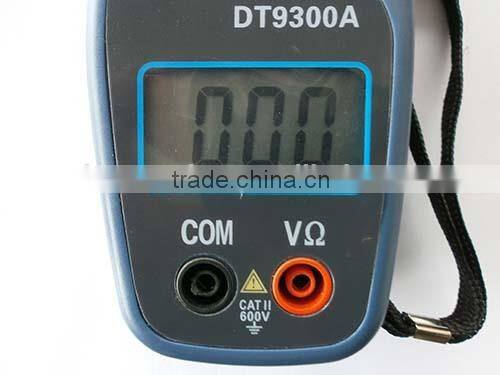

Display: LCD 3 1/2 digits (1999 count) 0.6" high
Data Hold: All function and ranges with this feature.
Weight: 360g including battery approx.

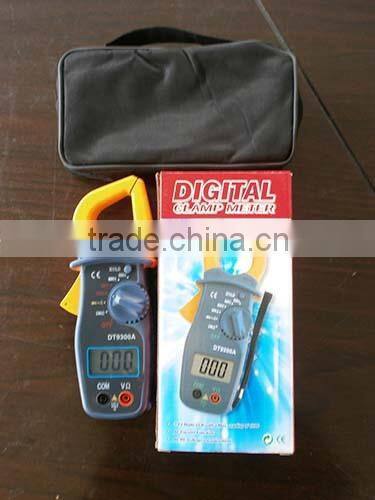

Accessories
Operator's manual
Test leads
9V battery
K-type thermocouple (DT9300C only)



Our advantages

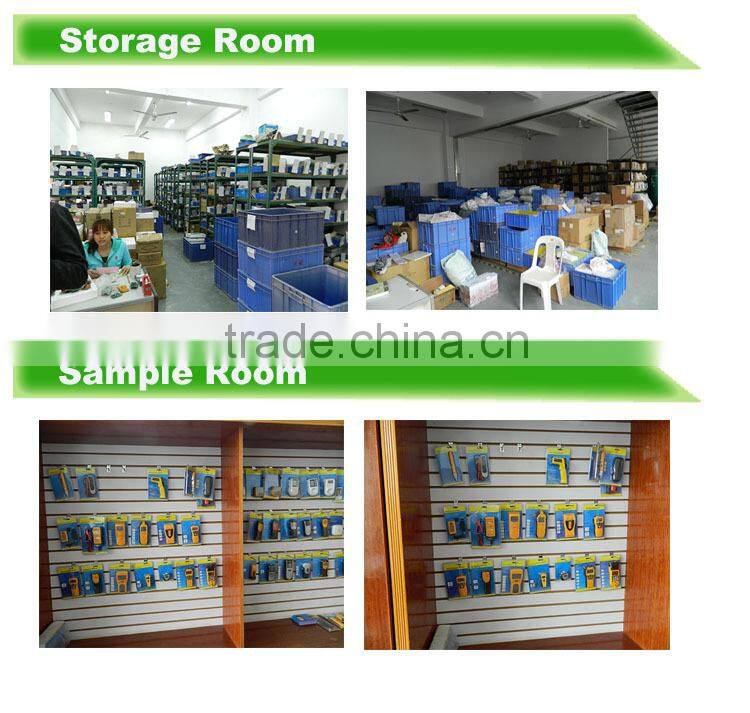

Sample:

Sample will be available.But  at first,we should charge the sample cost,once you work out an order,the cost  will be returned you.

When we establish long term bussiness with each other, free sample will be sent to you for your  selection.

Warranty: We promise that 1 year warrranty is neccessary.And more than 1 year battery service life.



Shipping cost:

We accept ship, air, express delivery. Your DHL/UPS account is ok. If without, we have our forwarder who cooperate with us for many years,

believe that we also can make you quite cheap price and save the money for you.
