Adapter Flanged Joint Ductile Iron

Specifications

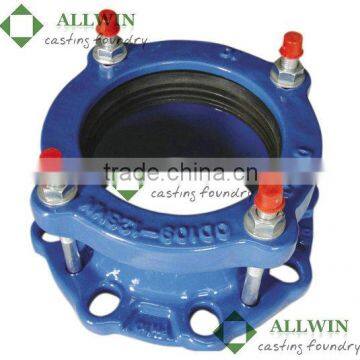

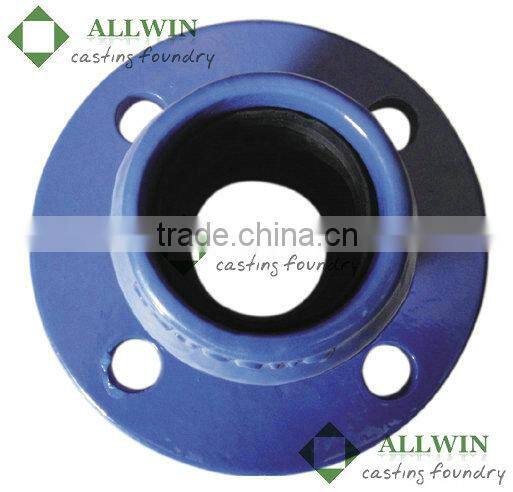

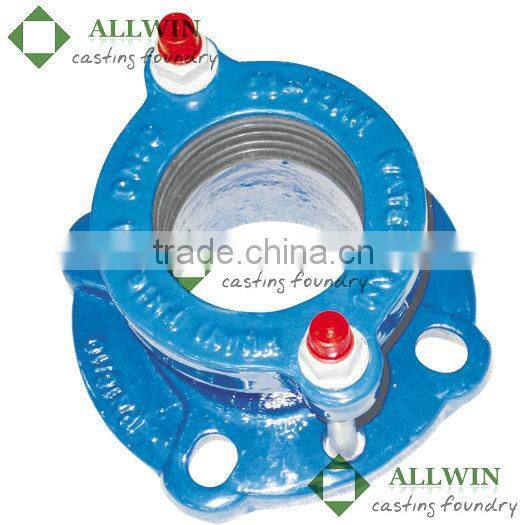

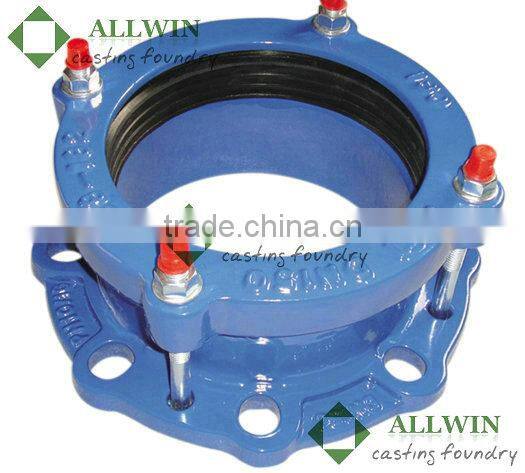

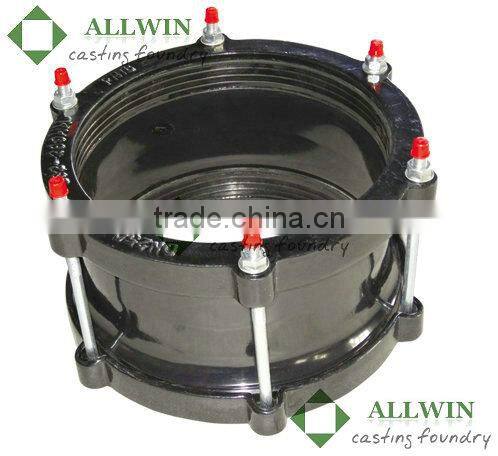

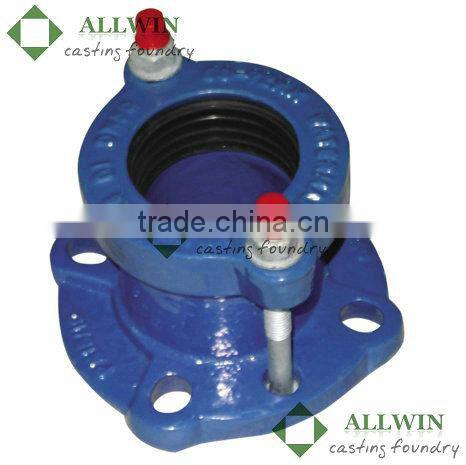

Description of DI flanged adapter for pvc or steel pipes

Universal Flange adaptors facilitate the connection of plain ended pipe to flanged  products , in the same range

 of outside diameters, and multi-drilling flanges further simplify installation.To facilitate installation and avoid

 possible creep under rising load, it is strongly recommended that the rubber sealing gaskets are well lubricated

 with a suitable non-toxic soap solution before the introduction of the pipe. This practice should obviate the need

 for retightening the fasteners after pressure testing, and further facilitate the seating of the joint components.

Materials of adapter for  pvc or steel pipe

Specifications of Flange Adaptor

 Size Range: DN50-800MM

 Working pressure: PN10/PN16

 Rubber Seal: EPDM/NBR

 Angular Deflection  ±3 degree

 Media Temperature: Max 40°c

 Non Tensile

 Dacromet Coated Bolts and nuts

 Fusion bonded epoxy powder coating for Body

 USE: For cast iron, ductile iron, steel, UPVC, copper pipes
