PVC Quick Coupling, Quick Coupling Valve
USD $1,000 - $2,000
/ Piece
10 Pieces(Min.Order)
- 500 Ton / Tons per Month
- TIANJIN
- T/T Credit Card
You May Like
Product Details
| Material | Iron | Technics | Other, Casting, Casting | |
| Type | Other, coupling | Place of Origin | Shanxi, China | |
| Model Number | DN50-600 | Brand Name | Allwin | |
| Connection | Other, by bolts and nuts | Shape | Equal | |
| Head Code | Other, round |
Product Description
Specifications

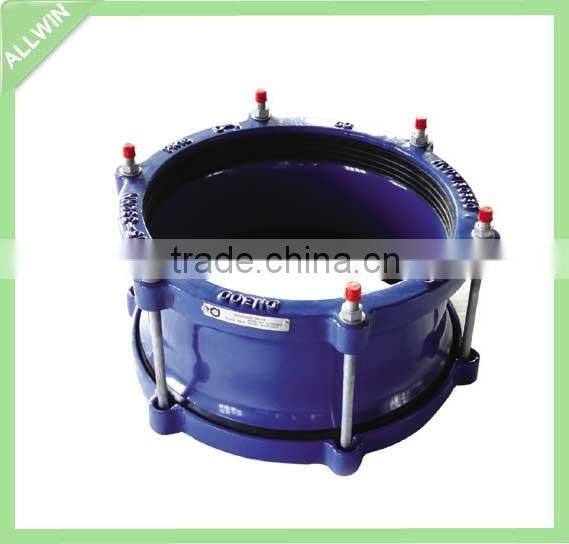

PVC Quick Coupling, Quick Coupling Valve1. Size range: DN50-600
2. Ductile iron sleeve
3. EPDM gasket
4. FBE coating
Product Description
PVC Quick Coupling, Quick Coupling Valve
Description
1. Material: Ductile Iron sleeve, Steel bolts and nuts
2. Gaskets : EPDM
3. Coating: epoxy in blue,black or red.
4. Size range: DN50-600 /2"-24"
5. Packing: standard Wooden pallets or cases
Dimensions
| No. | Size | Outside Dia. of Pipe | Weight |
| DE= mm | kg | ||
| 1 | DN50/2 inch | (59-73mm) | 3.2 |
| 2 | DN65/2.5 inch | (72-85mm) | 4.2 |
| 3 | DN80/3 inch | (88-103mm) | 5.2 |
| 4 | DN100/4 inch | (108-128mm) | 5.9 |
| 5 | DN125/5 inch | (132-146mm) | 7.7 |
| 6 | DN150/6 inch | (158-181mm) | 9.7 |
| 7 | DN175/7 inch | (192-209mm) | 11.6 |
| 8 | DN200/ 8 inch | (218-235mm) | 11.6 |
| 9 | DN225/ 9 inch | (250-267mm) | 16.5 |
| 10 | DN250/ 10 inch | (262-289mm) | 18.9 |
| 11 | DN300/ 12 inch | (315-332mm) | 20.4 |
| 12 | DN300/12 inch | (322-339mm) | 20.9 |
| 13 | DN300/12 inch | (340-360mm) | 22 |
| 14 | DN350/ 14 inch | (351-368mm) | 31.9 |
| 15 | DN350/14 inch | (374-391mm) | 33 |
| 16 | DN400/16 inch | (400-429mm) | 38.5 |
| 17 | DN400/16 inch | (425-442mm) | 40.7 |
| 18 | DN450/18 inch | (455-472mm) | 45.1 |
| 19 | DN450/ 18 inch | (476-493mm) | 47.3 |
| 20 | DN500/ 20 inch | (500-532mm) | 52.8 |
| 21 | DN500/ 20 inch | (527-544mm) | 53.9 |
| 22 | DN500/ 20 inch | (555-572mm) | 55 |
| 23 | DN500/ 20 inch | (566-583mm) | 55 |
| 24 | DN500/ 20 inch | (582-599mm) | 57.2 |
| 25 | DN600/24 inch | (600-630mm) | 71.5 |
| 26 | DN600/ 24 inch | (630-647mm) | 72.6 |
| 27 | DN600/24 inch | (645-662mm) | 74.8 |
| 28 | DN600/ 24 inch | (662-679mm) | 77 |
| 29 | DN600/24 inch | (675-692mm) | 79.2 |
More Models for your choice
