Home > Products > Raymond mill > Superfine raymond grinder,mineral raymond grinding machine
Superfine raymond grinder,mineral raymond grinding machine
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin Dalian or as required
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Raymond Mill | |
| Motor Type | AC Motor | Power(W) | 55kw | |
| Capacity(t/h) | 0.45-3.7 | Place of Origin | Henan, China | |
| Brand Name | Huahong | Model Number | 3R3015 | |
| Dimension(L*W*H) | 5200x4200x4950 | Weight | according to the detailed information | |
| Certification | ISO9001,2008 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of superfine raymond grinder,mineral raymond grinding machine:
Raymond mill is a traditional mill type, which is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with hardness less than 7 in Moh’s scale and humidity less than 6 percent, such as: limestone, calcite, barite, dolomite, marble, talcum, gypsum, kaoline, iron ore, glass, fireproof materials, heat preservation materials, chemical materials and so on( about 300 kinds of material). The granularity of the end products can be adjusted from 30 to 325 meshes.
Features of superfine raymond grinder,mineral raymond grinding machine:
1. The equipment's structure is tight, from crushing to grinding and packing all together forms an independent production system, it has advantages of covering small area, operating simple, saving work force.
2. The final product has high passing screen ratio, which can achieve 99%.
3. Driving system of main frame adopts airtight gearing and pulley, which secures reliable operation.
4. Main parts of the grinding plant are made from cast and high quality steel, which ensures the durability of whole plant.
5. With application of centralized controlling electric control system, no operator is in the operating room.

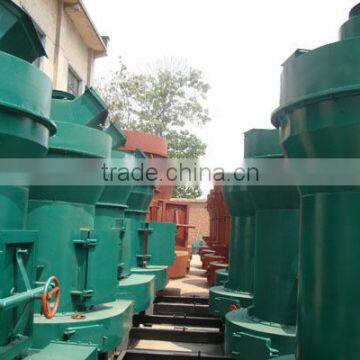

View of superfine raymond grinder,mineral raymond grinding machine:
Main technical parameters:
Model | Grinding Roller | Grinding Ring | Feeding | Output size (mm) | Capacity | Motor | Overall | |||
Nos | Diameter | Height | Outside | Height | ||||||
3R1410 | 3 | 140 | 100 | 495 | 100 | <8 | 0.613-0.044 | 0.15-1.2 | 14.1 | 3340×2200×3200 |
3R2115 | 3 | 210 | 150 | 726 | 150 | <15 | 0.613-0.044 | 0.28-1.8 | 28.2 | 4480×3100×3970 |
3R2615 | 3 | 260 | 150 | 865 | 150 | <15 | 0.613-0.044 | 0.35-2.8 | 35.7 | 5000×4100×4850 |
3R2715 | 3 | 270 | 150 | 884 | 150 | <15 | 0.613-0.044 | 0.40-3.4 | 42.7 | 5050×4150×4900 |
3R3015 | 3 | 300 | 150 |
| 150 | <15 | 0.613-0.044 | 0.45-3.7 | 55 | 5200×4200×4950 |
4R3016 | 4 | 300 | 160 | 990 | 160 | <20 | 0.613-0.044 | 0.6-4.5 | 55 | 5250×5000×5500 |
4R3216 | 4 | 320 | 160 | 1073 | 160 | <25 | 0.613-0.044 | 1.0-5.2 | 72.5 | 7700×7200×8800 |
5R4119 | 5 | 410 | 190 | 1400 | 190 | <30 | 0.613-0.044 | 2.0-9.0 | 157.5 | 7900×8800×9650 |
