Specifications

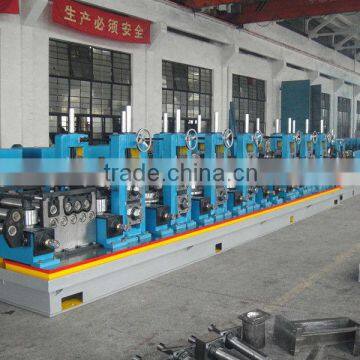

Welded Tube Equipment

Detailed technical:
double-headed uncoiler
1, Descriptions: rotary motion, fast replacement steel coils and pneumatic brakes
2, parameters and descriptions:
(1), coil weight: 500kg
(2), roll feed axis inner diameter: 300mm-350mm
(3), coil outer diameter: 1200mm
(4) Coil width: 110mm
Second, the main drive
1, the host Z4-160-11, 22kw DC motor drive
ZLY140 type reducer, ratio 4.2:1
3, drag the imported continental DC device.
Cage aggregate Box
1, Type: welded angles, channels
2, feed rate: ≥ 200m/min
3, material storage capacity: ≥ 400m
Fourth, the width adjustment
Capacity: 22mm-80mm
Material storage roller (group)
1, Material: Gcr15
Feeding rolling wheel: 115mm, 2
3, motor: 2.2kw 1 units
Computer Flying Saw
A frequency of the automatic control: 7.5kw
B, automatically tracking device
1, maximum cutting diameter: Φ26mm
2, cut length: 4m-7m
3, the maximum cutting thickness: 1.5mm
C, type: round metal blade Φ300mm × Φ30mm × 3.0mm
D, flying saw power: 3kw motor
E pipe cutting length, accuracy within ± 0.33mm
Unloading station with wheel transmission, pneumatic stirring up style
Eight high-frequency
1, Type: GP60-0.6-H
2, the input power supply: 3P, 380V, 50HZ
3, the output power: 60kw
4, the output control mode: microcomputer regulator
5, the high-voltage rectifier: 15A
6, the high-voltage transformer: 3,380 V, 100KVA
Shock tubes: FU-308S
8 tube filament transformer: 8V-AC
9, tube the anode water pipes: polyethylene intensifier tubes
10, the capacitor: CCG81-1000P-20KV
