2014 best selling China manufacturer of magnetic Separator

FOB Price

USD $500 - $99,999 / Set

1 Set(Min.Order)

Supply Ability 55 Set / Sets per Month
Port Shanghai; Qingdao and so on.China main ports.
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	10-280	Place of Origin	Henan, China
Brand Name	Huahong	Model Number	CTBseries
Voltage	220-380V	Power(W)	1.5-11KW
Dimension(LWH)	As per different model	Weight	various
Certification	ISO,CE	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

magnetic Separator
1 High magnetic intensity.
2. Low energy consumption.
3. Good beneficiating efficiency.

2014 best selling China manufacturer of magnetic Separator

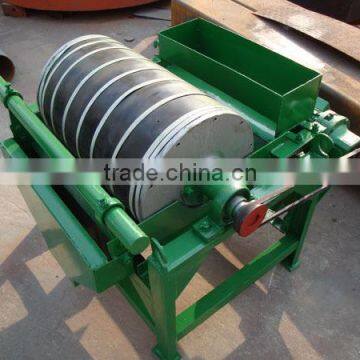

1.Introduction of magnetic separator

Magnetic separator mainly consists parts as cylinder, magnetic system, cell and transmission parts. Cylinder is made of 2-3mm welded and bent stainless steel and the terminal cover is forged aluminium plate which is connected with stainless bolts. The motor drives the cylinder to go round and round through decelerated machine. The magnetic system is open and put in the cylinder. The magnetic piece is installed on the bottom plate with stainless bolt, the axis of magnetic yoke spreads out of cylinder, and there is cranks which are fixed on the end of axis. The angle of magnetic system can be adjusted by pulling the crank, and be fixed with push rod. The working area of cell is made of stainless steel plate, and the other parts of frame and cell adopt common welded steel.

2.Application of magnetic separator

Magnetic Separator Machine can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.

Magnetic Separators are designed to recover ferromagnetic materials. The magnetic drum separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.

3.Parameters of separator machine

Model	Shell diameter (mm)	Shell length (mm)	Shell rotation speed (r/min)	Feeding size (mm)	Processing capacity (t/h)	Power (kw)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11
