Mercury Grinding Gold Machine For Sale China Supplier
- 600 Set / Sets per Month
- Qingdao Shanghai Dalian or others
- T/T
You May Like
-
mobile gold separation equipment mobile gold car gold washing plant
-
rotary drum screen for sand washing low noise large capacity
-
gold mining dredger ship pan boat China manufacturer
-
Mercury grinding gold machine for gold
-
high capacity gravity concentrate processing gold jig separator
-
2014 high quality gold concentrate processing jig separator
Product Details
| Condition | New | Type | Other, Raymond Mill, Raymond machine | |
| Motor Type | AC Motor | Place of Origin | Henan, China | |
| Model Number | 3R2615 | Dimension(L*W*H) | 5000*4100*4850mm | |
| Certification | CE,ISO | Warranty | 12 mouths | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | Depends on different models |
Product Description
Specifications
1.Over 30 years' experience2.ISO 9001:2008
3.Fully automated
4.Ex-factory price

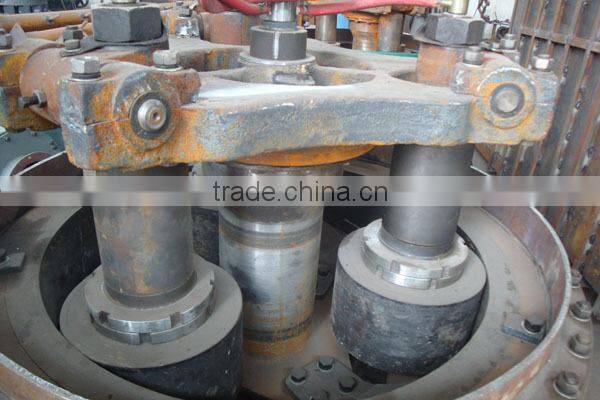

Structure of machine:
Advantage of machine :
The machine improved the plum flower shelf, bearing room, center, in areas based on the original grinding mill, has a powerful strength crushes impact for hardness materials by reasonable design and adding a powerful high-pressure spring device, thus can grind materials fully and increase output.
Delivery of grinding gold machine

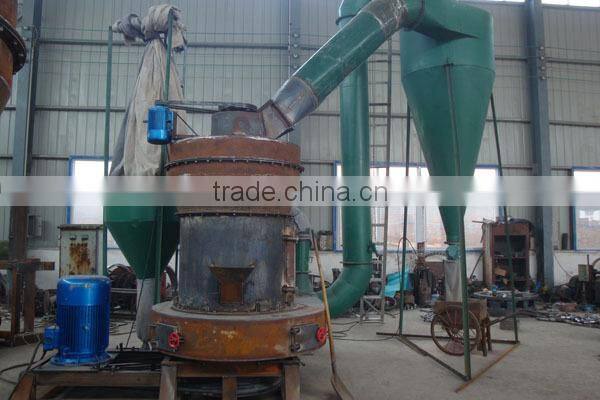

Detailed Description of Raymond Mill:
It used to grind the materials which are non-inflammable and non-explosive with the hardness below Mohs 7-8 and moisture level less than 6%,such as ,feldspar, clay, betonies, calcite, talc, barites, fluorite, clay, kaolin, phosphate rock, glass, manganese, refractory materials, insulation materials, causticization, mullet and minifanshi stone, blood attapulgite,Coal mine, iron ore, Barium salt etc
Technical Parameters of mercury grinding gold machine :
Model | Grinding Roller | Grinding Ring | OverallDimension(mm) | |||
Nos(pcs) | Diameter(mm) | Height(mm) | OutsideDia(mm) | Height(mm) | ||
3R1410 | 3 | 140 | 100 | 495 | 100 | 3340×2200×3200 |
3R2115 | 3 | 210 | 150 | 726 | 150 | 4480×3100×3970 |
3R2615 | 3 | 260 | 150 | 865 | 150 | 5000×4100×4850 |
3R2715 | 3 | 270 | 150 | 884 | 150 | 5050×4150×4900 |
3R3015 | 3 | 300 | 150 | 965 | 150 | 5200×4200×4950 |
4R3016 | 4 | 300 | 160 | 990 | 160 | 5250×5000×5500 |
4R3216 | 4 | 320 | 160 | 1073 | 160 | 7700×7200×8800 |
5R4119 | 5 | 410 | 190 | 1400 | 190 | 7900×8800×9650 |
Note: This specification is just reference, any changes are subject to the products.
More information please contact me!
