Home > Products > accessories > DC round dc 24v electromagnet

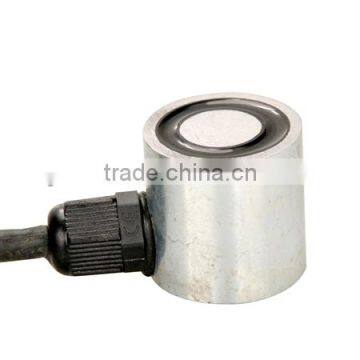

DC round dc 24v electromagnet
- 20000 Piece / Pieces per Month
- ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YIkoa | |
| Model Number | YGR-0515-12 | Type | Solenoid | |
| Composite | Other, miniature electromagnets | Shape | Coil | |
| Application | Industrial Magnet |
Product Description
Specifications
dc 24v electromagnetThis coil is made as a whole with advacned technology
dc 24v electromagnet round electric mangnet details:
Radial pole, flat surface.
Best in holding applications.
Maximum holding at nogap.
Continuous dutycycle.
Max. Ambient temp 40°C (100°F)
Technical data and specitions :
12 Volts DC Round Electromagnets:
Part Number | Holding Value | Diameter | Height | Mounting Thread | Thread Depth | Lead Length | Watts | Amps | Net Weight |
12 V. DC | 0" gap | A | B | C | D |
|
|
|
|
YGR-0515-12 | 4 lbs. | 1/2” | 1-1/2” | 6-32 | 3/8” | 24” leads | 1.4 | 0.12 | 1.8 oz. |
YGR-0712-12 | 9 lbs. | 3/4” | 1-1/4” | 10-32 | 3/8” | 24” leads | 1.4 | 0.12 | 2.1 oz. |
YGR-1007-12 | 26 lbs. | 1” | 3/4” | 10-32 | 3/8” | 24” leads | 1.4 | 0.12 | 2.3 oz. |
YGR-1012-12 | 32 lbs. | 1” | 1-1/4” | 10-32 | 1/2” | 24” leads | 3.6 | 0.3 | 3.3 oz. |
YGR-1207-12 | 45 lbs. | 1-1/4” | 3/4” | 1/4-20 | 3/8” | 24” leads | 3.3 | 0.28 | 3.8 oz. |
YGR-1212-12 | 50 lbs. | 1-1/4” | 1-1/4” | 1/4-20 | 1/2” | 24” leads | 4.4 | 0.37 | 5.7 oz. |
YGR-1515-12 | 80 lbs. | 1-1/2” | 1-1/2” | 1/4-20 | 1/2” | 24” leads | 4.6 | 0.38 | 9.9 oz. |
YGR-1716-12 | 150 lbs. | 1-3/4” | 1-5/8” | 1/4-20 | 1/2” | 24” leads | 8.5 | 0.71 | 14 oz. |
YGR-2016-12 | 180 lbs. | 2” | 1-5/8” | 1/4-20 | 1/2” | 24” leads | 5.6 | 0.47 | 1.1 lbs. |
YGR-2025-12 | 200 lbs. | 2” | 2-1/2” | 1/4-20 | 3/4” | 24” leads | 13 | 1.1 | 2 lbs. |
YGR-3030-12 | 400 lbs. | 3” | 3” | 5/16-18 | 1” | 36” cable | 25 | 2.1 | 5 lbs. |
YGR-4030-12 | 700 lbs. | 4” | 3” | 3/8-16 | 1” | 36” cable | 36 | 3.0 | 9 lbs. |
YGR-5030-12 | 1200 lbs. | 5” | 3” | 1/2-13 | 1” | 36” cable | 43 | 3.6 | 13 lbs. |
YGR-6012-12 | 800 lbs. | 6” | 1-1/4” | 5/8-11 | 3/4” | 36” cable | 25 | 2.2 | 10 lbs. |
YGR-6030-12 | 1700 lbs. | 6” | 3” | 5/8-11 | 1” | 36” cable | 46 | 3.8 | 20 lbs. |
Round magnet dimmensions:
