2014 Coconut Shell Crushing Machine,coconut Shell Crusher Machine

FOB Price

US$ 600 - 80,000 / Set

1 Set(Min. Order)

Port qingdao/shanghai/tianjin

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Roller Crusher
Application	coal,cement,ore,stone..	Motor Type	AC Motor
Power(W)	22kw(as machine model)	Capacity(t/h)	30-50
Place of Origin	Henan, China	Brand Name	HUAHONG
Model Number	2PGC400X500	Dimension(LWH)	3000X1400X1200
Weight	3.6t	Certification	ISO&CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

roller crusher:
1 large capacity
2 easy to maintain
3 low costs for operation
4 feed granular

2014 Coconut shell crushing machine,coconut shell crusher machine

coconut shell crusher Working principle:

The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls. Some major advantages

coconut shell teeth roller crusher Technical parameter:

Models	Roller diameter (mm)	Roller length(mm)	Max. Feed lump Size (mm)	Size marker (mm)	Capacity (t/h)	Motor Power (kW)	Weight (Kg)	Overall dimension(mm)
2PGC-400X250	400	250	≤350	15-125	20-30	11	2800	2300X1050X900
2PGC-400X500	400	500	≤350	15-125	30-50	22	3600	3000X1400X1200
2PGC-450×500	450	500	≤400	25-125	30-60	11	3800	2260X2200X766
2PGC-600×750	600	750	≤500	30-150	60-100	22	7200	2780X3065X1310
2PGC-600×900	600	900	≤500	30-150	80-120	37	7800	4500X1900X1350
2PGC-800×1050	800	1050	≤600	30-150	100-160	45	12600	2550X2050X1100
2PGC-900×900	900	900	≤700	30-200	150-200	45	13500	2780X4100X1550
2PGC-1015×760	1015	760	≤700	30-200	150-200	90	18800	7800X3200X1980
2PGC-920X1200	920	1200	<800	20-150	135-225	75	16500	3848X3480X1394
2PGC-1200X1200	1200	1200	<800	can adjust	200	110	25000	8500X3000X1750
2PGC-1200X1500	1200	1500	<1000	can adjust	150-250	110	26000

Smooth roll crusher technical parameter:

Model	Input size(mm)	Output size can be adjustable(mm)	Capacity (T/h)	Power(KW)
2PG400X250	≤25	0.5-8	5-10	5.5×2
2PG500X400	≤30	0.5-10	8-20	22
2PG610X400	≤40	0.5-20	13-35	30
2PG610X800	≤40	0.5-20	15-40	37
2PG750X500	≤45	0.5-20	15-40	37
2PG750X700	≤45	0.5-20	20-50	44
2PG900X500	≤55	0.5-40	20-50	44
2PG900X900	≤55	0.5-50	20-70	37X2
2PG900X1200	≤55	0.5-50	25-90	37X2
2PG1000X1000	≤70	0.5-50	20-120	37X2
2PG1200X1000	≤70	0.5-60	25-100	45X2
2PG1200X1200	≤70	0.5-60	30-120

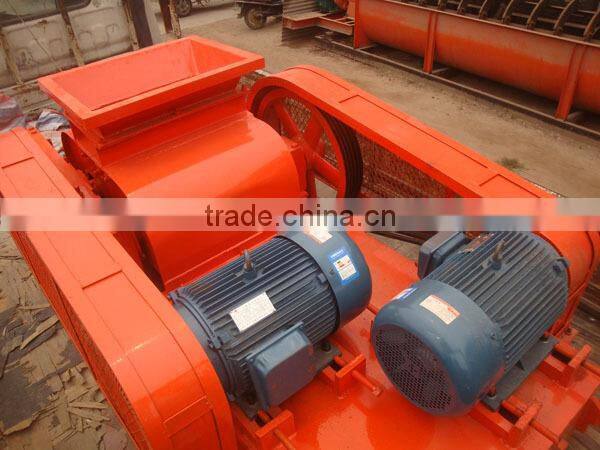

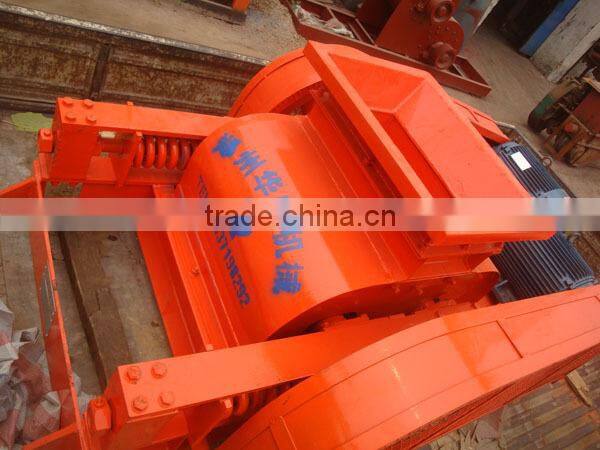

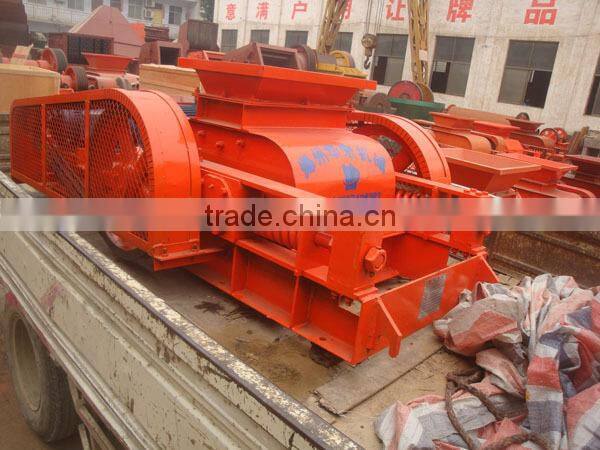

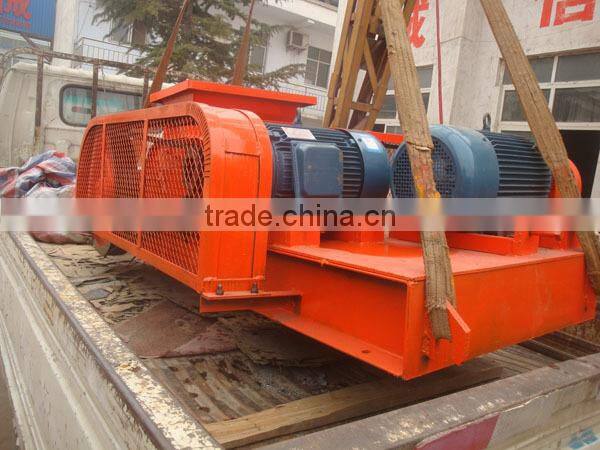

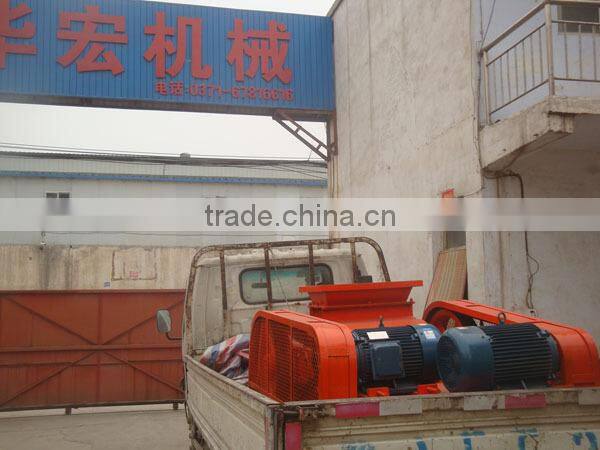

The Teeth Roller Crusher deliver to Romania:

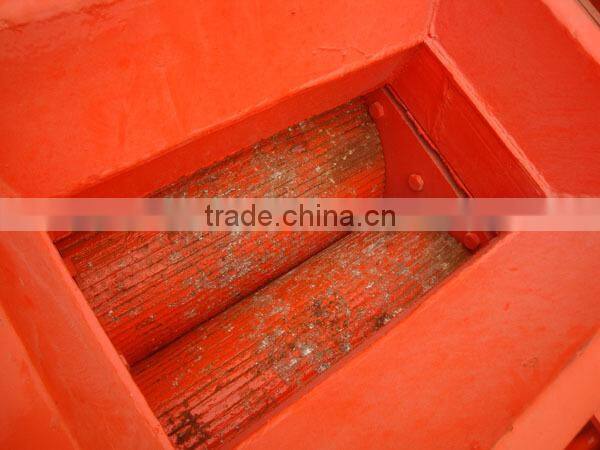

All kinds of teeth for reference:

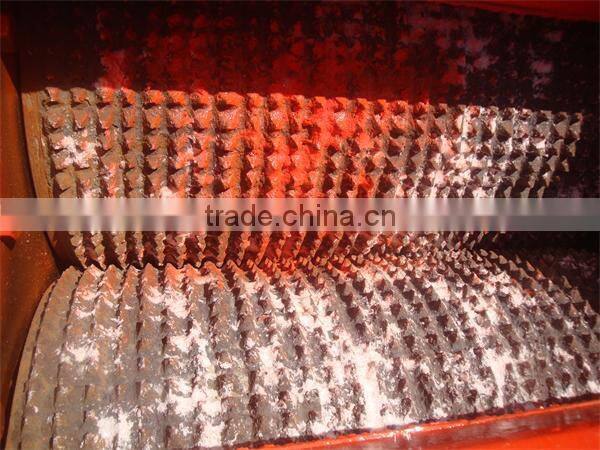

Long teeth:

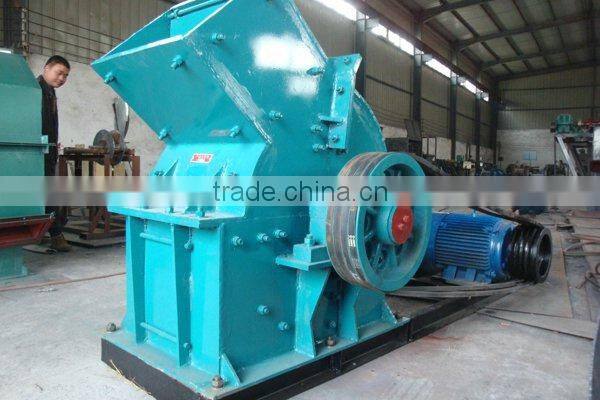

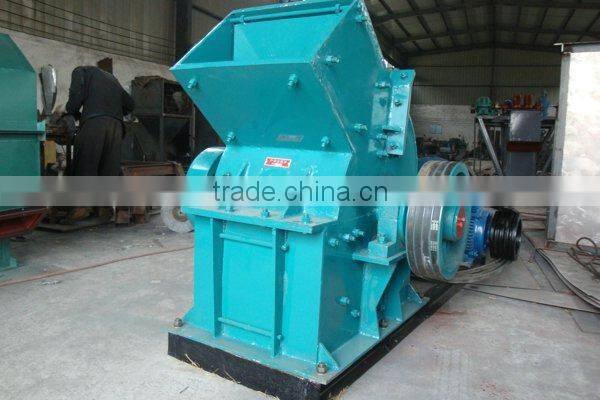

We also have hammer coconut shell crusher and its price is very cheap

We also can produce as your demand;Welcome to receive your Inquiry and Phone.
