polyester sludge dewatering spiral conveyor belt
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HUADING | |
| Model Number | WJW1670903/WJW1670904/WJW2250903/WJW2550908/WJW2750705/HD005/HD010 |
Product Description
Specifications
High quality; competitive price and long service life.Applicable for sludge dewatering and sewage treatment etc.

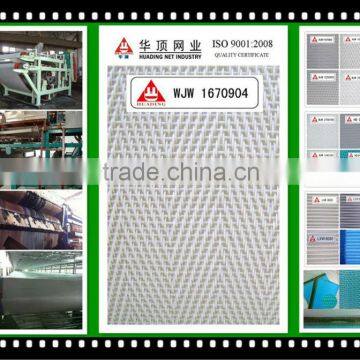

Product picture
Technical data
| Name | WJW1670903 |
| Material&Diameter | Warp:polyester monofilament yarn(0.70mm) |
Weft:polyester monofilament yarn(0.90mm) | |
| Weight(g/m2) | 1270 |
| Thickness(mm) | 2.17 |
| Density(counts/cm) | Warp:16 |
| Weft:4.7 | |
| Bursting strength(N/5x20cm) | Warp:9845 |
| Weft:6050 | |
| Air permeability(L/M2.S@200pa) | 3664 |
| Name | WJW1670904 |
| Material&Diameter | Warp:polyester monofilament yarn(0.70mm) |
Weft:polyester monofilament yarn(0.90mm) | |
| Weight(g/m2) | 1400 |
| Thickness(mm) | 2.37 |
| Density(counts/cm) | Warp:15.6 |
| Weft:4.6 | |
| Bursting strength(N/5x20cm) | Warp:9965 |
| Weft:6255 | |
| Air permeability(L/M2.S@200pa) | 4200 |
| Name | WJW2050703 |
| Material&Diameter | Warp:polyester monofilament yarn(0.50mm) |
Weft:polyester monofilament yarn(0.70mm) | |
| Weight(g/m2) | 905 |
| Thickness(mm) | 1.4 |
| Density(counts/cm) | Warp:20.8 |
| Weft:6 | |
| Bursting strength(N/5x20cm) | Warp:8788.5 |
| Weft:5229.3 | |
| Air permeability(L/M2.S@200pa) | 2565 |
| Name | WJW2050803 |
| Material&Diameter | Warp:polyester monofilament yarn(0.50mm) |
Weft:polyester monofilament yarn(0.80mm) | |
| Weight(g/m2) | 1050 |
| Thickness(mm) | 1.63 |
| Density(counts/cm) | Warp:20 |
| Weft:5.9 | |
| Bursting strength(N/5x20cm) | Warp:7046.5 |
| Weft:7994.3 | |
| Air permeability(L/M2.S@200pa) | 3420 |
| Name | WJW2250903 |
| Material&Diameter | Warp:polyester monofilament yarn(0.50mm) |
Weft:polyester monofilament yarn(0.90mm) | |
| Weight(g/m2) | 1020 |
| Thickness(mm) | 1.67 |
| Density(counts/cm) | Warp:22 |
| Weft:5.5 | |
| Bursting strength(N/5x20cm) | Warp:6193.5 |
| Weft:7909.5 | |
| Air permeability(L/M2.S@200pa) | 3842 |
| Name | WJW2550908 |
| Material&Diameter | Warp:polyester monofilament yarn(0.50mm) |
Weft:polyester monofilament yarn(0.90mm) | |
| Weight(g/m2) | 1490 |
| Thickness(mm) | 2.1 |
| Density(counts/cm) | Warp:26 |
| Weft:7 | |
| Bursting strength(N/5x20cm) | Warp:9896.5 |
| Weft:11785 | |
| Air permeability(L/M2.S@200pa) | 2212 |
| Name | WJW2750705 |
| Material&Diameter | Warp:polyester monofilament yarn(0.50mm) |
Weft:polyester monofilament yarn(0.70mm) | |
| Weight(g/m2) | 1150 |
| Thickness(mm) | 2 |
| Density(counts/cm) | Warp:28.3 |
| Weft:7 | |
| Bursting strength(N/5x20cm) | Warp:10806.5 |
| Weft:8586.5 | |
| Air permeability(L/M2.S@200pa) | 1769 |
| Name | WJW4035505 |
| Material&Diameter | Warp:polyester monofilament yarn(0.35mm) |
Weft:polyester monofilament yarn(0.50mm) | |
| Weight(g/m2) | 780 |
| Thickness(mm) | 1.44 |
| Density(counts/cm) | Warp:42.5 |
| Weft:11 | |
| Bursting strength(N/5x20cm) | Warp:8180 |
| Weft:4475 | |
| Air permeability(L/M2.S@200pa) | 1150 |
| Name | HD005 |
| Material&Diameter | Warp:polyester monofilament yarn(0.30mm) |
Weft:polyester monofilament yarn(0.30mm) | |
| Weight(g/m2) | 600 |
| Thickness(mm) | 0.68 |
| Density(counts/cm) | Warp:32 |
| Weft:18.2 | |
| Bursting strength(N/5x20cm) | Warp:5000 |
| Weft:4000 | |
| Air permeability(L/M2.S@200pa) | 2200 |
| Name | HD010 |
| Material&Diameter | Warp:polyamide monofilament yarn(0.90mm) |
Weft:polyamide monofilament yarn(1.10mm) polyester monofilament yarn(1.00mm) | |
| Weight(g/m2) | 1682 |
| Thickness(mm) | 2.93 |
| Density(counts/cm) | Warp:12 |
| Weft:4 | |
| Air permeability(L/M2.S@200pa) | 2861 |
Where to use?
Applicable for sludge dewatering; sludge dehydrating; sewage treatment; waste water treatment and filtration.
We have following types of sludge dewatering belt, include WJW1670903; WJW1670904; WJW2050703; WJW2050803; WJW2250903; WJW2550908; WJW2750705; WJW4035505; HD005 and HD010 etc.
Type WJW1670903/WJW1670904/WJW2050703/WJW2050803/WJW2250903 is use for sludge dewatering of environment protection.
Type WJW2550908/WJW2750705/WJW4035505/HD005 is use for sludge dehydrating of sewage treatment factories, paper mills and chemical industry.
Type HD010 is use for sludge dewatering and sewage treatment of steel plant.
Our customer can select different types according to their different request.
Advantage
Our sludge dewatering belt have character of good filtration efficiency, and don't leak mud by belt, it's specialized design for sludge dewatering and waste
water treatment. mud tend to peel off by our belt, so it's easy to clean and have long time service life, because of the special heriingbone structure of our
sludge dewatering belt.
We make metal clipper joint for our sludge dewatering belt, it's easy to install in all kinds of belt filter press machine, our metal clipper joint is very strong
because we use 316L material stainless steel clipper and import glue, we also apply resin edge reinforcement for belt fabric, so the quality of our sludge dewatering belt is perfect.
Processing
Treatment
Inspection
Our packing
Do you need a price? if yes,please tell us these information as below:
1.Your detailed technical requirement.
2.Your usage or application of our products.
3.Your width and length,detailed measurement.
4.Terms of shipment.
5.The packing you need for shipping.
6.Which joint you want.
7.Do you need any treatment.
Any questions, pls feel free to contact with us.
