Canopy Shade FCS

Specifications

Principle:
 FCS (short for Fabric Circle System), that is, the fabric  draws system circularly.
1. It is made of  transmission mechanism, fabric supported system and control system.
2. Taking one side of the transmission part as driver, the motor leading the reel tube and reels fixed on the pipe; taking another side of the transmission part as fixed  runner, it reverse by rolling the steel line from the runner, so as to make the two ends of the steel line fixing on one reel.
3. There are two or more steel lines fixed and tighten above the fabric(lead rail is used when the skip distance of the canopy is far). The fabric is installed from the top to transverse connecting bar transversely at equal space(usually
is 1m) .
4. The runner on the connect bar runs on the fixed steel line. The drag-rod is connect with the rolling steel line,
drawing the  fabric stretch and fold along with the fixed steel line.
5. The tension of this mechanism is not that strong, so you can just choose normal fabrics.

Control mode:
As to the control method, manual switch control, infrared remote control, wireless remote control and intelligent control are available according to the occasions. Both single control and group control are operatable.

Structure diagram

Main accessories

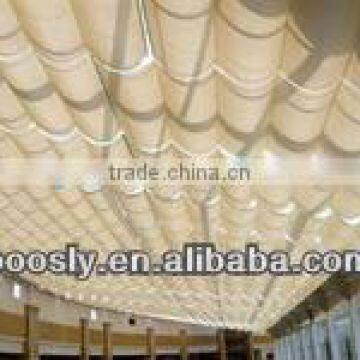

Pictures
