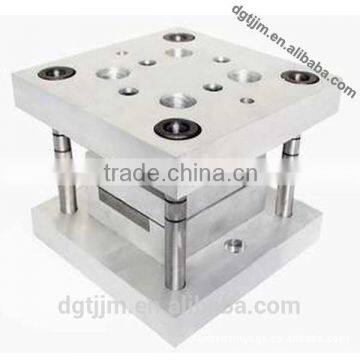

Top Quality 2D 3D Modeling Plastic Injection Mold

FOB Price

US$ 5000.00 - 5000.00 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OEM
Model Number	TJJM-CM		Material	Other, steel

Product Description

What we could do for you ?

Precision mold,mold parts processing, stamping molds, punching mold,metal stamping mold, injection mould, plastic mould, silicon mould.
Process:Grinding,steel,tungsten steel,eg # SKH-9.
Cutting, Wire cutting,,Grinding,EDM,Drilling and milling
Drill by grinding: size from 1mm to 200mm
Mold assembly:3 - 7 weeks for on assembly
Applied to Stamping mold,Auto,mechanical, electronic and machinery fields

Equipment or facility list

Edited on Sept 15,2015		More equipments are increasing for manufacturing
No	Equipment Name	Brand	Item #	Origin	Quantity	Usage
1	Wire cutting/oil	Sodick	AP250	Japan	2
2	Wire cutter	Sodick	AQ360	Japan	2
3	Wire cutting	Seibu	M50A	Japan	2
4	PG optical grinder	Wasino	5P	Japan	1
5	PG koordinat grinder	Wasino	5T	Japan	1
6	Coordinate grinder	Moore	450CP	USA	4
7	Grinder	Seedtec	614	Taiwan	4
8	Grinder	Hyfair	614	Taiwan	4
9	Liquid honing	FSG	3A1124N	Taiwan	4
10	EDM	Creator	230	Taiwan	2
11	HS-WEDM	Everlight	330	China	2
12	Drilling EDM	BMW	DB703	China	1
13	Tools microscope	Nikon	MM40	Japan	6
14	Projector	Nikon	V128T	Japan	2
15	2D measurement	Trimos	M600	Swiss	1
16	Metal comparator	Nikon	0-50	China	4
17	Micrometer	Mitutoyo	0-25	Japan	10
18	Sclerometer	Rockwell	Hr500	China	1
19	Block gauge	Mitutoyo	0-100	Japan	3
20	callipers	Mitutoyo	0-300	Japan	6
21	Height gage	TESR	600	Swiss	1

Product specificaion

PLASTIC INJECTION Mould standard	HASCO,DME,MEUSBURGER,JIS,CHINA LKM Standard
Mould base	LKM&Hasco&DME standard (A,B plate 1730,2311,2312,P20 )
Material main core and cavity insert	DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13
Hardness of steel	46~56HRC
Material for Slider ,Lifter and all sub insert use	1.2767 HRC
Cavity	Single-cavity ,Multi-cavity
A surface request:	EDM & High Polish
Gate	Cold runner,Yudo/DME/HASCO/Synventive Hot runner
Maximum mould size	1500*1500 mm
Mould life time	500000~+1,000,000 shots
Directly factory	Injection Molding Manufacturer‎
Product material	PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc
Lead time	4~7 Weeks
Package	Wooden/Plywood case for tool ,PE bags add export carton for parts,rust-free
Payment terms	T/T,LC,Western Union
Trade terms	FOB Shanghai,EXW ,CIF
Export country	Europe countries,USA,Mexico,Australia ,Middle-east ,Asia etc
Value-added service	Polish,texture,painting,screen printing

Business lisence of Taijin Precision Mold Co.,Ltd

ISO9001 Certificate and factory gate

Organization Chart

Precision Grinding workshop

Precision Optical Grinding

Wire cutting workshop

Quality inspection

Shipping and payments

Contact us
