Heat resistant borosilicate glass

Heat resistant borosilicate glass

Borosilicate Float Glass3.3(BG33)

Characteristics

l         Great heat resistance performance,stable chemical property;

l         High light transmission;

l         Various thicknesses for you to choose;

l         Wide optical application.

Application

Borosilicate 3.3 serves as a material of true function and wide applications:

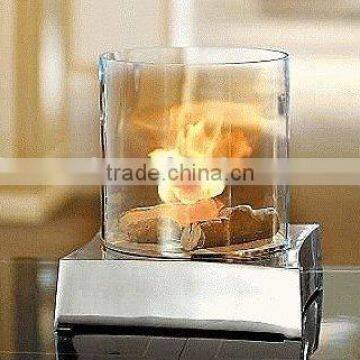

l         Household electrical appliance (panel for oven and fireplace, microwave tray etc.);

l         Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles);

l         Lighting (spotlight and protective glass for jumbo power of floodlight);

l         Power regeneration by solar energy (solar cell base plate);

l         Fine instruments (optical filter);

l         Semi-conductor technology (LCD disc, display glass);

l         Medical technique and bio-engineering;

l         Safety protection (bullet proof glass)

Technical Data

Dimensions(mm):                      1200×600 1150×850 1150×1700

other formats upon request

Available thickness(mm):                1--12

Density (g/cm3 ) (at 25℃):               2.23±0.02

Co-efficient of expansion(α)(20-300℃):   3.3±0.1×10^-6

Softening point(℃):                    820±10

Identical temperature difference(K):       100    >300(Strengthening type)

Maximum working temperature(℃):       ≥450

Refractive(n_d ) :                       1.47384

Light transmission:                     92%(thickness≤4mm)

91%(thickness≥5mm)

Processing:                           pre-cut formats, edge processing

Cleaning & Care hints:

First, wipe down the glass-ceramic panel with a clean, damp cloth. Then rub the panel in a circular polishing motion using a soft cloth and a few drops of a conditioner suitable for use on glass-ceramic cooktop panels. Then rinse with a damp cloth and wipe dry with a clean, soft cloth. After rinsing and drying, the surface is coated with an invisible film which helps to keep the panel clean. Regularly repeating this conditioning process makes it considerably easier to keep the panel clean and shiny.
