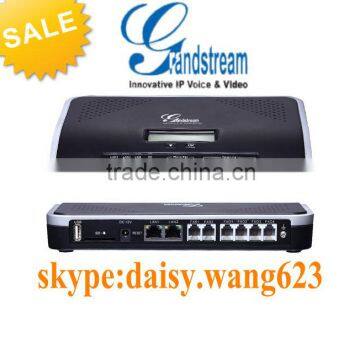

Grandstream IP PBX UCM6100 series UCM6102/6104/6108/6116 with 2/4/8/16 FXO ports and 2 analog FXS ports

Technical Specifications

UCM6102

UCM6104

UCM6108

UCM6116

INTERFACES

PSTN Line FXO Ports

2

4

8

16

Analog Telephone FXS Ports

2

2

2

2

Network Interfaces

Single or Dual (UCM6102 only) 10M/100M/1000M RJ45 Ethernet port(s) with integrated PoE Plus (IEEE 802.3at-2009)

Data Router

Yes

No

Peripheral Ports

USB, SD

LED Indicators

Power/Ready, Network, PSTN Line, USB, SD

LCD Display

128x32 graphic LCD with DOWN & OK button

Reset Switch

YES

VOICE/VIDEO CAPABILITIES

Voice-over-Packet Capabilities

LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation,

Dynamic Jitter Buffer, Modem detection & auto-switch to G.711

Voice Compression & Fax

G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM; T.38

Video Compression

H.264, H.263, H263+

QoS

Layer 3 QoS.

SIGNALING & CONTROL

DTMF Method

In Audio, RFC2833 and SIP INFO

Provisioning Protocol & Plug-and-Play

TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints

Network Protocols

TCP/UDP/IP, RTP/RTCP, ICMP, ARP/RARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP

Disconnect Methods

Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone

SECURITY

Media

SRTP, TLS, HTTPS, SSH, Syslog

PHYSICAL

Universal Power Supply

Output: 12VDC, 1.5A;  Input: 100 ~ 240VAC, 50 ~ 60Hz

Environmental

Operating: 32 ~ 104ºF /  0 ~ 40ºC, 10 ~ 90% (non-condensing);  Storage: 14 ~ 140ºF /  -10 ~ 60ºC

Dimensions (L*W*H)

226mm(L)x 155mm(W)x 34.5mm(H)

440mm(L)x 185mm(W)x 44mm(H)

Mounting

Wall mount & Desktop (UCM6102/6104);   Rack mount  & Desktop (UCM6108/6116)

ADDITIONAL FEATURES

Caller ID

Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (Pending)

Polarity Reversal/Wink

Yes, with enable/disable option upon call establishment and termination

Call Center

Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement

Customizable Auto Attendant

Up to 5 layers of IVR (Interactive Voice Response)

Concurrent Calls

Up to 30 (UCM6102), 45 (UCM6104), or 60 (UCM6108/6116) simultaneous calls

Conference Bridges

Up to 3 (UCM6102/6104) or 6 (UCM6108/6116) password-protected conference bridges allowing up to 25 (UCM6102/6104) or 32 (UCM6108/6116) simultaneous PSTN or IP participants

Call Features

Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom, etc.

COMPLIANCE

EMC

FCC: Part 15 (CFR 47) Class B, Part 68

CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS

A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002

Safety

ITU-T K.21(Basic Level); UL(Power Supply)
