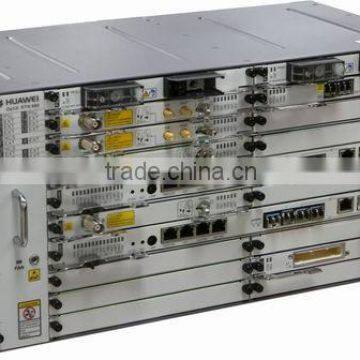

huawei OptiX RTN 980 radio SDH digital radio transmission equipment

  The OptiX RTN 900 is a new generation TDM/Hybrid/Packet integrated microwave transmission system developed by Huawei. It provides a seamless microwave transmission solution for mobile communication network or private networks.

OptiX RTN 900 Product Family

There are four types of OptiX RTN 900 V100R005C00 products: OptiX RTN 905, OptiX RTN 910, OptiX RTN 950, and OptiX RTN 980. Users can choose the product best suited for their site.

· The IDU of the OptiX RTN 905 is 1U high, integrated and case-shaped. The OptiX RTN 905 can provide two types of IDU: IDU 905 1A with one IF port and IDU 905 2A with two IF ports.

· The IDU of the OptiX RTN 910 is 1U high and supports one or two IF boards.

· The IDU of the OptiX RTN 950 is 2U high and supports one to six IF boards.

· The IDU of the OptiX RTN 980 is 5U high and supports one to fourteen IF boards.

The OptiX RTN 900 series provide a variety of service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can  integrate TDM microwave, Hybrid microwave, and Packet microwave technologies  according to the networking scheme for the sites, achieving smooth upgrade from TDM  microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while  also allowing for future network evolution and convergence.

Network Application

OptiX RTN 980

The OptiX RTN 980 is large-capacity nodal microwave equipment deployed at the convergence layer. It supports the convergence of up to 14 radio links, and supports multiple protection schemes. Figure 1-1 shows the microwave transmission solution provided by the OptiX RTN 980.NOTE:

• The OptiX RTN 980 provides a wide range of interfaces and service bearer technologies to adapt to the regional backhaul network. The regional backhaul network can be a time-division multiplexing (TDM) network or packet switching network (PSN).

• The OptiX RTN 980 supports the Ethernet over SDH (EoSDH) function, Ethernet over PDH (EoPDH) function, and ML-PPP function. Therefore, packet services can be backhauled through a TDM network.
• The OptiX RTN 980 supports the pseudo wire emulation edge-to-edge (PWE3) technology. Therefore, TDM, ATM, and Ethernet services can be backhauled through a PSN.
• The OptiX RTN 980 supports the VLAN sub-interface function. Therefore, MPLS packet services can be backhauled through a Layer 2 network.

IDU 980

The IDU 980 is the indoor unit for an OptiX RTN 980 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

Table 1-2 lists the basic features of the IDU 980.

Table 1-2 Features of the IDU 980
