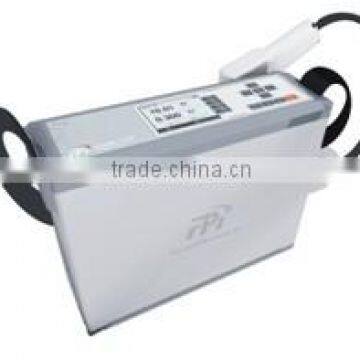

Portable Near Infrared Analyzer

 XM-1000 series portable near infrared analyzer is designed to be a portable analyzer for onsite rapid detection, wavelength range covers 600 to 1800nm, compact structural design, small size, built-in rechargeable battery, large capacity storage device and LCD module. By configuring different measuring attachment, the analyzer can implement rapid detection of no destruction of flake, pellet, pasty, powder and liquid samples in some composition of physical and chemical. It has been widely applied in fruit farming, food quality, scientific research, and other fields.

 Product Features

Stable and reliable portable solution.

Small volume, light weight, only 6 kilogram.

Easy to operate, can be easily grasped by non technican.

Built-in USB interface, Transfer data to the computer directly.

Can implement rapid detection of no destruction on onsite samples.

High accuracy detection, close to the normal analysis accuracy of lab.

A variety of power supply methods, 19V DC and built-in lithium battery.

Rapid analysis, synchronously measure multiple indexes within 30 seconds.

Built-in standard substance, has automatic diagnosis and fault prompts functions.

Built-in strong storage devices, achieve the analytical data and spectrogram   storage.

Configure  RIMP  software  with  instrument , can  implement  upload and download of data, edit and output analytical report, realize network  long  distance  control.

Abundant  measurement  accessories, can realize different sample analysis, convenient to change probes .

Abundant Measurement Accessories

Many kinds of measurement modes can be achieved by connecting the probes and accessories of different types.

(1) The light source plane diffuse reflection probe is applicable to diffuse reflection measurement modes, can measure the flake, pellet, pasty, powder sample, such as no damage measurement in fruit, plastics, textiles, tobacco etc.

(2)  The optical fiber diffuse reflection probes is applicable to diffuse reflection and permeable reflection measurement mode, diffuse reflection is mainly applied in single pellet sample measurement, such as onsite no destruction measurement of fruit, meat,etc;  Permeable measurement is mainly applied in transparent liquid sample measurement,such as onsite measurement of edible oil,fuel etc

(3) Cell rack, can achieve permeable measurement modes, it is mainly applied in liquid sample measurement.

Performance parameters
