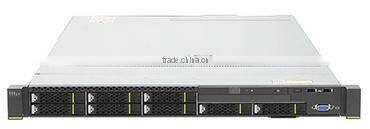

Original Quidway HUAWEI DDR4 Intel Database Server RH1288 V3 With 2 CPU

• Up to 16 DDR4 DIMM slots (8 DIMMs per processor) for installing either RDIMMs or LRDIMMs.
• 16 x 16 GB RDIMMs for two processors, with a maximum memory capacity of 256 GB
• 16 x 32 GB LRDIMMs for two processors, with a maximum memory capacity of 512 GB
• Maximum memory speed: 2133 MHz
• Data protection measures: ECC, memory mirroring, Single Device Data Correction (SDDC), memory sparing, and lockstep

• The RH1288 V3 supports the following hard disk configurations:

  • RH1288 V3 with 8 hard disks: supports a maximum of eight 2.5-inch SAS HDDs, SATA HDDs, or SSDs.
  • RH1288 V3 with 4 hard disks: supports a maximum of four 3.5-inch SAS or SATA HDDs.
• Hard disks are hot-swappable.
• The server supports RAID 0, 1, 10, 1E, 5, 50, 6, and 60. It protects cache data from power failures, and supports RAID state migration, RAID configuration memory, self-diagnosis, and web-based configuration.
• The mainboard can be configured with a SAS card or SAS RAID controller card (with a maximum of 2 GB cache) to improve hard disk storage performance and ensure user data security.
• The RAID controller card does not occupy a standard PCIe slot, improving system scalability.

• The RH1288 V3 supports a maximum of two PCIe 3.0 x16 slots:PCIe slots can house Huawei's proprietary PCIe SSDs to improve I/O performance for search, cache, and download services.
  • One full-height half-length or full-height 3/4-length standard PCIe card on riser card 1(default configuration)

    The server does not support a built-in RAID controller card when it is configured with a full-height 3/4-length standard PCIe card.

  • One half-height half-length standard PCIe card on riser card 2
• PCIe slots can house K2000 and NVS 315 graphics processing units (GPUs).

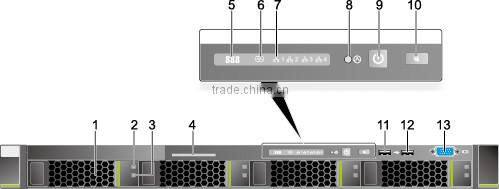

• Two USB 2.0 ports and one DB15 VGA port on the front panel (the server supports up to eight 2.5-inch or ten 3.5-inch hard disks)

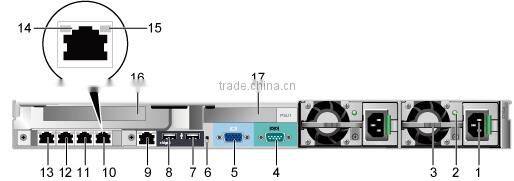

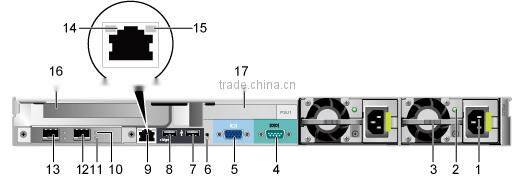

• Two USB 3.0 ports, one DB15 VGA port, one DB9 serial port, and one RJ45 system management port on the rear panel
• One internal USB 3.0 port, two Mini SSD (SATA DOM ) ports, one dual-SD card port for built-in system management software, and one optional internal SD card port for iBMC

Five hot-swappable fan modules, tolerating the failure of a single fan. Each fan module consists of two counter-rotating fans.

• 460 W AC Platinum PSU, supporting 240 V HV DC
• 750 W AC Platinum PSU, supporting 240 V HV DC
• 750 W AC Titanium PSU
• 1200 W PSU, supporting 380 V HV DC
• 800 W PSU, supporting -48 V DC or -60 V DC

• Power-on password
• Administrator password
• Front bezel

The system mainboard integrates the display chip and provides 32 MB display memory. The maximum resolution is 1920 x 1200 at 60 Hz with 16 M colors.
