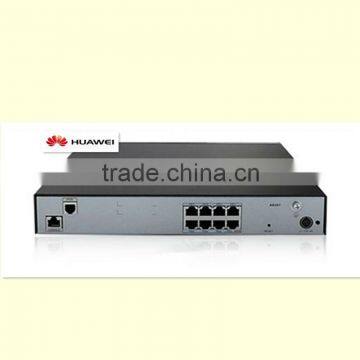

huawei IMS NGN wireless router AR207 3G wifi

FOB Price

US$ 200 - 1,000 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Wireless
Application	Enterprise	Function	Firewall, QoS, VPN, Other, Firewall, QoS, VPN, ACL,ARP security,ICMP attack defense, URPF, CPCAR
LAN Ports	8	WAN Ports	Other, 1 x ADSL2+ Annex A/M
Certification	UL/GS/CE/CB/RoHS/WEEE/FCC	Brand Name	HUAWEI
Model Number	AR207	Place of Origin	Guangdong, China

Product Description

Huawei’s next-generation routers, the AR 150 and AR 200 series are designed for enterprise branch offices and small businesses, delivering a comprehensive set of services, including routing, switching, voice, security, and wireless access.
The AR 150 and AR 200 series are fixed interface routers that provide a comprehensive platform for a variety of network topologies, including IMS, NGN, WAN and PSTN. The AR 150 and AR 200 also employ embedded hardware encryption for security as well as a voice Digital Signal Processor (DSP) for voice services.

The AR 150 and AR 200 series are fixed interface routers that provide a comprehensive platform for a variety of network topologies, including IMS, NGN, WAN and PSTN. The AR 150 and AR 200 also employ embedded hardware encryption for security as well as a voice Digital Signal Processor (DSP) for voice services.

Item	AR207
Hardware
Forwarding performance(64 Byte)	450 Kpps/300 Kpps
Forwarding performance(with services)	150 Mbps/100 Mbps
Fixed WAN ports	1ADSL2+ Annex A/M,1FE(the interface LAN 0 of which can be used as one WAN interface)
Fixed Ethernet switching ports	8 x FE/ 4 x FE
Fixed voice ports
USB 2.0 ports	1
Serial auxiliary/console ports	1
Memory size (default/maximum)	512 MB
Flash memory (default/maximum)	512 MB
Maximum power	36W/24 W
POE power
Power supply (AC)	100 V to 240 V
Frequency	50/60 Hz
Dimensions (H x W x D)	44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)
Operating temperature	0°C to 40°C
Relative humidity	5% to 90% (non-condensing)
Software
Basic feature	DHCP server/client/relay, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, TCP, UDP, ARP, Sub interface management
WAN Standards compliance	ITU-T 992.1 G.DMT ITU-T 992.3 ITU-T 992.5
WAN Transmission rate	ADSL full rate mode (ITU-T 992.1 G.DMT): a downstream transmission rate of 8 Mbit/s and an upstream transmission rate of 1024 kbit/s ADSL2 full rate mode (ITU-T 992.3): a downstream transmission rate of 12 Mbit/s and an upstream transmission rate of 1024 kbit/s ADSL2+ full rate mode (ITU-T 992.5): a downstream transmission rate of 24 Mbit/s and an upstream transmission rate of 1024 kbit/s
Voice	RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP
WLAN(AC)	AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n),WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 unicast routing	Routing policy, static route, RIP v1/v2, OSPF, IS-IS, BGP
IPv6 unicast routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
Multicast	IGMP version1/2/3, PIM SM, PIM DM, MSDP
VPN	IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN
QoS	Diffserv mode, Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), HQoS
Security	ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI
Management and maintenance	Upgrade management, device management, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, NetConf, CLI

Deployment Scenarios
