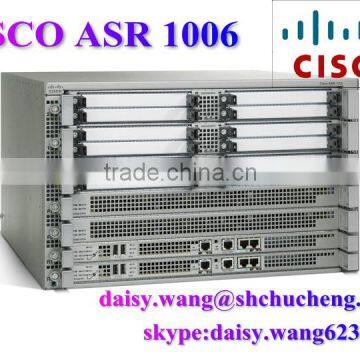

Cisco ASR 1006 Router

GENERAL

Device Type

Modular expansion base

Enclosure Type

Desktop - modular - 6U

Connectivity Technology

Wired

Compliant Standards

CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1

EXPANSION / CONNECTIVITY

Expansion Slots

12 (total) / 12 (free) x expansion slot
2 (total) / 2 (free) x expansion slot
2 (total) / 2 (free) x processor board

Installed Modules Qty (Max)

14 (max)

POWER

Power Device

Internal power supply

Power Redundancy

Yes

Installed Qty

2 (installed) / 2 (max)

Voltage Required

AC 120/230 V ( 50/60 Hz )

MISCELLANEOUS

Rack Mounting Kit

Included

DIMENSIONS & WEIGHT

Width

43.7 cm

Depth

55.6 cm

Height

26.7 cm

ENVIRONMENTAL PARAMETERS

Min Operating Temperature

5 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 90%

COMPATIBILITY INFORMATION

Designed For

P/N: ASR1006, ASR1006=

Cisco ASR 1002

Cisco ASR 1004

Cisco ASR 1006

Chassis

Size: 2 rack units (2RU)

DC power (maximum): 590W

AC power (maximum): 560W

Scalable to 10 Gbps

Software failover

Size: 4RU

DC power (maximum): 1020W

AC power (maximum): 960W

Scalable to 40 Gbps

Software failover

Size: 6RU

DC power (maximum): 1700W

AC power (maximum): 1600W

Scalable to 40 Gbps

Hardware failover

Forwarding cards

One 5-Gbps Cisco ASR 1000 Series ESP (ESP5)

(part number ASR1000-ESP5) or one 10-Gbps Cisco ASR 1000 Series ESP (ESP10)

(part number ASR1000-ESP10) or one 10-Gbps Cisco ASR 1000 Series non crypto ESP (ESP10-N) ( part number ASR1000-ESP10-N)

4-8 millions of packets per second (Mpps)

5-Gbps forwarding

One Cisco ASR 1000 Series ESP10 (ASR1000-ESP10)

or

one Cisco ASR 1000 Series non crypto ESP (ASR1000-ESP10-N)

or

One Cisco ASR 1000 Series ESP20 (ASR1000-ESP-20)

16 Mpps

20-Gbps forwarding

One or two Cisco ASR 1000 Series ESP10s (ASR1000-ESP10)

or

one Cisco ASR 1000 Series non crypto ESP (ASR1000-ESP10-N)

or

One or two Cisco ASR 1000 Series ESP20s (ASR1000-ESP20)

1 + 1 redundancy

16 Mpps

20-Gbps forwarding

Route processor

Integrated in the chassis

4-GB memory

One Cisco ASR 1000 Series Route Processor 1 (RP1)

(ASR1000-RP1)

Or

One Cisco ASR 1000 Series Route Processor 2 (RP2)

(ASR1000-RP2)

2- or 4-GB memory

Optional 40-GB hard disk drive (RP1 only)

Optional 80-GB hard disk drive (RP2 only)

One or two Cisco ASR 1000 Series RP1s

(ASR1000-RP1)

Or

One Cisco ASR 1000 Series Route Processor 2 (RP2)

(ASR1000-RP2)

1 + 1 redundancy

2- or 4-GB memory

Optional 40-GB hard disk drive

(RP1 only)

Optional 80-GB hard disk drive (RP2 only)

SPA Interface Processor (SIP)

Integrated: 3 SPA slots

Up to two Cisco ASR 1000 Series SPA Interface Processors (SIPs)

(ASR1000-SIP10)

8 SPA slots

Up to three Cisco ASR 1000 Series SIPs

(ASR1000-SIP10)

12 SPA slots

Software

Cisco IOS XE Software

Minimum release: 2.1
Based on Cisco IOS Software Release 12.2SR

Cisco IOS XE Software

Minimum release: 2.1
Based on Cisco IOS Software Release 12.2SR

Cisco IOS XE Software

Minimum release: 2.1
Based on Cisco IOS Software Release 12.2SR
