Huawei FTTH GPON ONU/ONT EchoLife HG8110 with 1POTS+1GE
- 200 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
Fusion Splicer Kit CCIT DVP-740 Core Alignment With Fiber Cleaver
-
Mini FTTX Fusion Splicer DVP-740 convenient for all kinds of fibers
-
New design FTTH Fusion Splicer DVP 740
-
Fusion Splicer DVP-740 with 4.3 inch Color LCD monitor
-
New design Optical fiber fusion splicer DVP-750
-
Brand New Digital Single optical Fiber Fusion splicer with Cleaver DVP-750
Product Details
| Place of Origin | Guangdong, China | Brand Name | Huawei | |
| Model Number | HG8110 |
Product Description

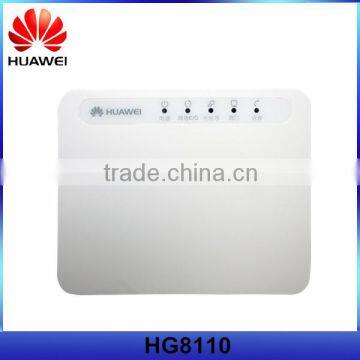

Huawei FTTH GPON ONU/ONT EchoLife HG8110 with 1POTS+1GE
The Echo Life HG8110 is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8110 provides one POTS port and one GE/FE auto-adapting Ethernet port. The HG8110 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
GPON features
1) Class B+ optical module
2) Security authentication mode: SN, password or SN+password
3) Upstream/downstream FEC
4) GEM port mapping mode: VLAN, 802.1p, VLAN+ 802.1p, IPToS,physical port
Voice features
1)SIP and H.248 protocols
2)Media stream and signaling stream separation
Multicast features
IGMP V2&V3 snooping
Ethernet features
1) VLAN filtering and VLAN transparent transmission
2)VLAN N:1 aggregation and VLAN 1:1 translation
Maintenance features
1) Local management using Web and remote management using OMCI
2) Optical power monitoring
3) 802.1ag Ethernet OAM
4) Loop–line test of POTS ports, call emulation
Reliability features
1) Dual systems for software protection
2) Type B protection and rogue ONT detection
3)Lithium battery backup and backup battery monitoring
Green engery-saving features
1) Dynamic power consumption adjustment
2) With a backup battery, the guaranteed services can be selected flexibly
Port: 1POTS+1GE.
Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports and call emulation initiated by the NMS.
High speed forwarding: GE line rate forwarding.
Applications & Benefits
High-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for FTTH deployment.
Plug-and-play makes service provisioning easier and more quickly.
Abundant remote diagnosis helps to locate failure more quickly and reduce OPEX.
Figure 1 Ports on the rear panel of the HG8110
Table 1 Descriptions of the ports on the rear panel of the HG8110
Port and Button | Function |
|---|---|
OPTICAL | Indicates the optical port. The optical port is equipped with a rubber plug and is connected to an optical fiber for upstream transmission. The type of the optical connector connected to the OPTICAL port is SC/APC. |
LAN | Indicate auto-sensing 10/100/1000M Base-T Ethernet ports (RJ-45), used for connecting to PCs or IP set-top boxes (STBs). |
TEL | Indicate VoIP telephone ports (RJ-11), used for connecting to the ports on telephone sets. |
BBU | Indicates the external backup battery monitoring port, used for connecting to the backup battery for monitoring the battery. |
POWER | Indicates the power port, used for connecting to the power adapter or backup battery. |
Figure 2 Ports on the side panel of the HG8110
Table 2 Descriptions of the ports on the side panel of the HG8110
Port and Button | Function |
|---|---|
| Indicates the power button. It is used to power on or power off the device. |
RESET | Indicates the reset button. Press the button for a short time to reset the device; press the button for a long time (longer than 10s) to restore the device to the default settings and reset the device. |
Typical Network Applications
As a network terminal, the HG8010/HG8110/HG8240/HG8245/HG8247/HG8447 is deployed at the GPON access layer and connects home users and SOHO users to the Internet through optical upstream ports. On the local area network (LAN) side, the HG8010/HG8110/HG8240/HG8245/HG8247/HG8447 provides abundant hardware ports to meet various network requirements of home users and SOHO users.
Figure 3 Network topology of the HG8110
Table 3 Physical specifications
Item | HG8110 |
|---|---|
Dimensions (length x width x depth) | 143 mm x 115 mm x 30 mm |
Weight (including the power adapter) | About 250 g |
Overall system power supply | 11-14 V DC, 1 A |
Power adapter input range | 100-240 V AC, 50-60 Hz |
Maximum power consumption | 8W |
Temperature range | 0°C to +40°C |
Humidity range | 5%-95% (non-condensing) |
Trade terms: FOB,CIF,CFR,etc.
Price terms:L/C,D/P,T/T,Western Union,Paypal.
Payment terms:T/T in advance
Port: Shanghai
Lead time: waithin 5 working days after receipt of payment
Shipment:Express,Air,Sea
Sample availability: Yes(not free)
1) We can provide detail documents and remote help for device installation and configuration.
2) Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3) Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
