576ports for ADSL2+/VDSL/G.SHDSL IP DSLAM CCIPDM5000

DSL Compliant

• ADSL:
  • G.992.1 Annex A, G.992.3 Annex A, G.992.5 Annex A
  • G.992.1 Annex B, G.992.3 Annex B, G.992.5 Annex B

    Support G.992.3 and G.992.5 Spectral Mask

    Support Annex M and Annex L in G.992.3 and G.992.5

    Support EOC and Overhead Chanel Access

    Support the latency path function

    Support loop diagnostic function specifie

    Support the power management capability

    Support the capability of the Seamless Rate Adaptation (SRA) on-line

  • Dual end loop test
• SHDSL: G.991.2, G.991.2.bis
• VDSL2: G.993.2, G.994.1, G.997.1.

ATM traffic management

• 8 VPC/VCC per DSL port
• Support UBR, CBR, rt-VBR, nrt-VBR QoS
• Support ATM Forum TM 4.0 peak cell rate traffic
• Support downstream traffic shaping function per ATM PVC
• Support ATM F5 OAM cells for End-to-End Loop back test (ITU-T Rec. I.610)

Performance

• IEEE 802.1p CoS with priority
• Eight queues with packet priority scheduling (SPQ, WFQ)
• Support 256 multicast groups
• Support 384 copies for each multicast group
• The maximum channel zapping  time is 250 ms
• DSCP to 802.1p mapping

Security

• Port isolation
• IEEE 802.1x (Authentication)
• Rule-based packet filtering (L2 ~L4 ACL)
• MAC count limiting
• ARP broadcast filtering
• DHCP broadcast filtering
• DHCP snooping
• NetBiOS filtering
• IGMP filtering
• Anti IP/MAC address spoofing

VLAN

• 4096 IEEE 802.1Q compliant VLAN tagging
• Port-based VLAN
• VLAN stacking
• VLAN Bridge Function (multiple PVCs to one VLAN) (N:1)
• PVC and VLAN one to one mapping (1:1)
• VLAN Trunking (Single PVC join Multiple VLAN) (1:N)
• Support GVRP function

Traffic management

• Tunneling : PPPoE, MP encap. over ATM  (RFC 2684)
• STP : IEEE 802.1d, IEEE 802.1w, IEEE 802.1s
• IEEE 802.3ad (Link Aggregation Control Protocol)
• IP multicast forwarding
• IGMP v1, v2 snooping/proxy
• IGMP multicasting channel limiting
• DHCP Relay Option 82
• Multicast bandwidth control
• L2~L4 ACL
• IGMP group count / filtering profile

VoIP features

• Codes : G.711, G.726, G.729 A/B G.723.1
• Network signaling protocols : ITU-T H.248 v2, SIP v2 (RFC3261)
• RTP (RFC 1889)
• RTCP (RFC 1890)
• FAX/Modem pass through (T.38) via RTP
• Tone detection and generation (bi-directional)-RFC2833 RTP Payload for DTMF
• Echo cancellation and auto gain control ( G.165, G.168)
• VAD (voice activity detection)
• CNG (comfort noise generation)
• Caller ID generation and detection
• Supplementary services
  • Local dial available
  • Emergency call local route
  • Do not Disturb
  • Selective/Anonymous call rejection
  • Call waiting
  • Call hold
  • Call transfer (blind and attended transfer)
  • Call return and call back on busy
  • Off hook warning tone
  • Three way conference

Network management

• Local management through a craft terminal
• Web-based Management Interface
• In-band and out-of-band IP interface for management (SSH, SFTP)
• SNMP Management (through ZyXEL NetAtlas Access EMS)
  • SNMPv1/v2c/V3 agent/traps
  • Standard MIBs
    • RFC 1213 MIB II
    • ADSL Line MIB (RFC2662)/ Extension Line MIB(RFC 3440)
    • SHDSL Line MIB (RFC 3276)
    • VDSL line MIB (RF3728)
    • Bridge MIB/Extension MIB
    • RMON MIB (RFC 1757)

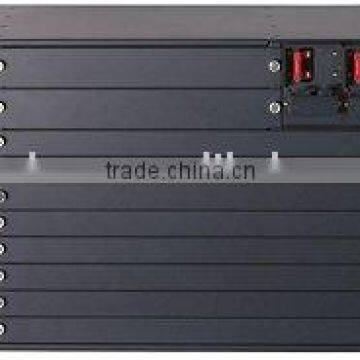

IES-5005M

• 5-slot rack mountable enclosure, 19" or 23" chassis
• 4 slots for DSL line termination cards
• 1 slots for management and switch cards
• 2 DC power input module and filter
• One FAN and dust filter module

AL1248G-51/ALC1272G-51

• Hot swappable 48-port/72-port ADSL2/ADSL2+ Annex A line card
• Maximum transmission rate up to 25Mbps/1.2Mbps for ADSL2+
• One mini-RJ11 console port
• One gigabit backplane
• Support G.992.3 and G.992.5 Spectral Mask
• Support EOC and Overhead Channel Access defined in G.992.3 and Rec.G.997.1
• Support the latency path function specified in G.992.3 and G.992.5
• Support Annex L and Annex M specified in G.992.3 and G.992.5
• Support loop diagnostic function specified in G.992.3 and G.992.5
• Support the power management capability specified in G.992.3 and G.992.5
• Support the capability of the Seamless Rate Adaptation (SRA) on-line configuration specified in G.992.3 and G.992.5

ALC1248G-53

• Hot swappable 48-port ADSL2/ADSL2+ Annex B line card
• Support Annex M and Annex L specified in G.992.3 and G.992.5
• Maximum transmission rate up to 25Mbps/1.2Mbps for ADSL2+
• One mini-RJ11 console port
• One gigabit backplane

SLC1248G-22

• Hot swappable 48-port SHDSL/SHDSL.bis line card
• Symmetric transmission rate of 4.096 Mbps (2-wire),8.192Mbps(4-wire) and 16.384Mbps (8-wire)
• One mini-RJ11 console port
• One gigabit backplane

MSC1000G

• Failover-enabled Network Termination Card (IES-5000 only)
• Embedded 24G, non-blocking full duplex switching fabric
• Two 1000M interface modules (SFP + copper) for subtending
• Two 1000 Base SX/LX/EX/ZX (mini-GBIC, SFP) interface for uplink
• One RS232 (DB-9) serial console port
• One 10/100M out-of-band Mgmt interface
• One external alarm IO port

• IES-5000M
  • Dimension : 440 (W) x 250 (D) x 151.9 (H) mm
  • Weight : 5Kg
• ALC1272G-51
  • Dimensions : 390.6(W) x 240 (D) x 13.8 (H) mm
  • Weight : 0.7 Kg
• ALC1248G-51
  • Dimension : 390.6 (W) x 240 (D) x 13.8 (H) mm
  • Weight : 0.5Kg
• ALC1248G-53
  • Dimension : 390.6 (W) x 240 (D) x 13.8 (H) mm
  • Weight : 0.5Kg
• SLC1248G-22
  • Dimension : 390.6 (W) x 240 (D) x 13.8 (H) mm
  • Weight : 0.5Kg
• MSC1000G
  • Dimension : 267.4 (W) x 240 (D) x 37.55 (H) mm
  • Weight : 0.4Kg

Environmental Specifications

• Operating temperature : -40^oC ~ 70^oC
• Storage temperature : -40^oC ~ 85^oC
• Humidity : 5~95% (non-condensing)
• Power Supply : -48V DC
• Power Consumption :
  • IES-5000M : 47W
  • MSC1000G : 19W
  • ALC1272G-51 : 95W
  • ALC1248G-51/53 : 69W
  • VLC1224G-41 : 74W
  • VOP1248G-61 : 84W
  • SLC1248G-22 : 47W

Certification

• CE
• UL 60950, CSA 60950
• FCC part 15 Class A
• ITU-T K.20
• ETSI 300 019.
• EN55022 class A
• EN55024 class A
• ETSI 300 386
• NEBS Level 3 compliance
