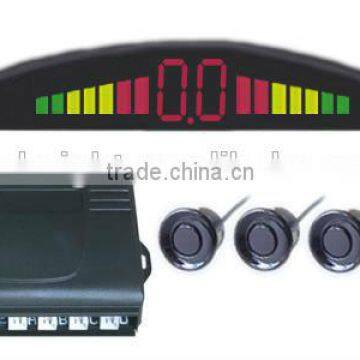

LED display reverse parking sensor

Specifications

Parking sensor Feature:

1. Three-color digital LED display with buzzer built-in

2. "BiBi" audible warning buzzer in 3 steps

3.  Detachable sensor with waterproof socket connector (optional)

4. Digital meter distance mode, feet display available

5. 4-directional indicator of left and right

6. 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting

7. Heavy rain-proof & all weather design

8. High quality and easy to install

9. All spare parts are compatible

10. Different sensors & colors optional (stick-on & insert-in)

Parking sensor Technical Specification:

1. Rated voltage: 12V

2. Operating voltage: 10 ~ 28V DC

3. Rated current: 10mA ~ 150mA

4. Detection distance: 0.3 ~ 2.5m for rear  0.3 ~ 1.2m for front

5. Ultrasonic frequency: 40KHz

6. Working temperature: -30oC ~ +80oC

7. Warning: 80dB

8. Display size: 79 x 28 x 20mm 9. Full-range technical support

Package including:

1x Main Control Box 1x LED Display Indicator 4x Parking Sensors with 2.3M Line 1x Hole Saw 1x Power Cable 2x Double Side Sticker 1x User Manual
