2014 Hot Sale Lesite 1600W Hdpe Geomembrane Welding Machine

Specifications

                                Welding machine price list

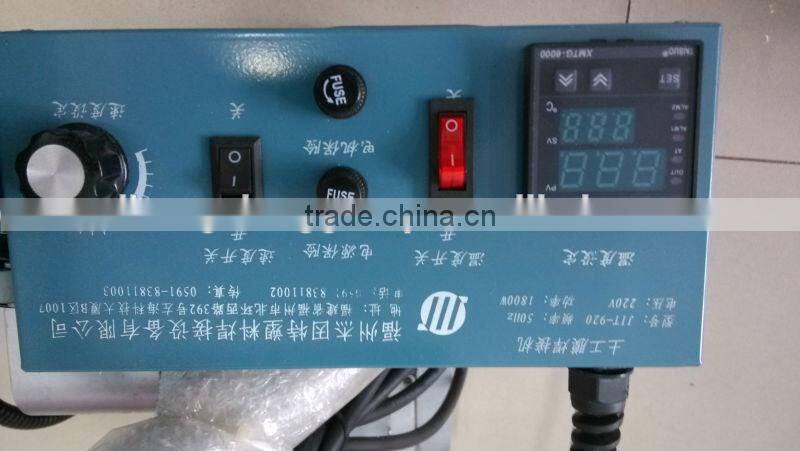

The control of this series of welding machine adopts PID automatic thermostatic control with high

control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and

speed regulation circuit, driven by DC servo motor, with great output torque and the operating is

stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable

road load. Also this series of welding machine is stable in performance despite of external

temperature and voltage variation.

It can weld geomembrane of various thickness and are applicable for welding of all thermal-fused

material such as LDPE, PVC, HDPE, EVA, PP and the like.

This series of welding machine is excellent in performance and easy for operating, with high welding

speed and good work quality. It is extensively used in engineering projects such as expressways,

tunnels, reservoirs, waterproof of construction and so on

Voltage (V): 220V

Frequency (Hz): 50Hz

Power (P): 1800W

Welding speed (V): 0.5-5m/min

Heating temperature (T): 0-450°C

Thickness of material to be welded: 1mm-3mm

Overlap width: 120mm

Welding width: 14mm×2, interior cavity 16mm

 Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine

 Weight: 13Kg
