FN7-12DR 11kv Load Break Switch 12kv Load Break Switch
- shanghai or ningbo
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


FN12-12 FN12-12DR 11kV 12kV Load Break Switch
 -


FZN21-12D/T630-20 Type & FZRN21-12D/T125-31.5 Type Indoor High-voltage Vacuum Load Switch and Combination Switchgear
 -


FN7-12 12KV Load Break Switch 11KV LBS
 -


FN7-12 INDOOR HIGH VOLTAGE LOAD BREAK SWITCH WITH FUSE
 -


Outdoor Vacuum Load Switch FZW32-12 FZW32-40.5
 -


FKW18-12KV FKW18-40.5KV FKW18-35KV Outdoor Load Switch

Product Details
| Place of Origin | Zhejiang, China | Brand Name | hossin | |
| Model Number | FN7-12/630 FN7-12DR FN7-12 FN7 | Max. Current | 630 | |
| Max. Voltage | 12 |
Product Description

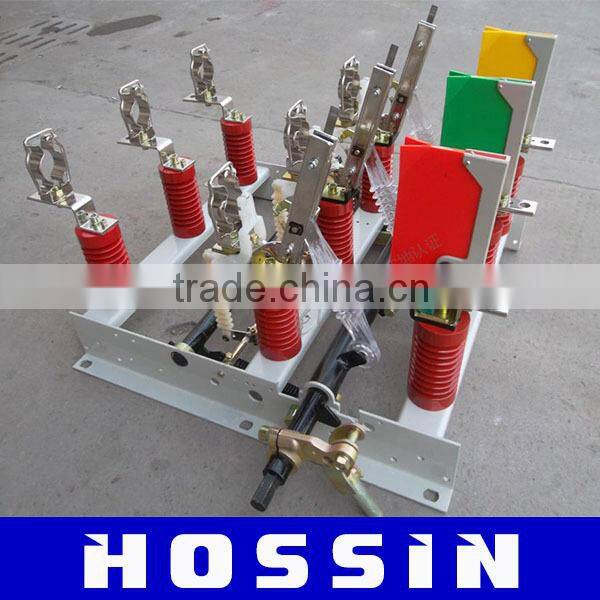

FN7-12DR Load Break Switch 11kv Load Break Switch 12kv load break switch

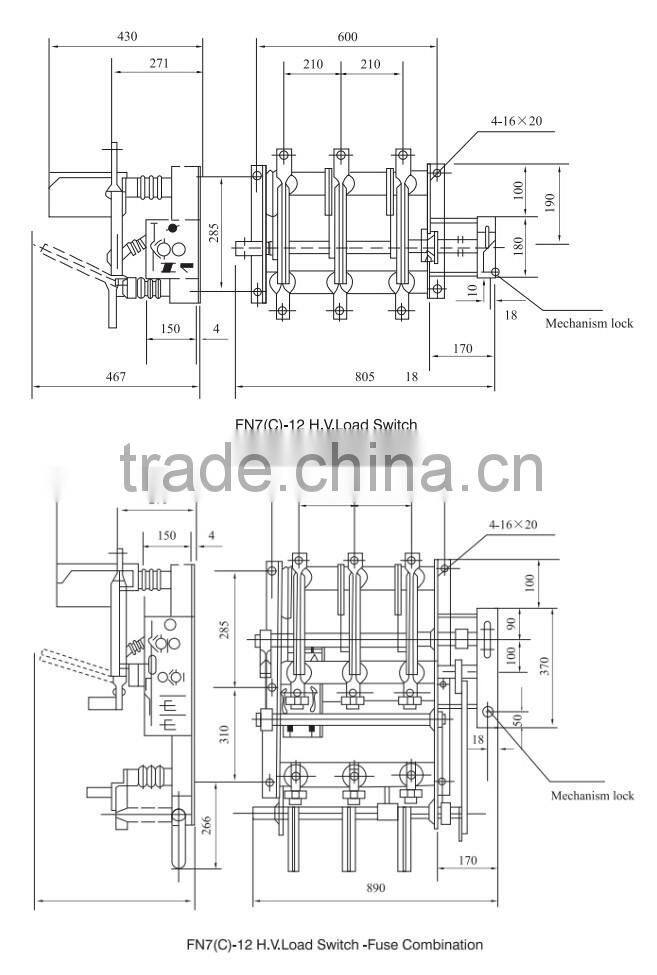

FN7-12DR is used for three-phase AC 5OHz 12KV power systems. They used for breaking load current and controlling short-circuit current. FN7(C)-12 type H.V load switch-fuse combination is based on the FN7-12 series H.V load switch, then put the operating mechanism on the side, as customer order.

1. The altitude does not exceed 1000m.
2. The ambient air temperatrue: Max:+40°c, Min:-25°c.
3. The relative humidity of air daily average=95%, monthly average=90%
4. The ambient air should not be obviously polluted by corrosivity and the flammability gas steam, etc
5. The working situation without frequent violent.

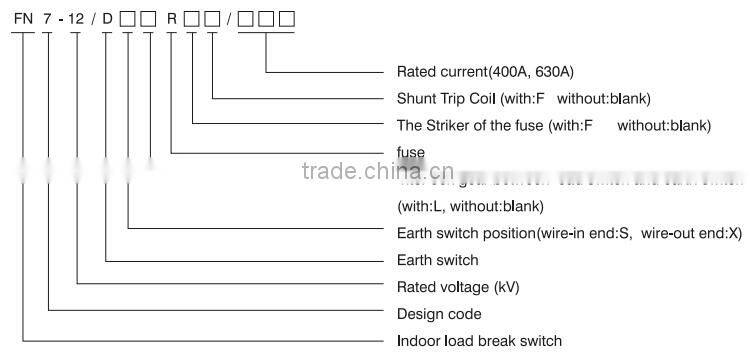

Classification  | Types  | DS  | DX  | L  | R  | RA  | F  |
Earth switch at the wire - in end  | Earth switch at the wire - out end  | Interlock device  | Fuse box  | Striking fuse box  | Off device by motor  | ||
Without tripper  | FN7-12  | -  | -  | -  | -  | -  | -  |
FN7-12DSL  | √  | -  | √  | -  | -  | -  | |
FN7-12DXL  | -  | √  | √  | -  | -  | -  | |
FN7-12R  | -  | -  | -  | √ | -  | -  | |
FN7-12DSLR  | √  | -  | √  | √ | -  | -  | |
FN7-12DXLR  | -  | √  | √  | √  | -  | -  | |
With striking tripper  | FN7-12RAF  | -  | -  | -  | -  | √ | √  |
FN7-12DSLRAF  | √  | -  | √  | -  | √ | √  | |
FN7-12DXLRAF  | -  | √  | √  | -  | √ | √  |
Rated voltage (KV)  | Insulation Level  | Rated current(A)  | 4S heatstabling current(KA)  | Machine stabling current [peak] (KA)  | Short-circuit controlling current(KA)  | |
1min power frequency withstand voltage (KV)  | Lighting impuslse resisting voltage [peak] (KA)  | |||||
12  | 42  | 48  | 400  | 12.5  | 31.5  | 31.5  |
48  | 85  | 630  | 20  | 50  | 50  | |
